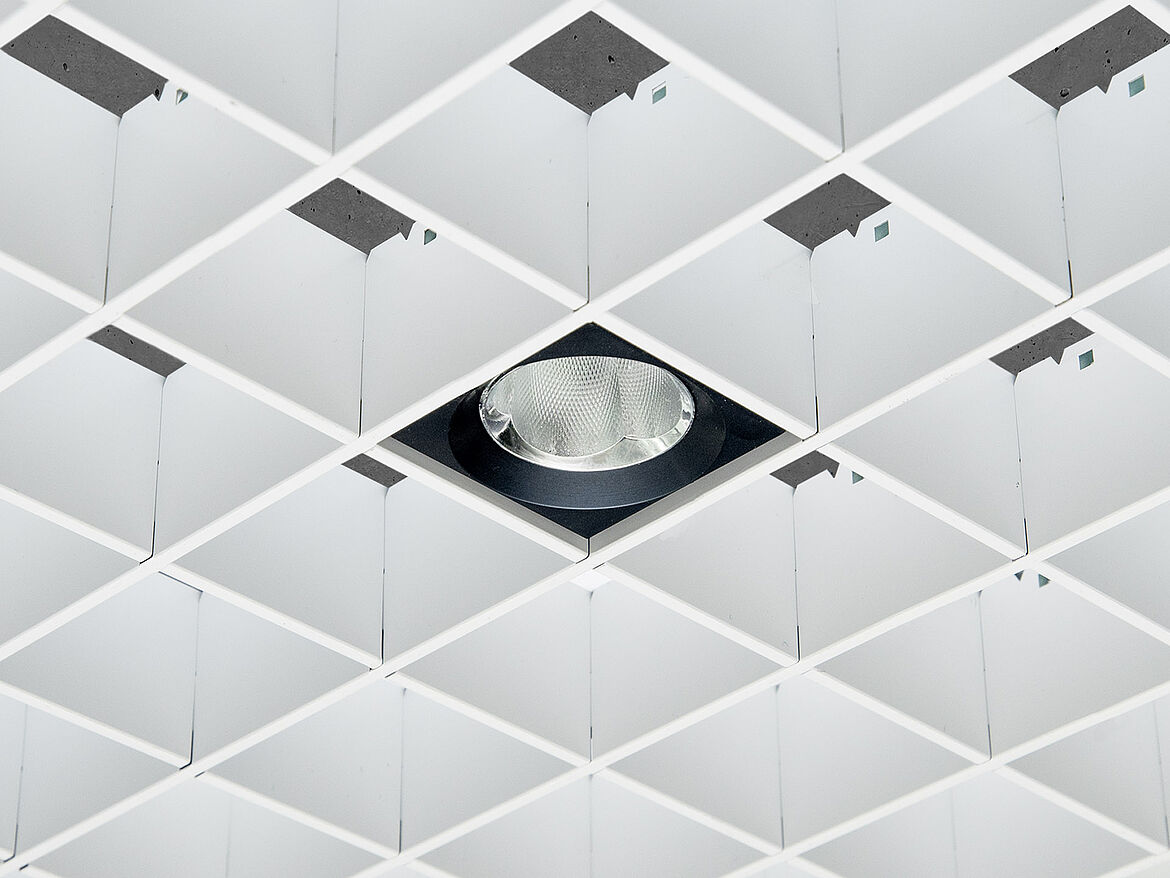

The PUNTEO-J60 is a compact, powerful luminaire that fits seamlessly into the GEO double blade louvre from a cell size of 60 x 60 mm while preserving the ceiling's characteristic geometry. The combination is impressive from a technical standpoint thanks to its simple and quick installation. The downlight can also be flexibly and without tools positioned in the louvre at any time as it is integrated into GEO without the need for module plates, enabling the lighting to be optimally adapted to changing room uses.
- The luminaire is available with different beam angles and light colours, including Tunable White.
- Each panel of the ceiling-lighting combination can be folded down individually.
- Building services, such as sprinklers, can be easily and discreetly integrated into the ceiling.
GEO + PUNTEO-J60
GEO open-cell ceiling details

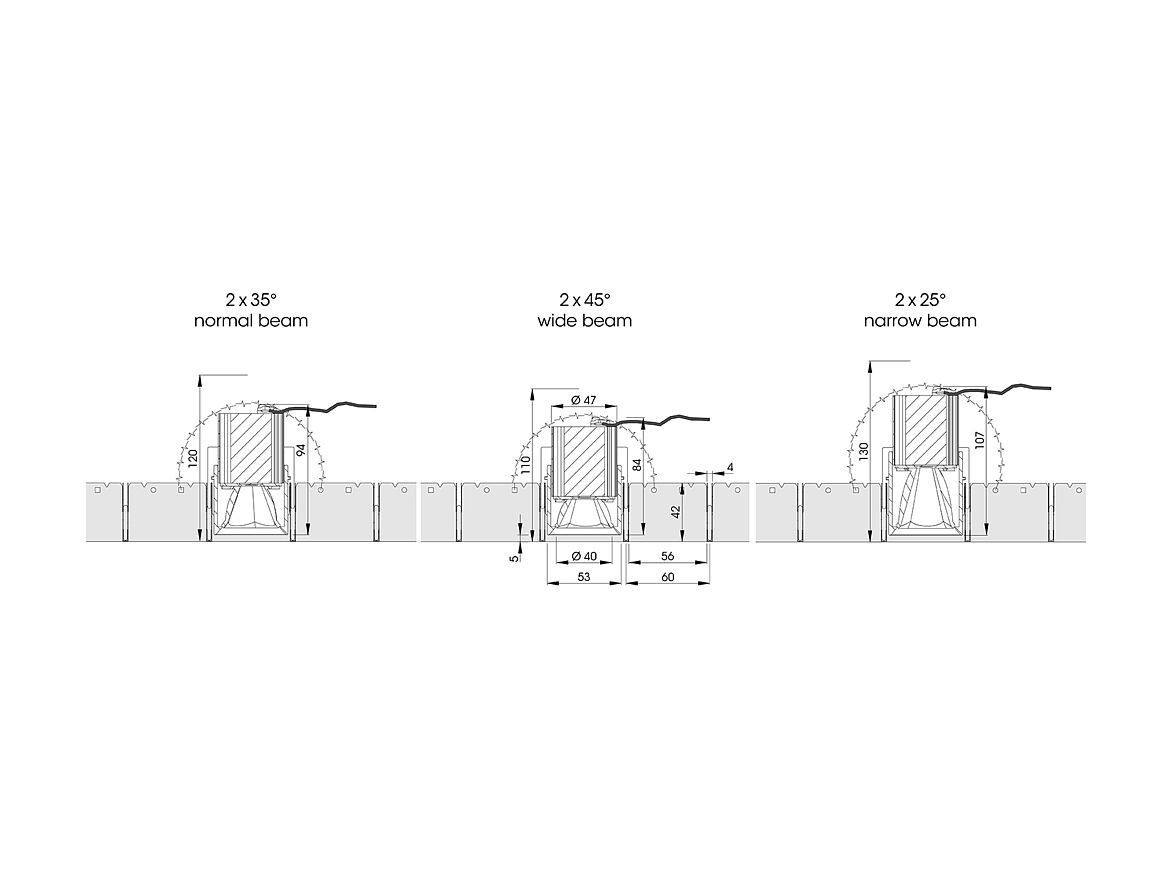

GEO4:
Web width: 4 mm
Cell size: 60 x 60 mm | 75 x 75 mm | 100 x 100 mm
Cell height: 42 mm

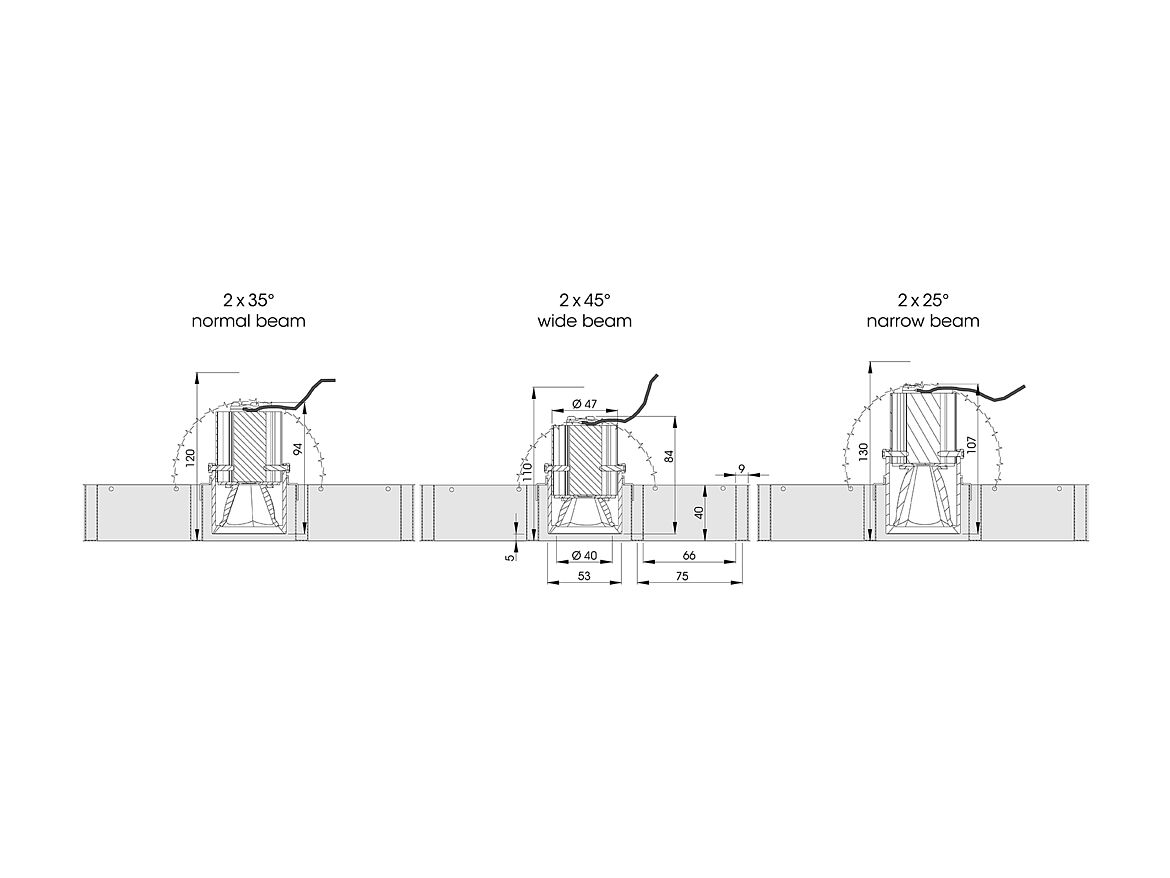

GEO9:
Web width: 9 mm
Cell size: 75 x 75 mm | 100 x 100 mm
Cell height: 40 mm

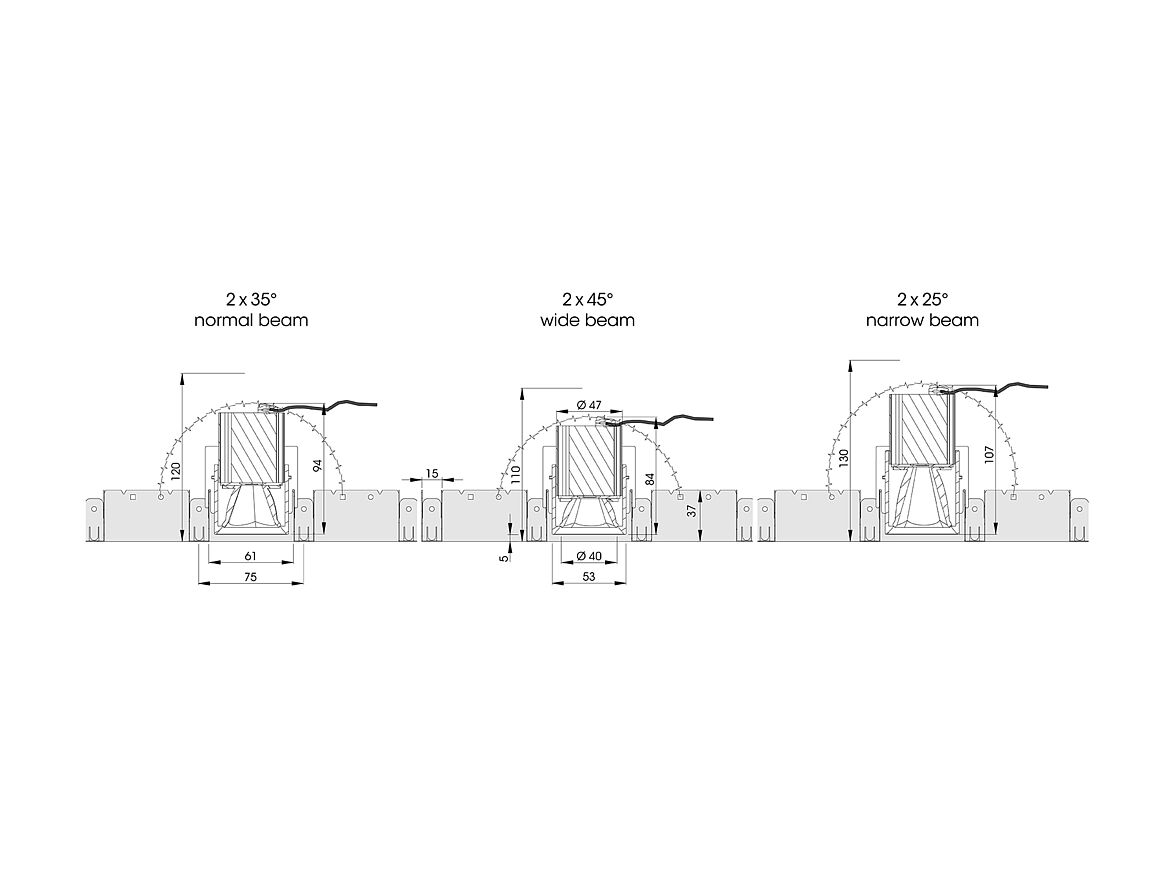

GEO15:
Web width: 15 mm
Cell size: 75 x 75 mm | 100 x 100 mm
Cell height: 37 mm
Material and surface:
Material: aluminium 0.8 mm
Louvre colour: white, black, RAL 9006, natural anodised. Other colours on request
PUNTEO-J60 luminaire details
Light distribution: 2 x 25° (narrow beam) | 2 x 35° (normal beam) | 2 x 45° (wide beam)
Light colour: 2700 K | 3000 K | 4000 K | Tunable White (CRI > 90)
Surface: black matt, anodised (standard) | RAL 9010 | RAL 9016 | Aluminium anodised
