The S7 RHOMBOS EXTERIOR rail channel system can be used in a variety of outdoor applications. The design of the expanded metal ceiling makes it particularly suitable for areas exposed to high wind suction and pressure, as well as high corrosion protection requirements.
- Easy to disassemble from below
- Face-end joint measuring 10 mm

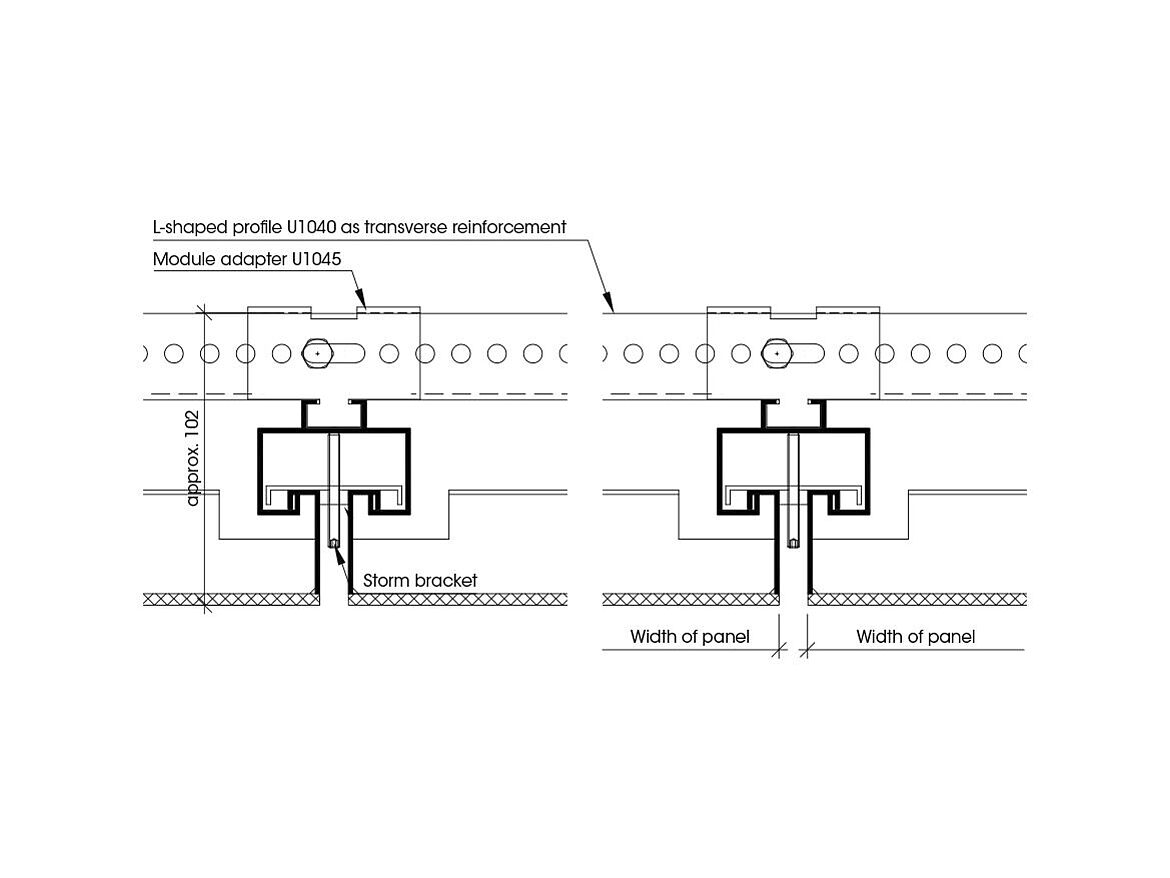

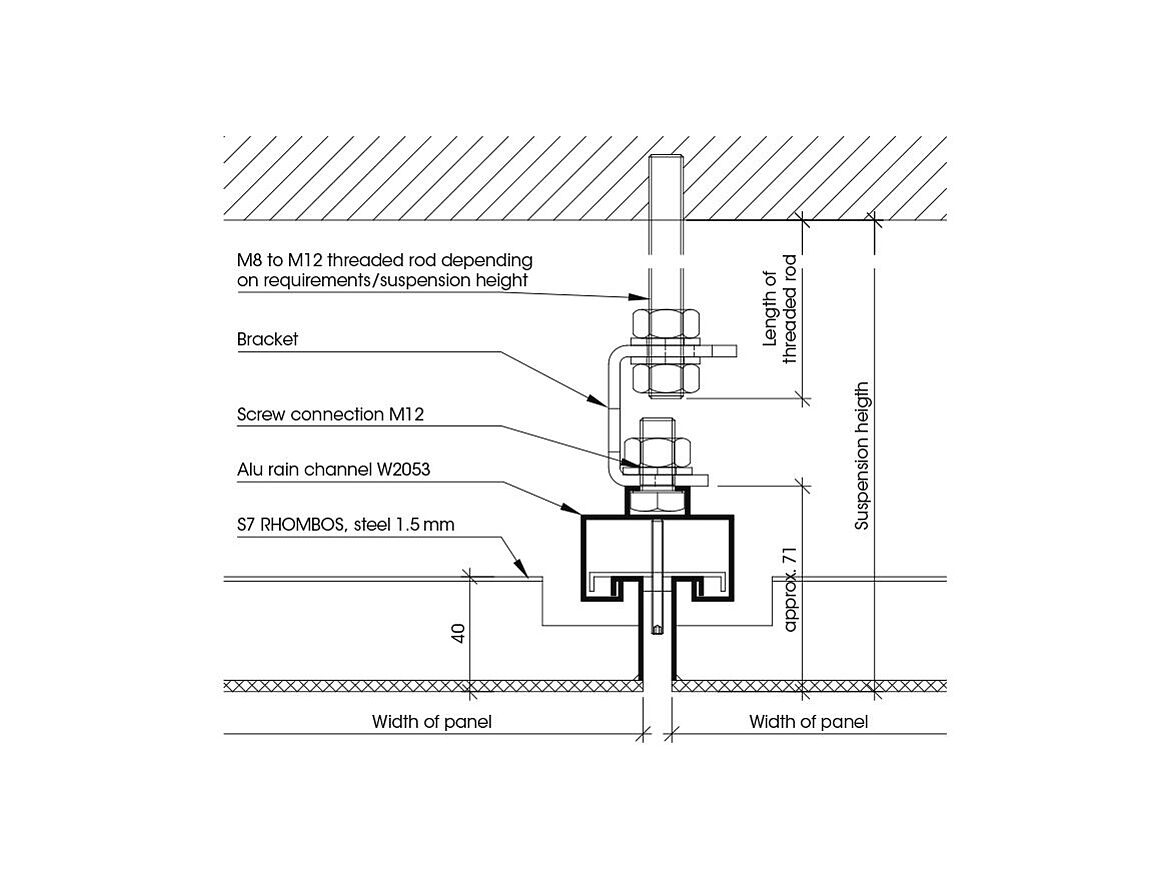

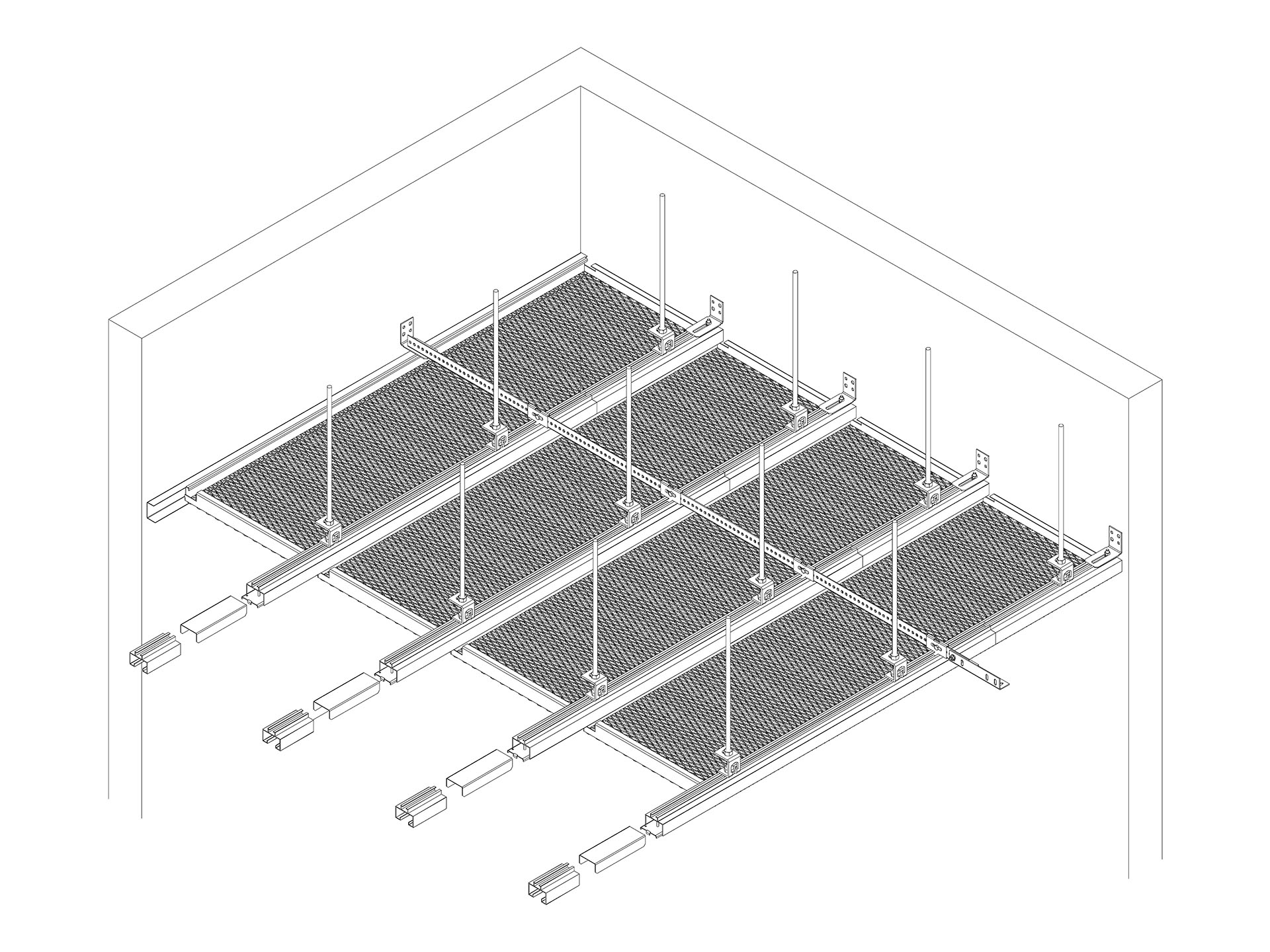

S7 RHOMBOS EXTERIOR rail channel system
Dimensions
Permissible load 0.5 kN/m² wind suction and wind pressure:
- Rectangular:
Maximum panel size: 2250 x 750 mm
Suspension W2053: every 900 mm
Maximum suspension height with M12 threaded rod: 600 mm - Square:
1150 x 1150 mm
Suspension W2053: every 800 mm
Maximum suspension height with M12 threaded rod: 600 mm
Permissible load 1.0 kN/m² wind suction and wind pressure:
- Rectangular:
Maximum panel size: 1800 x 600 mm
Suspension W2053: every 800 mm
Maximum suspension height with M12 threaded rod: 500 mm - Square = 950 x 950 mm; suspension W2053 every 600 mm and maximum Suspension height with M12 threaded rod = 500 mm
Permissible load 1.5 kN/m² wind suction and wind pressure:
- Rectangular:
Maximum panel size: 1500 x 500 mm
Suspension W2053: every 700 mm
Maximum suspension height with M12 threaded rod: 600 mm - Square:
750 x 750 mm
Suspension W2053: every 600 mm
Maximum suspension height with M12 threaded rod: 600 mm
Material and surface
1.5 mm thick steel.
Standard powder coating, white (RAL 9016 matt), layer thickness: 60 microns. Other powder coatings are possible.
