The PUNTEO-N 1x1 is a particularly efficient recessed luminaire that impresses with its excellent glare control, high light output and significant energy savings. With a cell size of 33.64 × 33.64 mm, the downlight can be integrated precisely into the TICELL-N open-cell ceiling, making the luminaire body virtually invisible (product finder). For a cell size of 60 × 60 mm, the modern PUNTEO-J60 downlight is ideal, as it can also be seamlessly integrated into the TICELL-N system. Thanks to their respective lighting technologies, both luminaires ensure uniform, efficient illumination and are suitable for a wide variety of room settings.

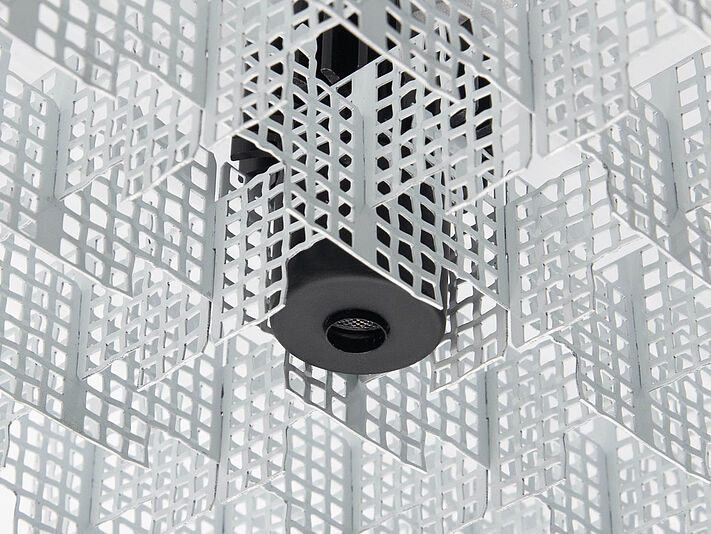

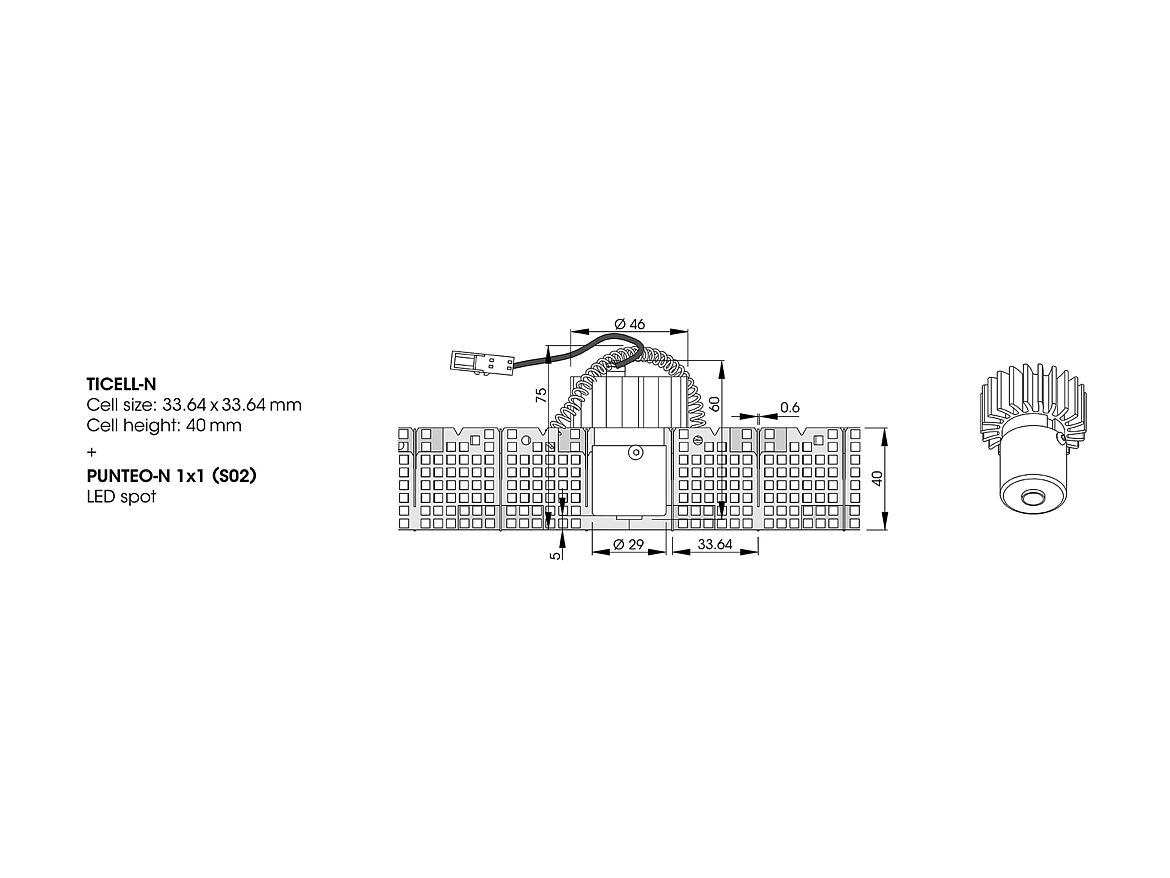

TICELL-N + round PUNTEO-N 1x1 (S02)
TICELL-N open-cell ceiling details
Cell
Cell size: 33.64 x 33.64 mm
Cell height: 40 mm
Material and surface
Aluminium 0.6 mm; surface strip-painted
Louvers: white, other colours on request.
PUNTEO-N 1x1 luminaire details
Light distribution: 2 x 20° (narrow beam) | 2 x 38° (wide beam)
Light colour: 2700 K | 3000 K | 4000 K | Tunable White (CRI > 90)
Surface: aluminium black anodized or painted white

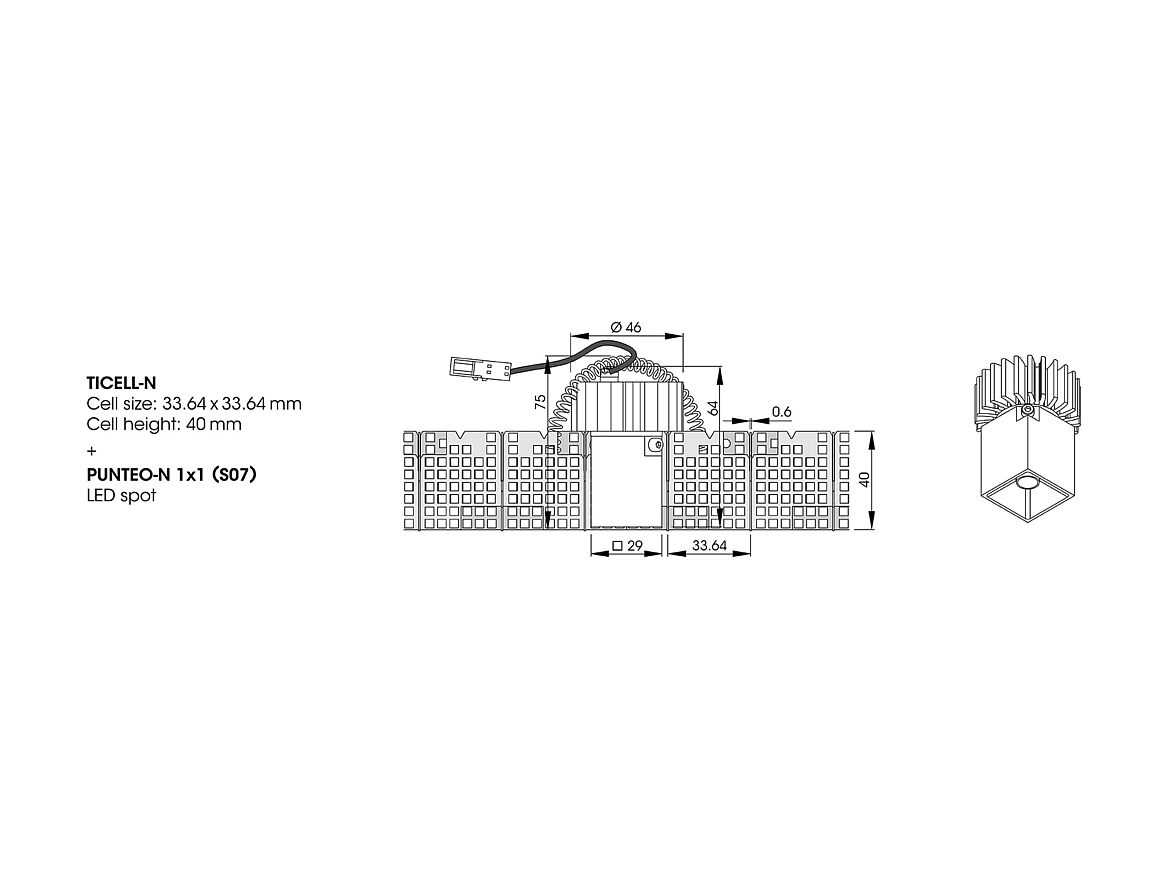

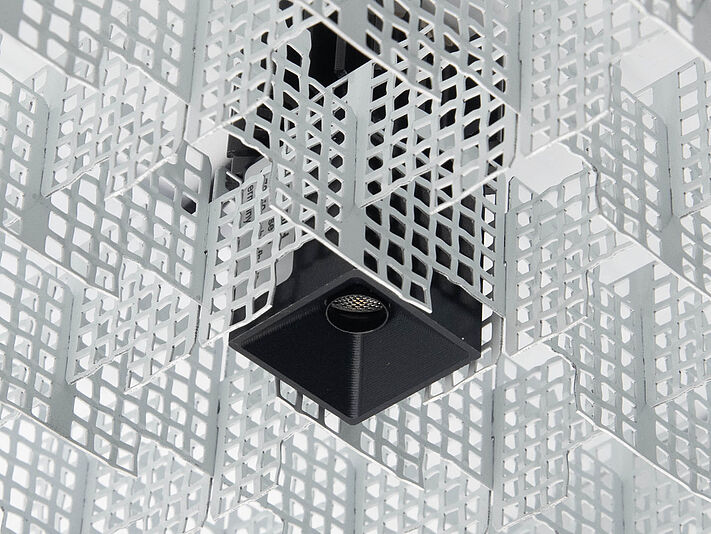

TICELL-N + square PUNTEO-N 1x1 (S07)
TICELL-N open-cell ceiling details
Cell
Cell size: 33.64 x 33.64 mm
Cell height: 40 mm
Material and surface
Aluminium 0.6 mm; surface strip-painted
Louvers: white, other colours on request.
PUNTEO-N 1x1 luminaire details
Light distribution: 2 x 20° (narrow beam) | 2 x 38° (wide beam)
Light colour: 2700 K | 3000 K | 4000 K | Tunable White (CRI > 90)
Surface: aluminium black anodized or painted white

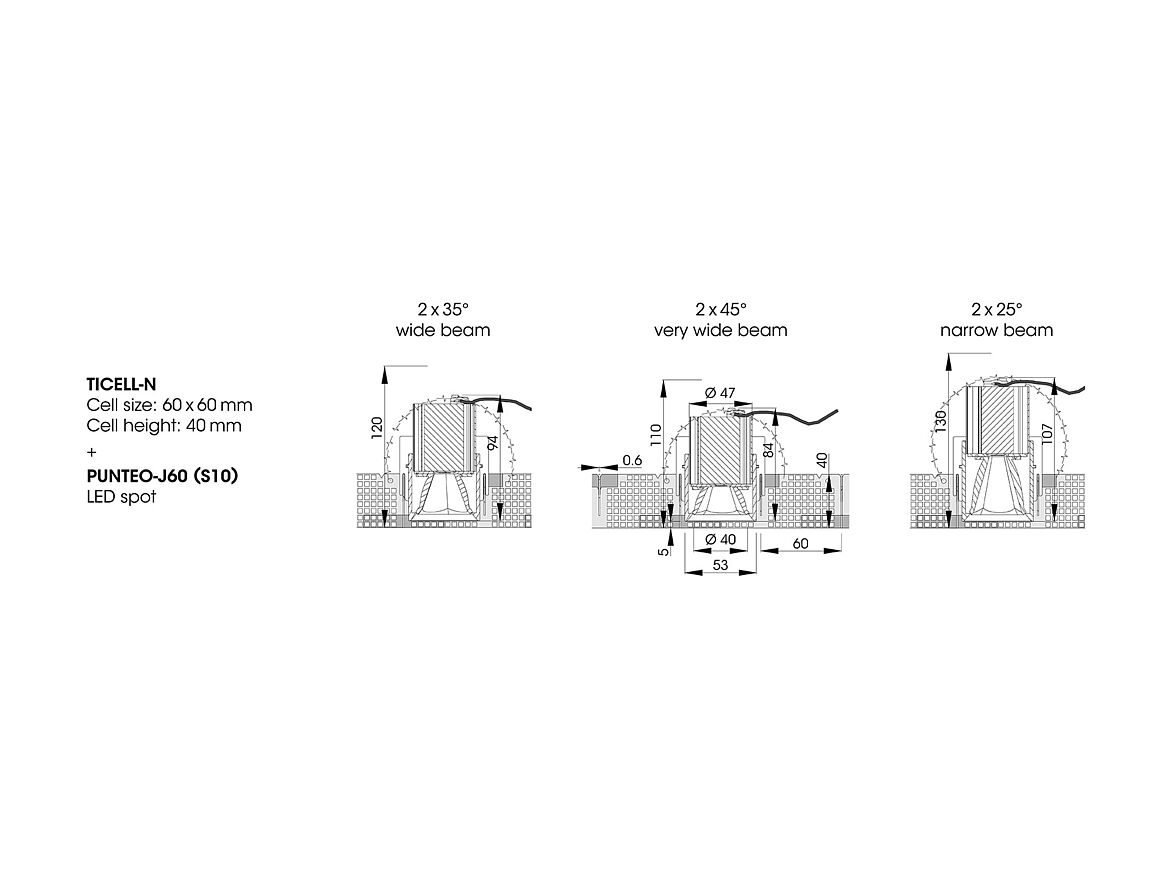

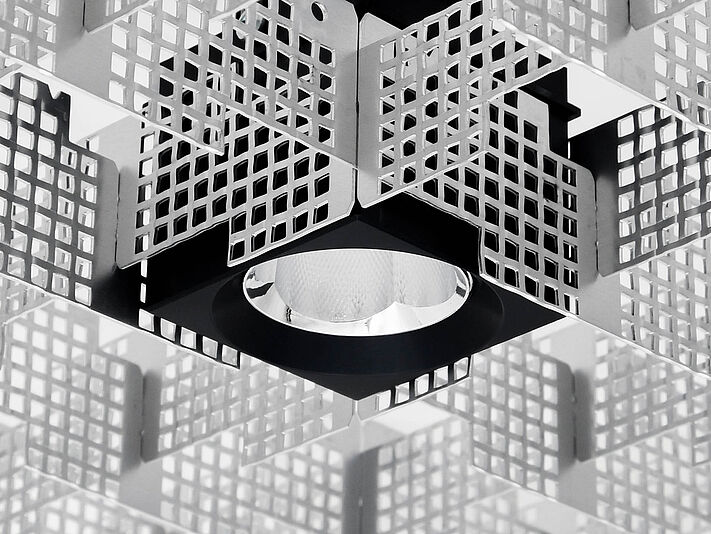

TICELL-N + PUNTEO-J60 (S10)
TICELL-N open-cell ceiling details
Cell
Cell size: 60 x 60 mm
Cell height: 40 mm
Material and surface
Aluminium 0.6 mm; surface strip-painted
Louvers: white, other colours on request
PUNTEO-J60 luminaire details
Light distribution: 2 x 25° (narrow beam) | 2 x 35° (normal beam) | 2 x 45° (wide beam)
Light colour: 2700 K | 3000 K | 4000 K | Tunable White (CRI > 90)
Surface: black matt, anodised (standard) | RAL 9010 | RAL 9016 | Aluminium anodised
