The PUNTEO-N 1x1 is a highly efficient recessed luminaire that impresses with its excellent glare control, maximum light output and high energy savings. The downlight can be neatly integrated into the open-cell ceiling TICELL with a cell size of 33.33 x 33.33 mm, making the luminaire body almost invisible (product finder). With a cell sie of 54.55 x 54.55 mm the modern PUNTEO-J60 downlight can be optimally integrated into the TICELL ceiling. Thanks to their lighting technology, both luminaires provide ideal, efficient illumination for a wide variety of room situations.

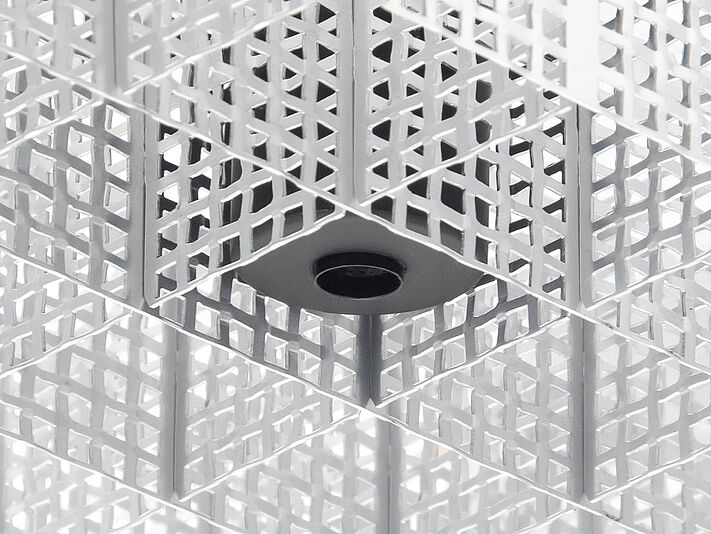

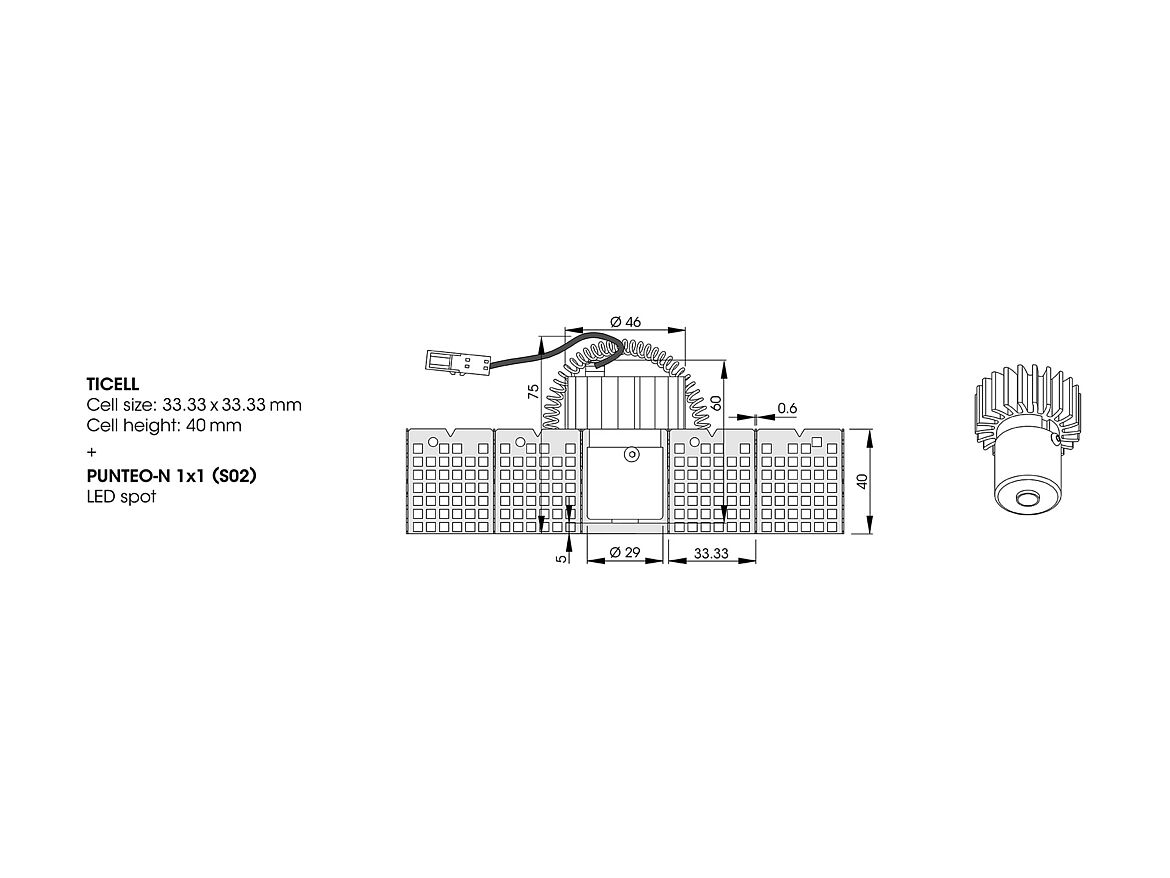

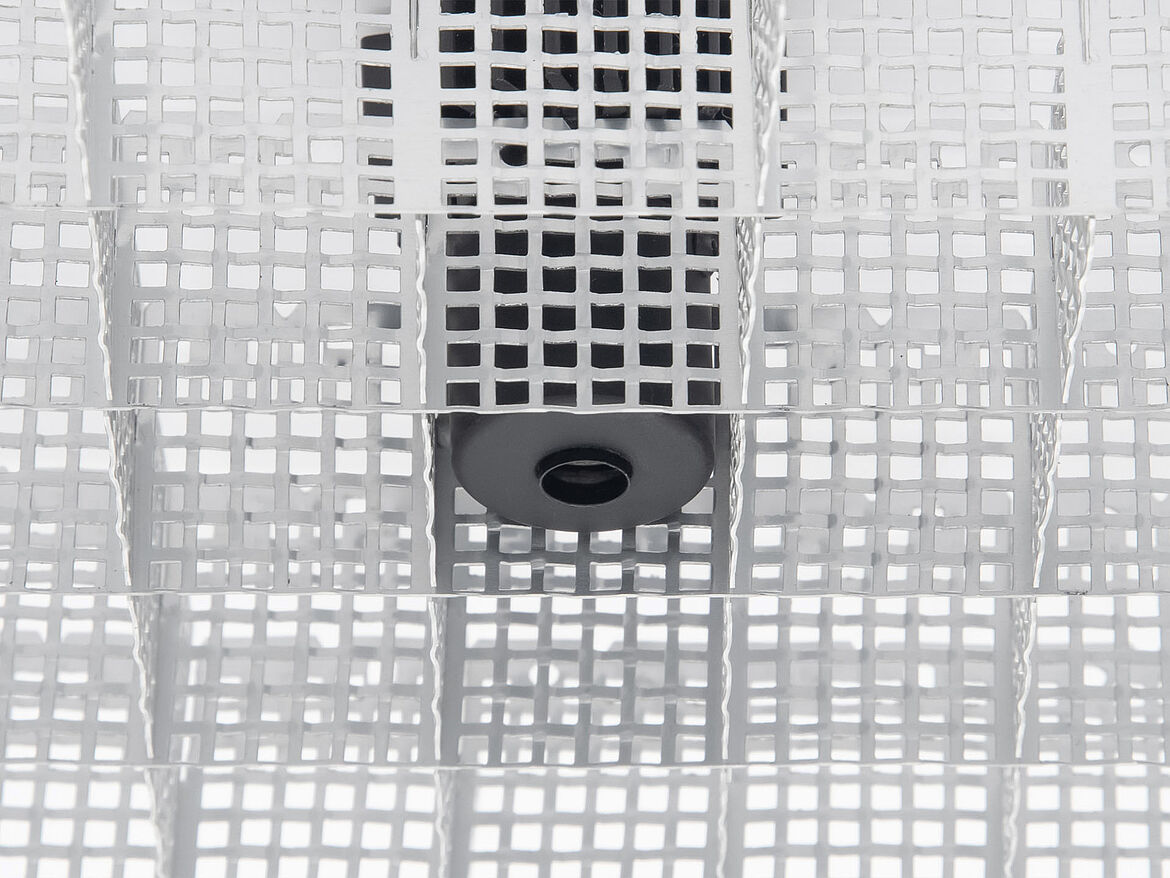

TICELL + PUNTEO-N 1x1 (S02)
TICELL open-cell ceiling details
Cell
Cell size: 33.33 x 33.33 mm
Cell height: 40 mm
Material and surface
Aluminium 0.6 mm; surface strip-painted
Louvers: white, other colours on request.
PUNTEO-N1x1 luminaire details
Light distribution: 2 x 20° (narrow beam) | 2 x 38° (wide beam)
Light colour: 2700 K | 3000 K | 4000 K | Tunable White (CRI > 90)
Surface: aluminium black anodized or painted white

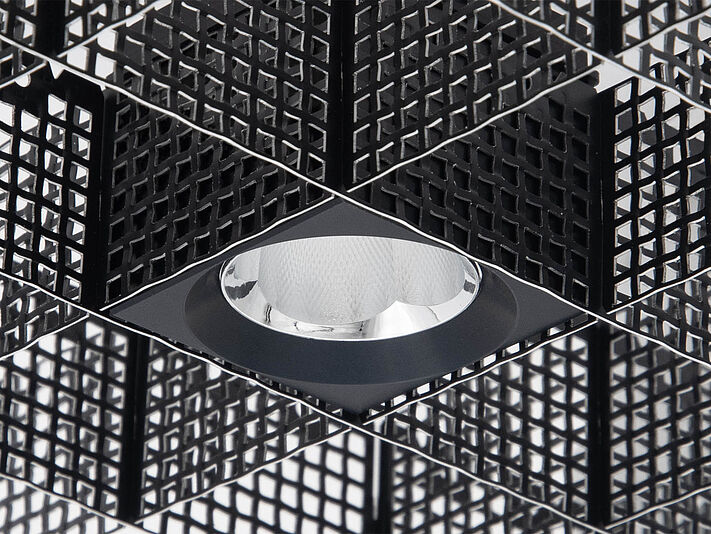

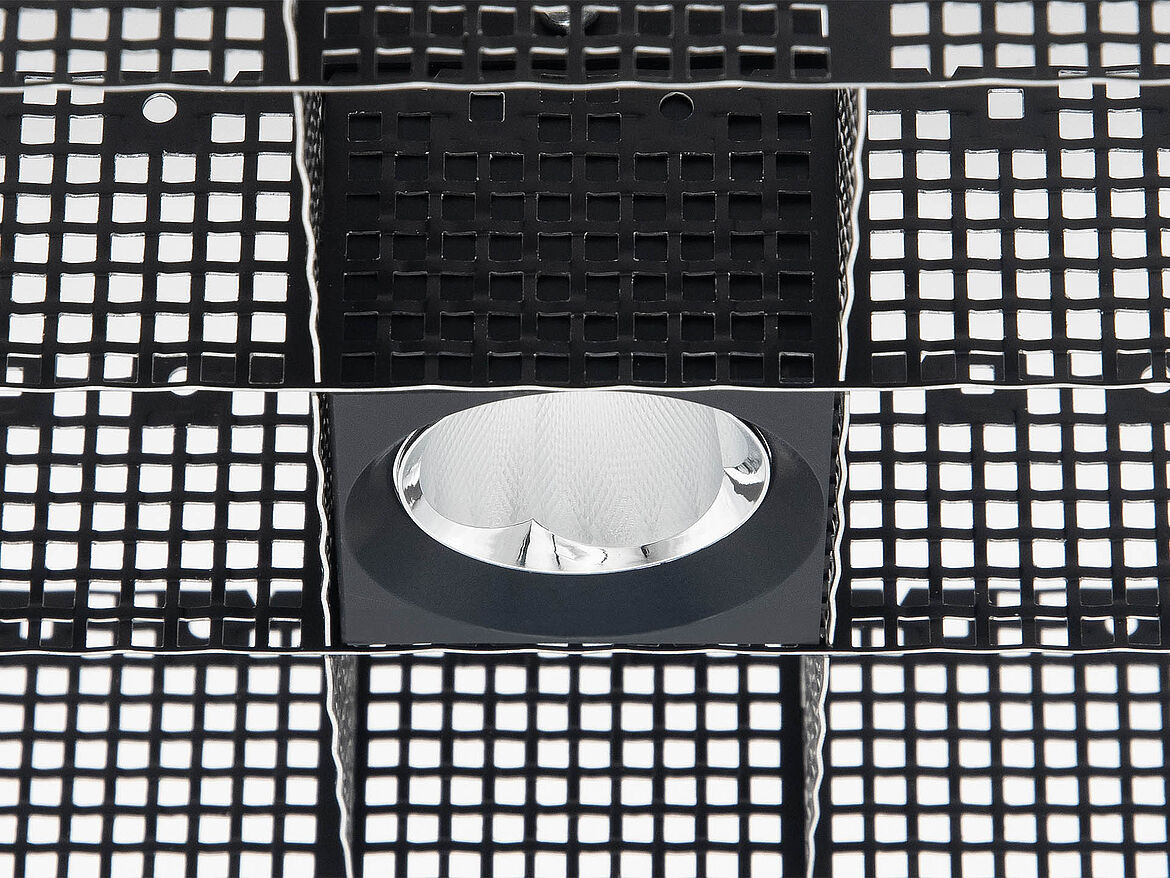

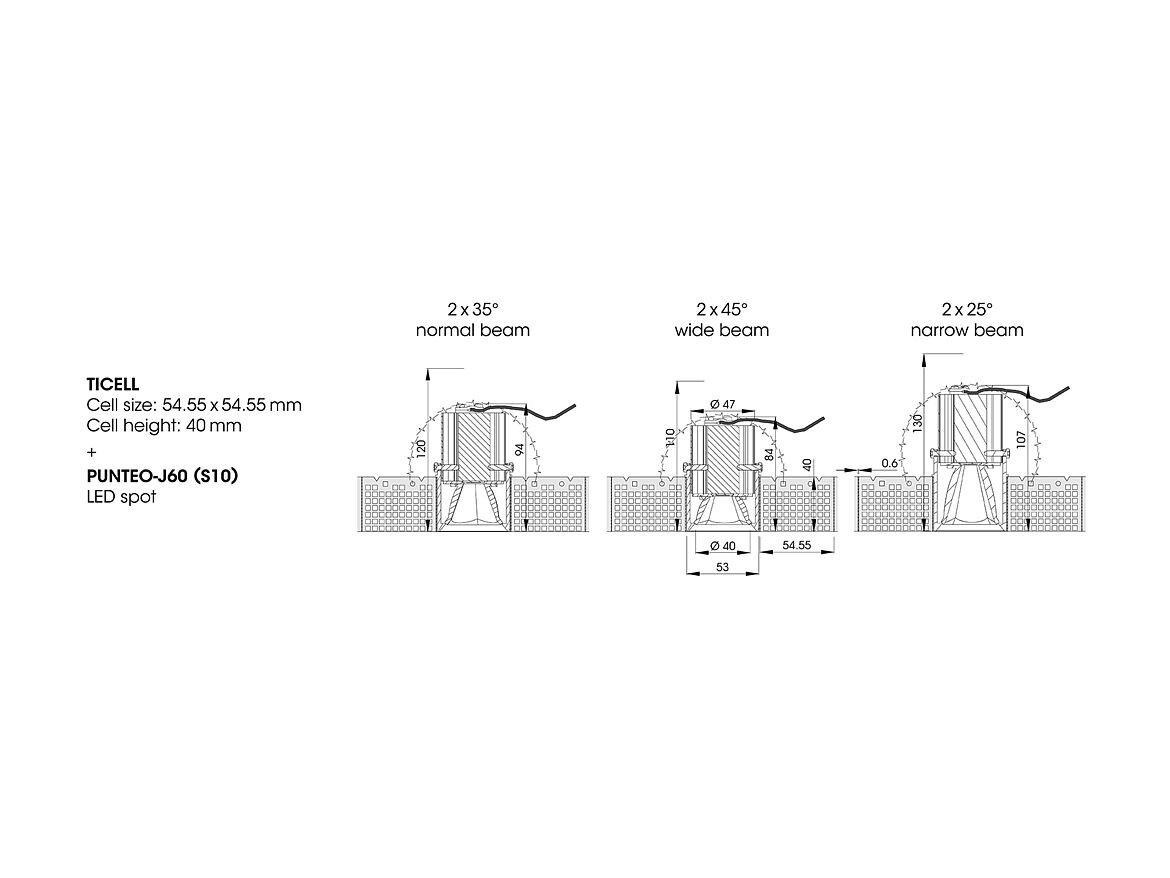

TICELL + PUNTEO-J60 (S10)
TICELL open-cell ceiling details
Cell
Cell size: 54.55 x 54.55 mm
Cell height: 40 mm
Material and surface
Aluminium 0.6 mm; surface strip-painted
Louvers: white, other colours on request
PUNTEO-J60 luminaire details
Light distribution: 2 x 25° (narrow beam) | 2 x 35° (normal beam) | 2 x 45° (wide beam)
Light colour: 2700 K | 3000 K | 4000 K | Tunable White (CRI > 90)
Surface: black matt, anodised (standard) | RAL 9010 | RAL 9016 | Aluminium anodised
