TANGENTA-C63 is an elegant 59 mm wide luminaire, specially developed for joint-free and tool-free installation in durlum metal ceiling systems. It is suitable for a wide range of applications.
- Frameless integration and tool-free installation into the ceiling panel.
- Available with diffuse and microprismatic covers.
- An additional deflection reducer – fitted with the luminaire – can reduce the deflection of the entire ceiling panel.
- Secondary plug-in system [from LED driver to luminaire] and, optionally, a primary plug-in system.
TANGENTA-C63 LED lighting line

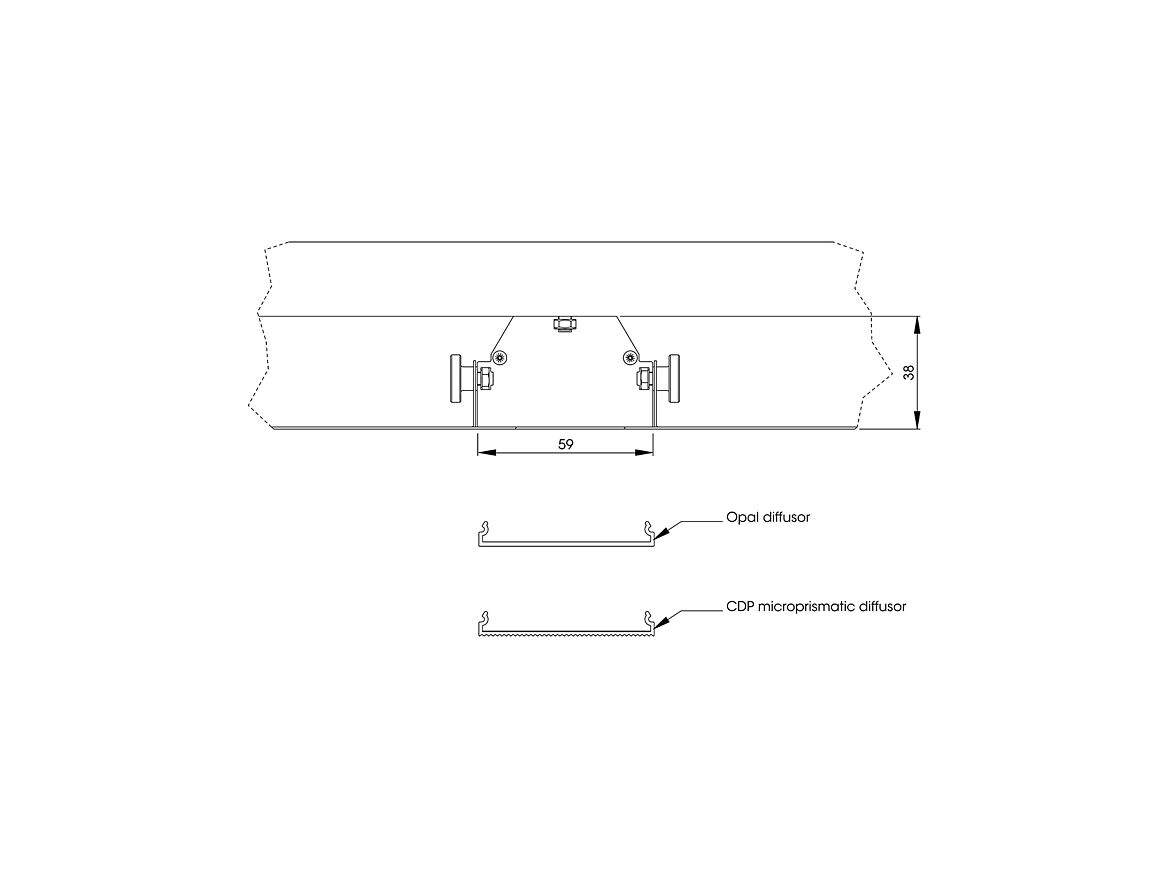

Dimensions
Width: 59 mm
Height: 38 mm
Length: 854 mm | 1134 mm | 1414 mm | 1694 mm
Cover
PMMA opal or microprismatic diffuse
Luminaire details
Light colour: 3000 K, 4000 K
Luminaire output: 3750 lm/m (3000 K), 4020 lm/m (4000 K)
Dimmability: DALI dimmable
Power supply: 230 V/50 Hz + DALI
Protection degree: IP 20
