TANGENTA-C63 LED lighting line

Lighting line for basic lighting of rooms

TANGENTA-C63 is an elegant 59.5mm wide luminaire, designed specifically for ex-works installation in durlum metal ceiling systems. It is suitable for a wide range of applications.

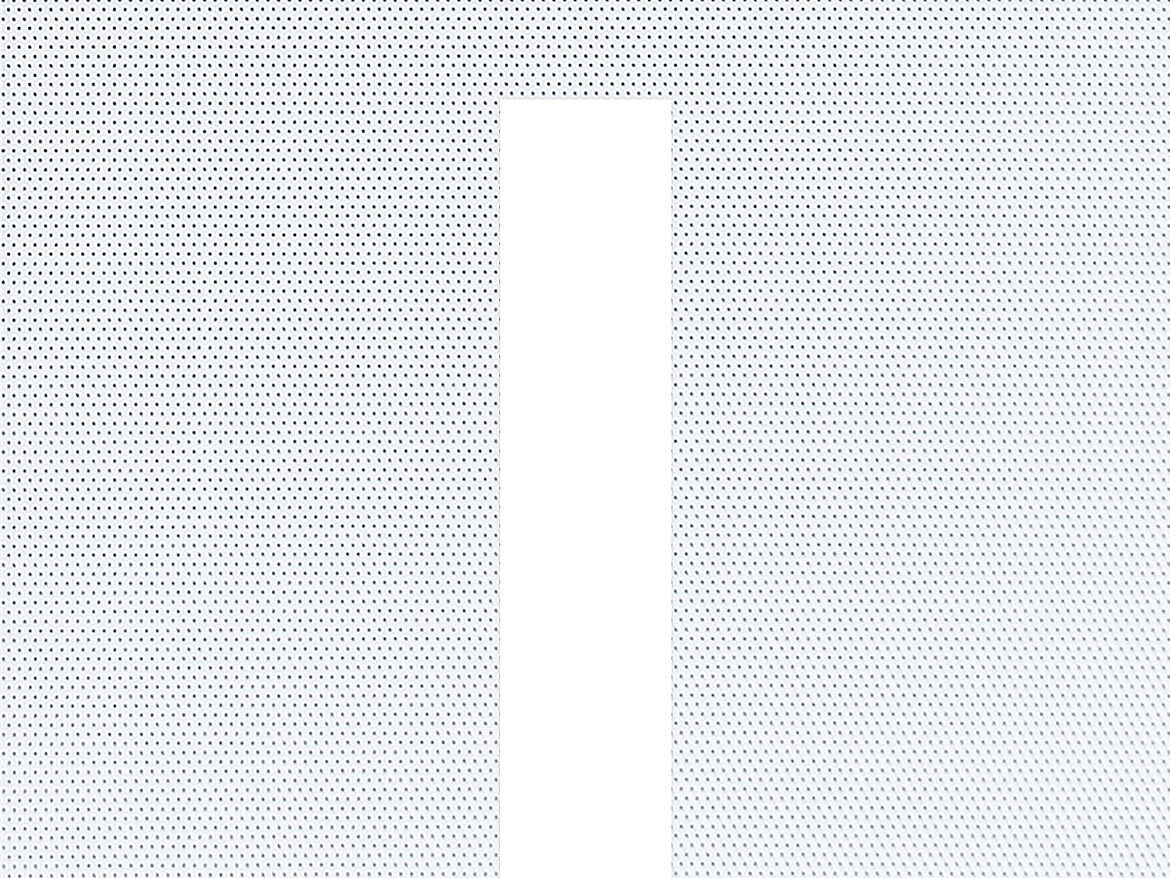

  • Frameless integration into the ceiling panel.
  • Available with different covers.
  • Optional: With the connector system Linect, the luminaire and panel can be easily installed from a single source.

Technical Information

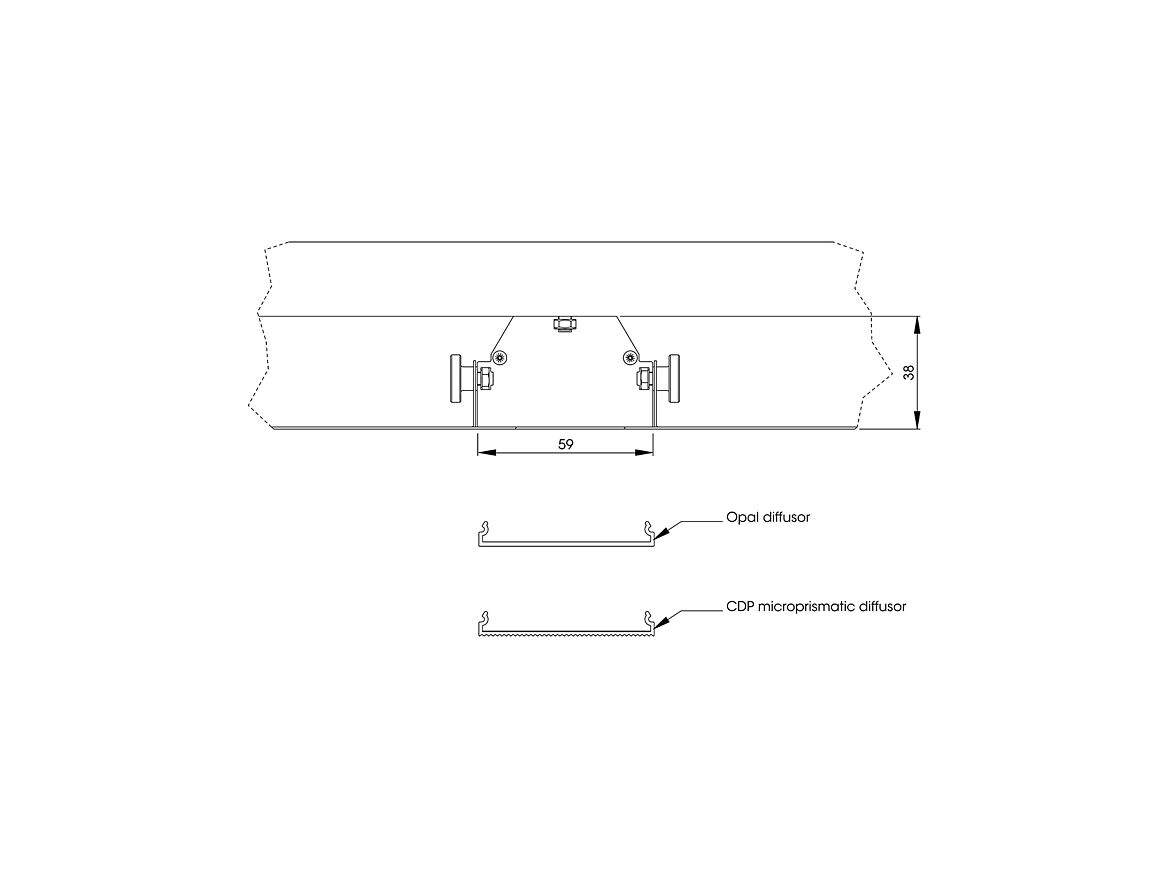

​​​​​​Dimensions

W: 59.5 mm
H: 57 mm
L: 854 mm | 1134 mm | 1414 mm

Cover

PMMA opal or microprismatic (optionally with diffuser film)

Luminaire details

Light colour: 3000 K, 4000 K
Luminaire output: 4454 lm/m (3000 K), 4654 lm/m (4000 K)
Dimmability: DALI dimmable
Driver: driver inside
Power supply: 230 V/50 Hz + DALI
Protection degree: IP 20

Downloads

TANGENTA-C63 lighting line
