PUNTEO®-Y high-performance spotlight

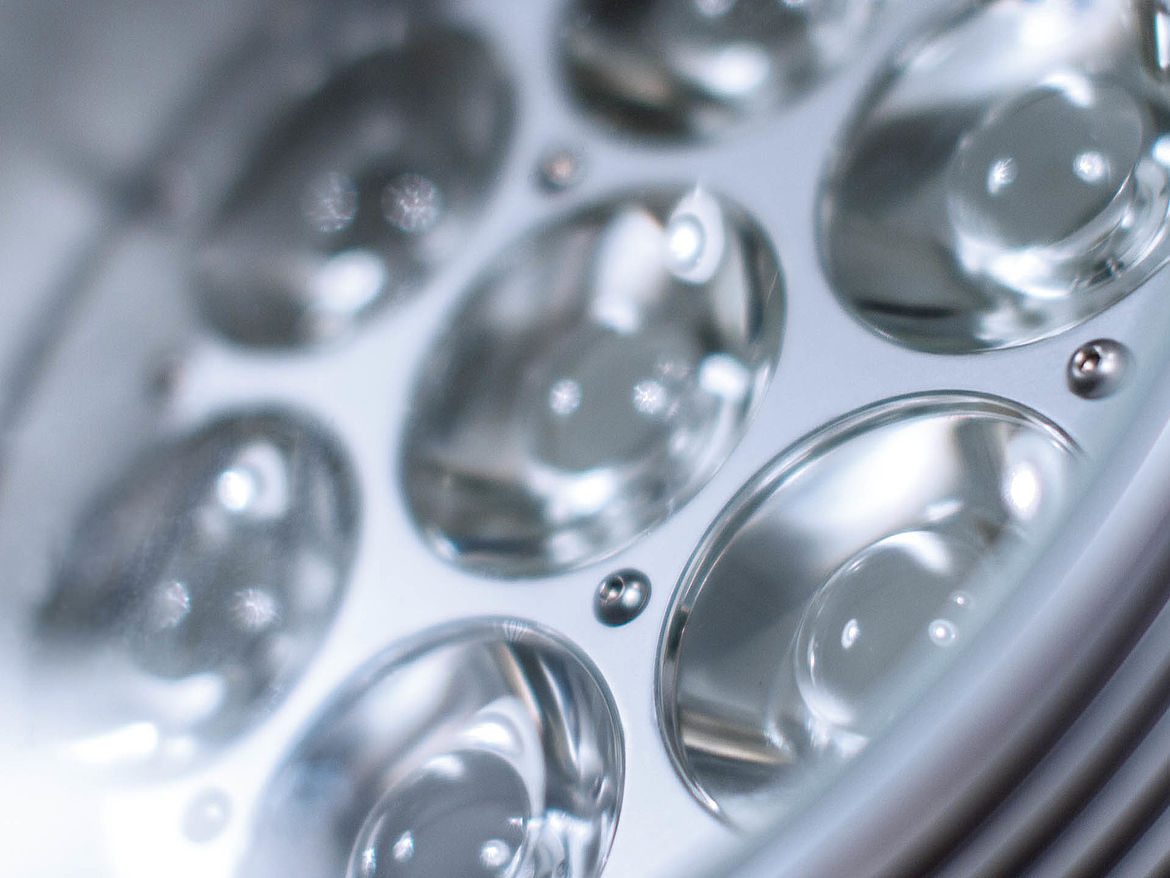

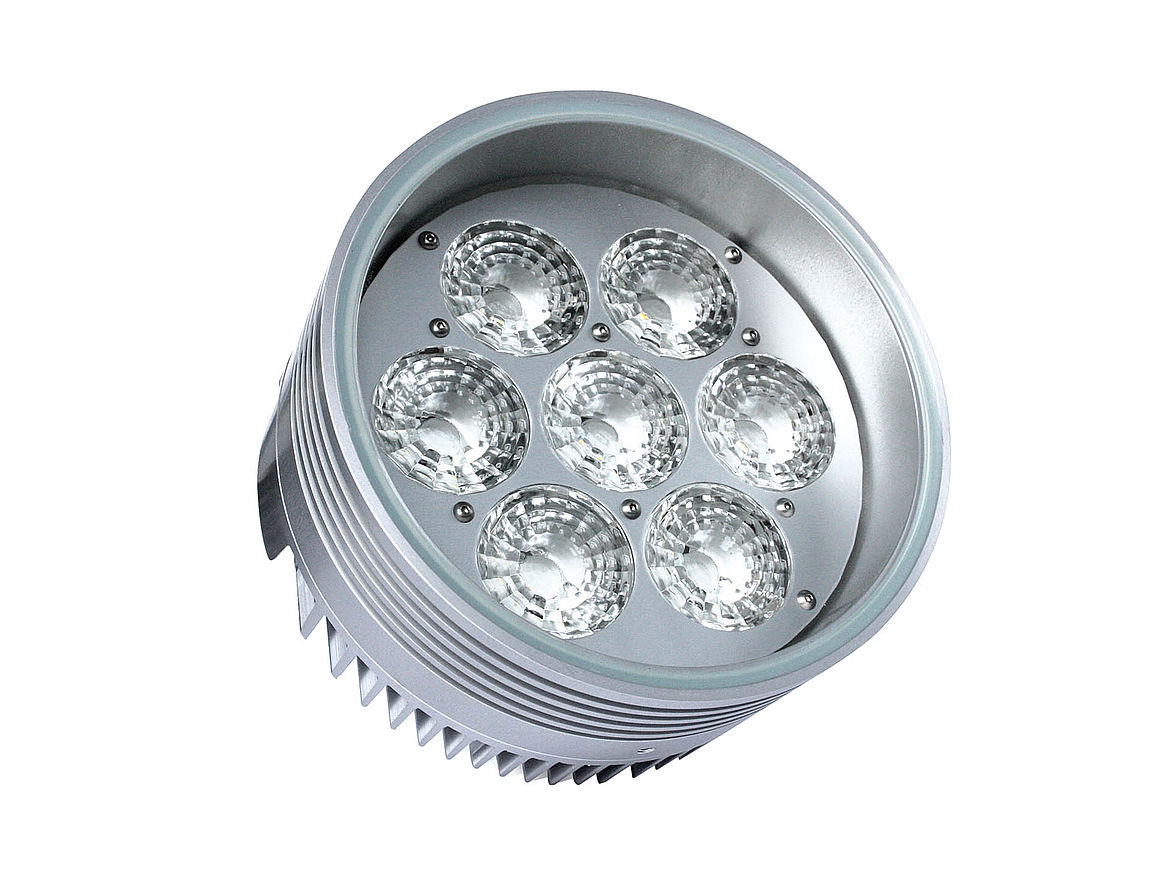

The top-quality lead glass lenses in the tightly focusing PUNTEO^®-Y255 and PUNTEO^®-Y300 HYBRID spotlights deliver first-class, glare-free light. This extremely robust and long-lasting lighting system with integrated fully passive cooling has been developed for demanding applications in exterior areas subject to high ambient temperatures.

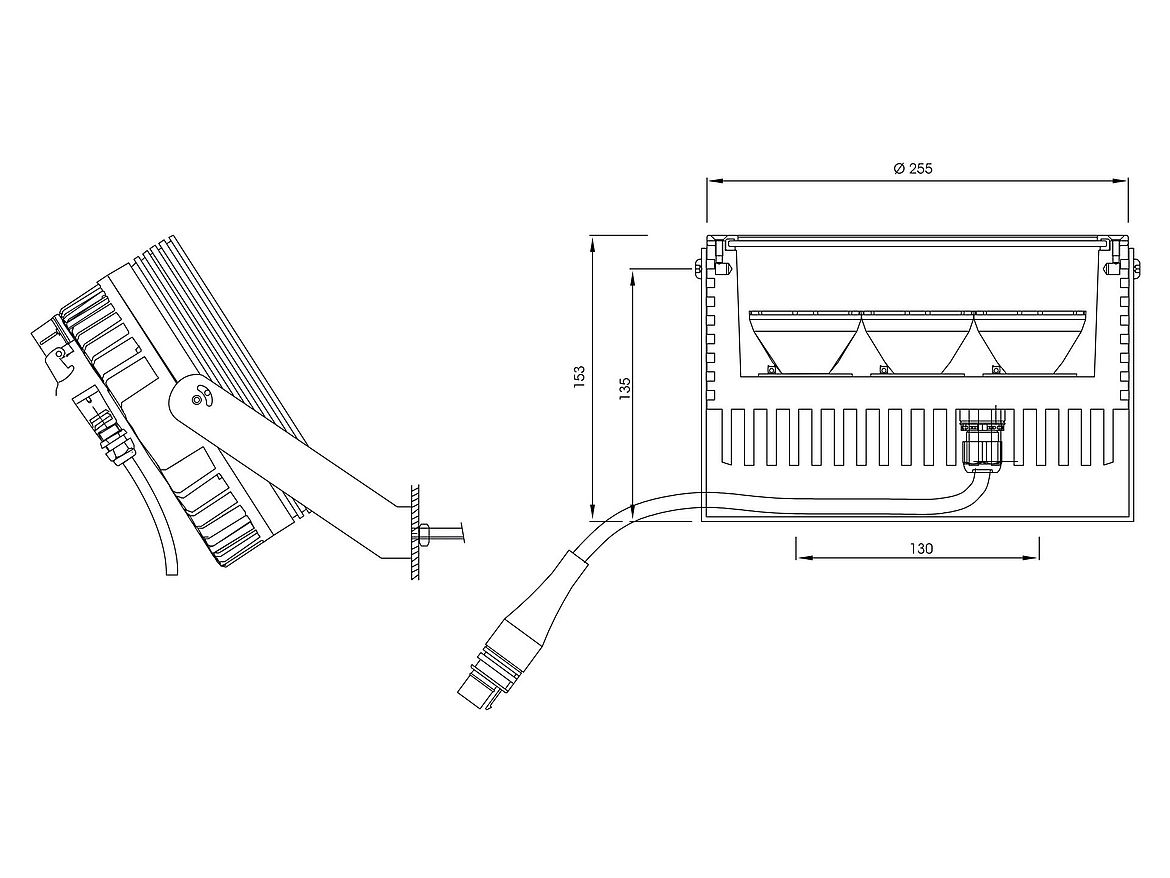

Dimensions

Diameter: 255 mm
Height: 153 mm

Material and surface

Aluminium matt

Luminaire details

Light colour: 4000 K
LED output: 5600 lm
Light distribution: 2x10° | 2x20°
Dimmability: DALI dimmable
Driver: external in ceiling cavity
Power: 7x8W
Power supply: 700 mA CC
IP 65
Protection class I

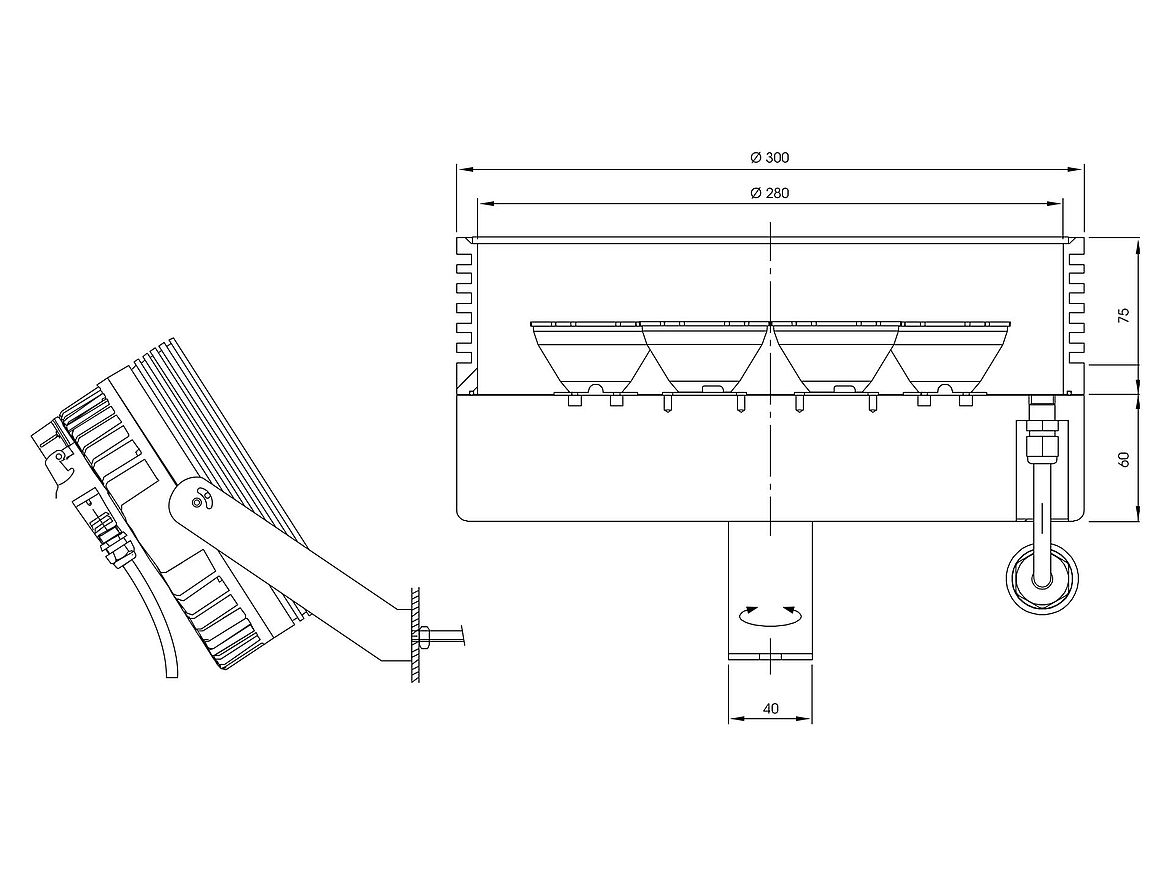

Dimensions

Diameter: 300 mm
Height: 135 mm

Material and surface

Aluminium matt

Luminaire details

Light colour: 4000 K
LED output: 9256 lm
Light distribution: 2x10° | 2x20°
Dimmability: DALI dimmable
Driver: external in ceiling cavity
Power: 14x8W
Power supply: 700 mA CC
IP 65
Protection class I
