QUADRA + POINT ceiling lighting integration

PUNTEO-N 1x1 LED recessed luminaire in open cell ceiling

PUNTEO-N 1x1 LED recessed luminaire in open cell ceiling QUADRA

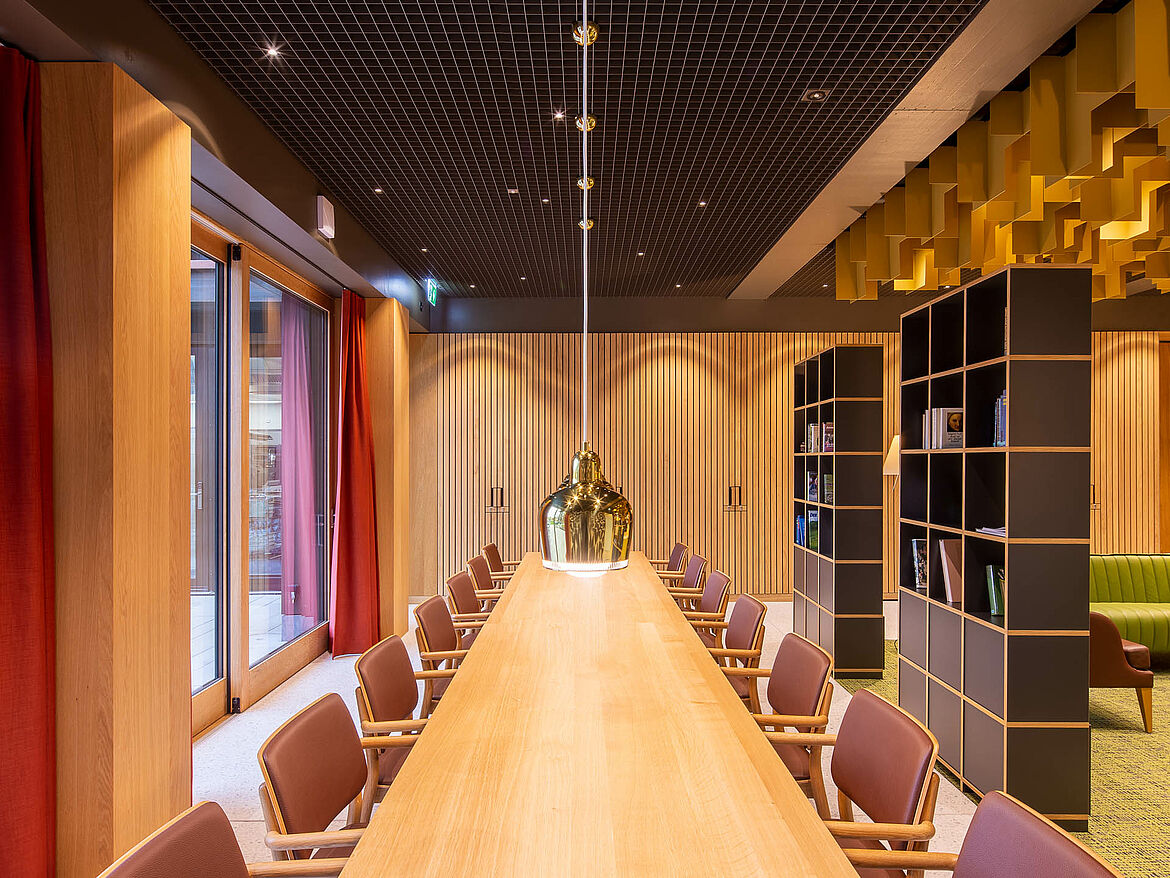

The PUNTEO-N 1x1 is a highly efficient LED recessed luminaire that impresses with its excellent glare control, maximum light output and high energy savings. The downlight can be neatly integrated into the open ceiling QUADRA with cell sizes of 30x30 mm, 40x40 mm or 50x50 mm, making the luminaire body almost invisible (product finder). With cell sizes of 60x60mm, 70x70mm and 80x80mm the modern PUNTEO-J60 LED downlight can be optimally integrated into the QUADRA ceiling. Thanks to their lighting technology, both luminaires provide ideal, efficient illumination for a wide variety of room situations.

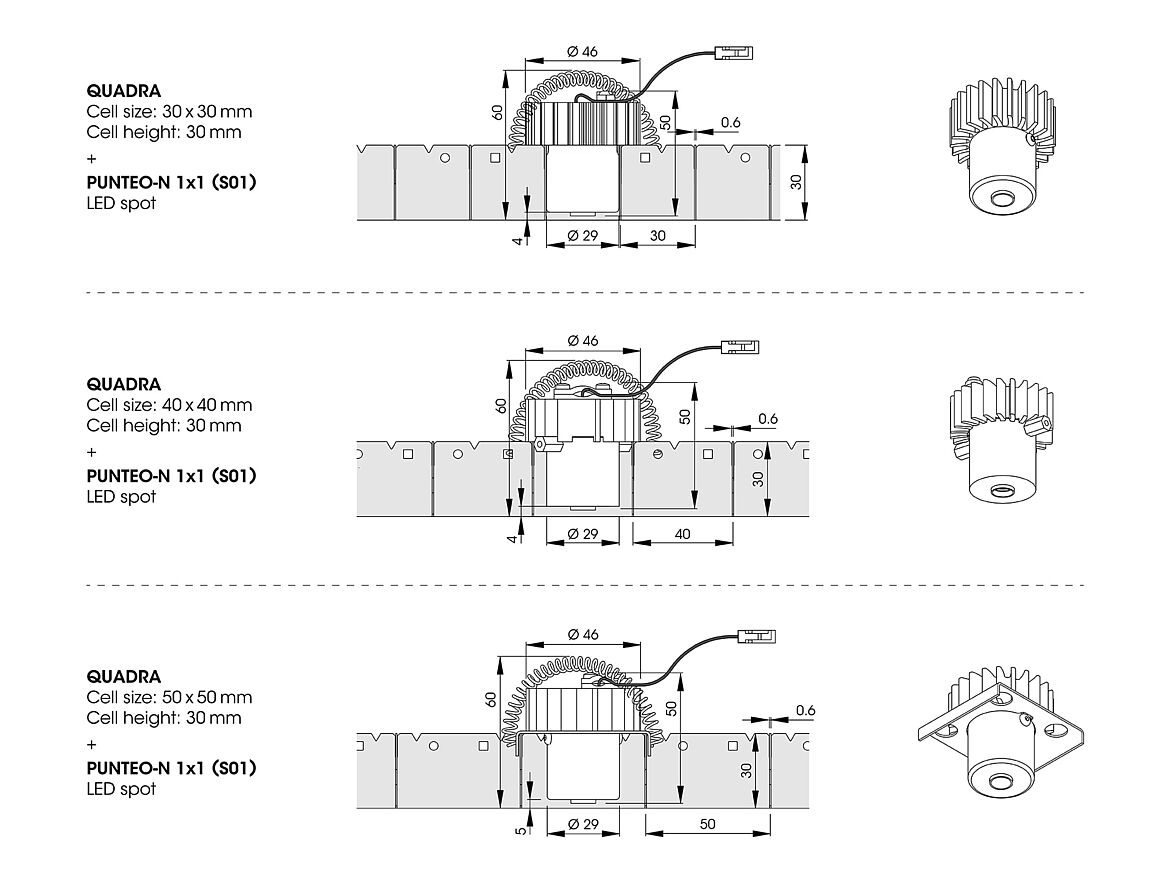

Single blade louvre QUADRA with integrated downlight PUNTEO-N 1x1 (S01) — QUADRA (height: 30mm) with integrated downlight PUNTEO-N 1x1 (S01)

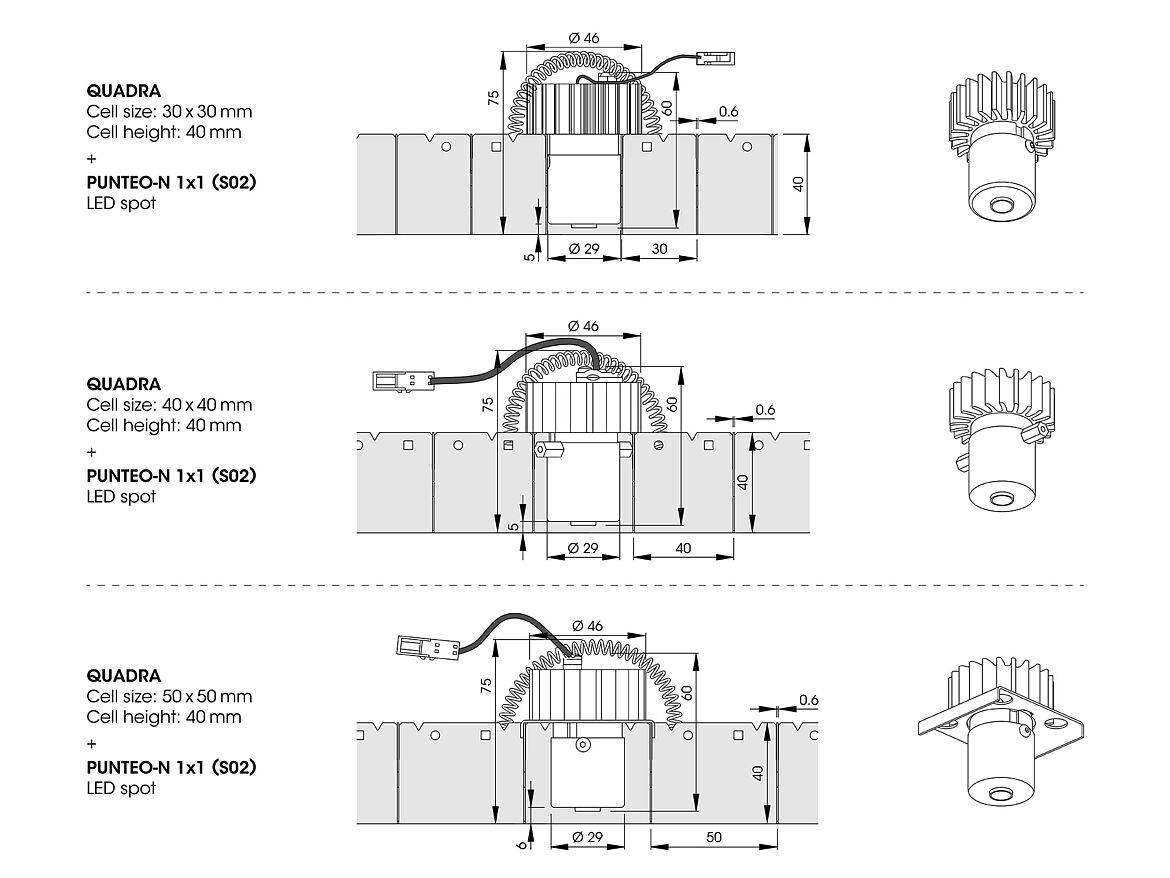

Single blade louvre QUADRA with integrated downlight PUNTEO-N 1x1 (S02) — QUADRA (height: 40mm) with integrated downlight PUNTEO-N 1x1 (S02)

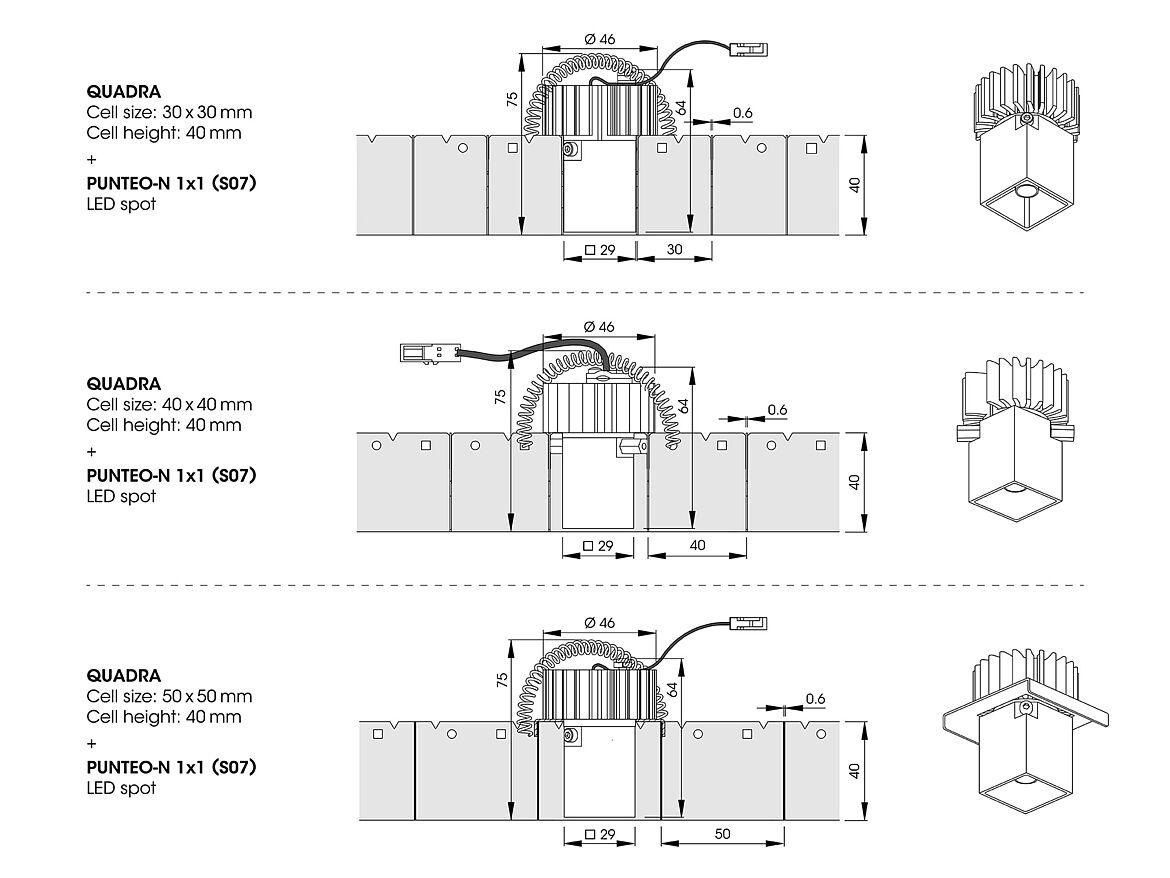

Single blade louvre QUADRA with integrated downlight PUNTEO-N 1x1 (S07) — QUADRA (height: 40mm) with integrated downlight PUNTEO-N 1x1 (S07)

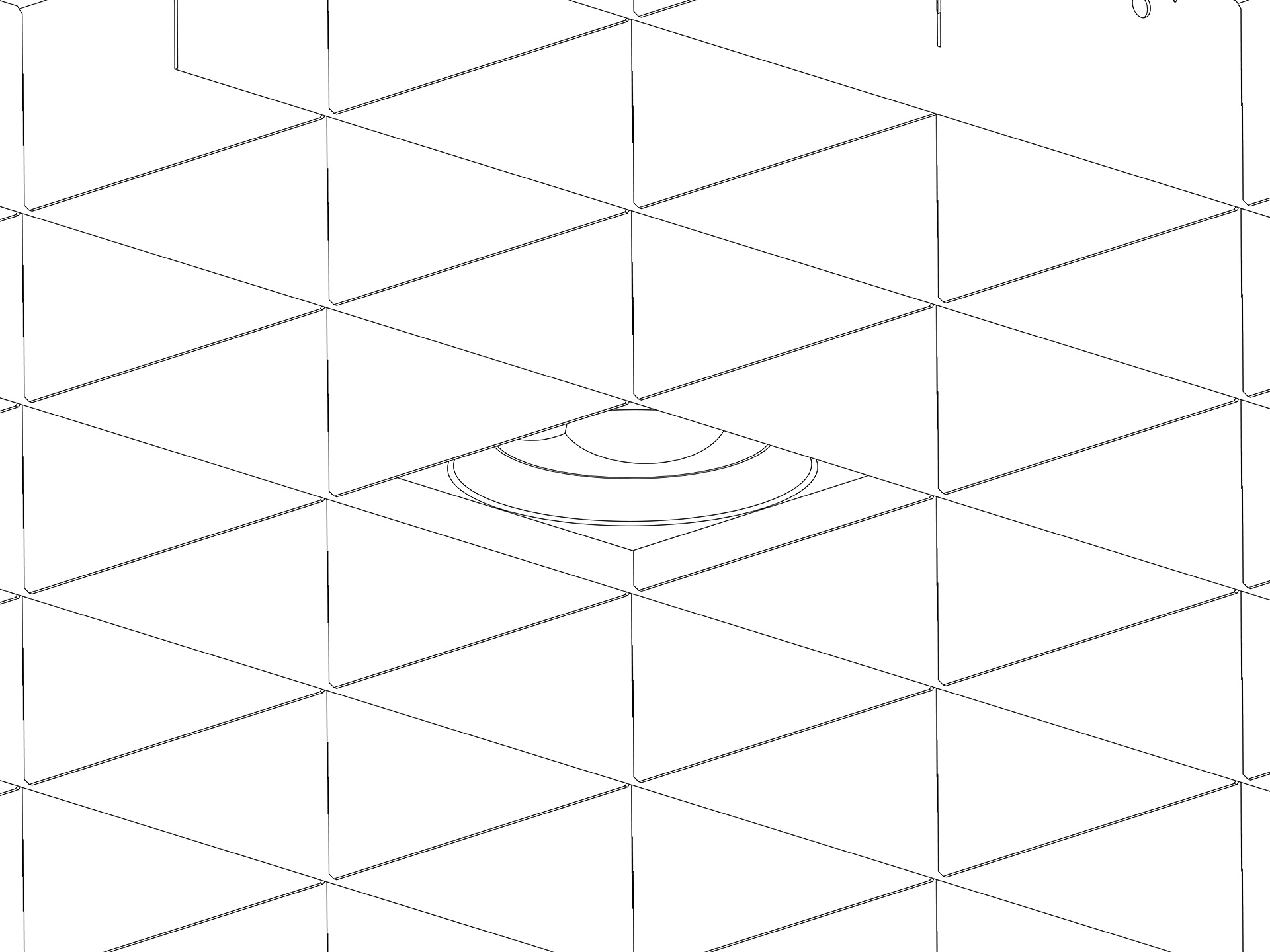

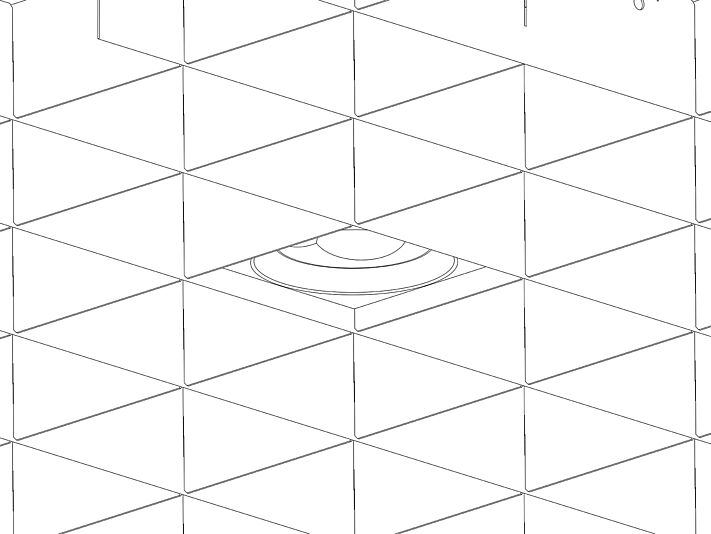

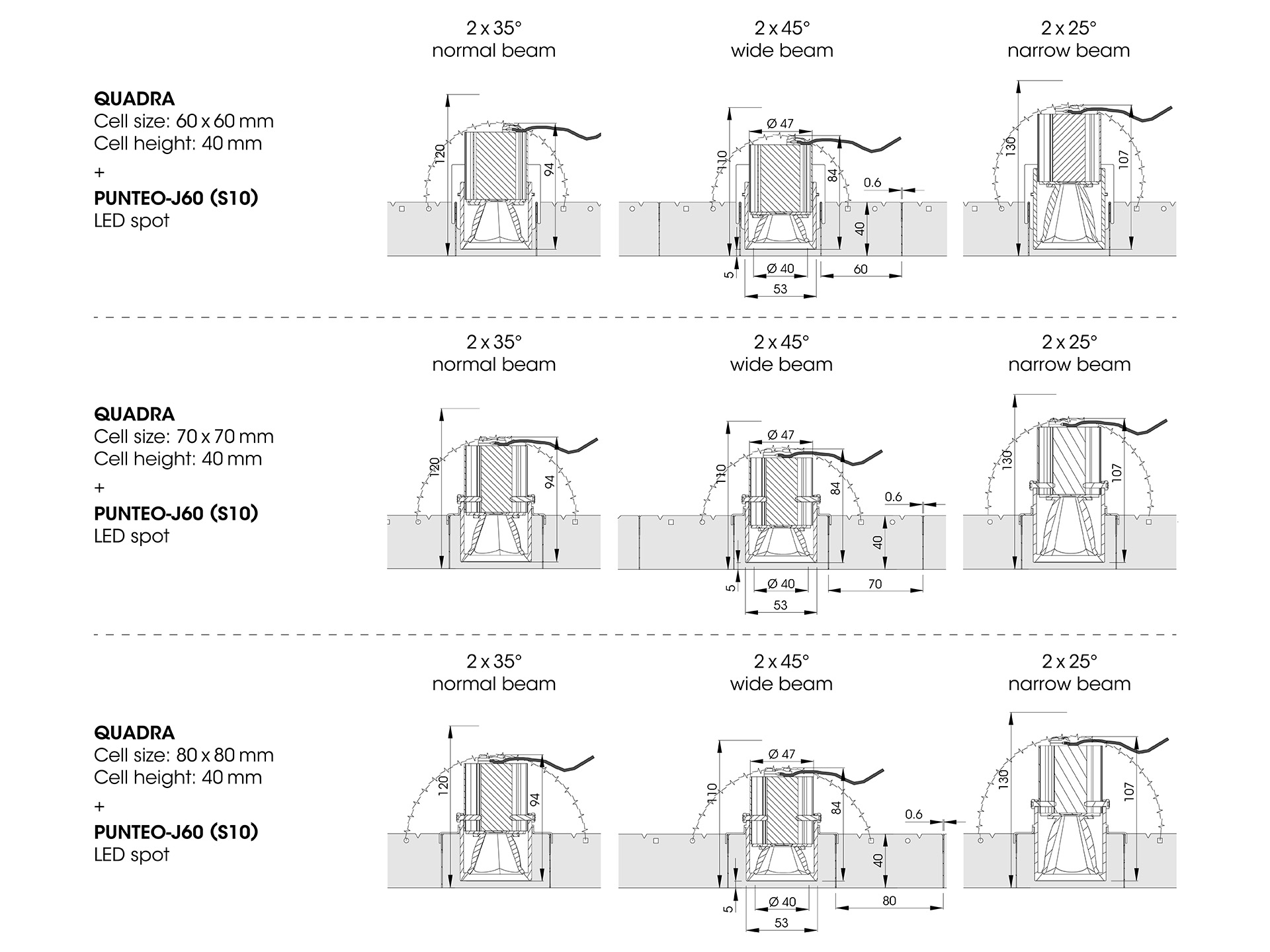

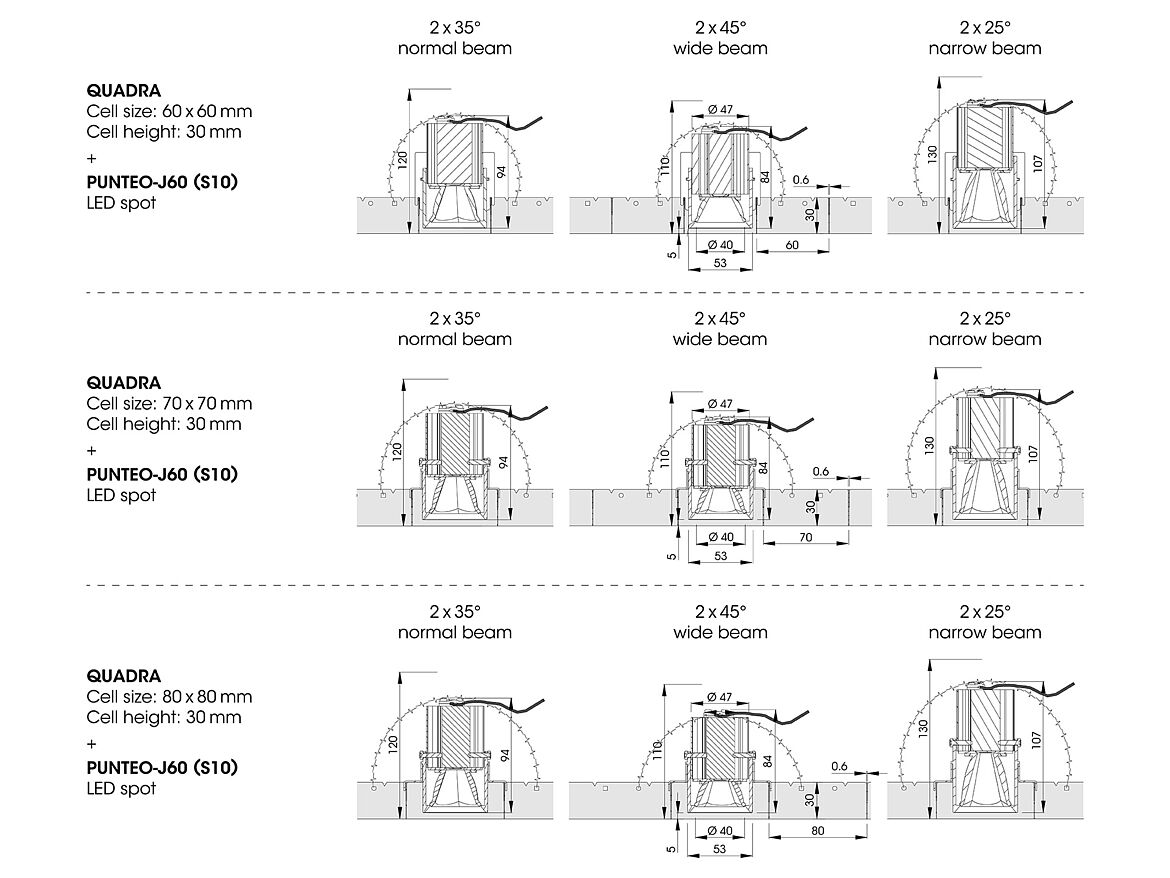

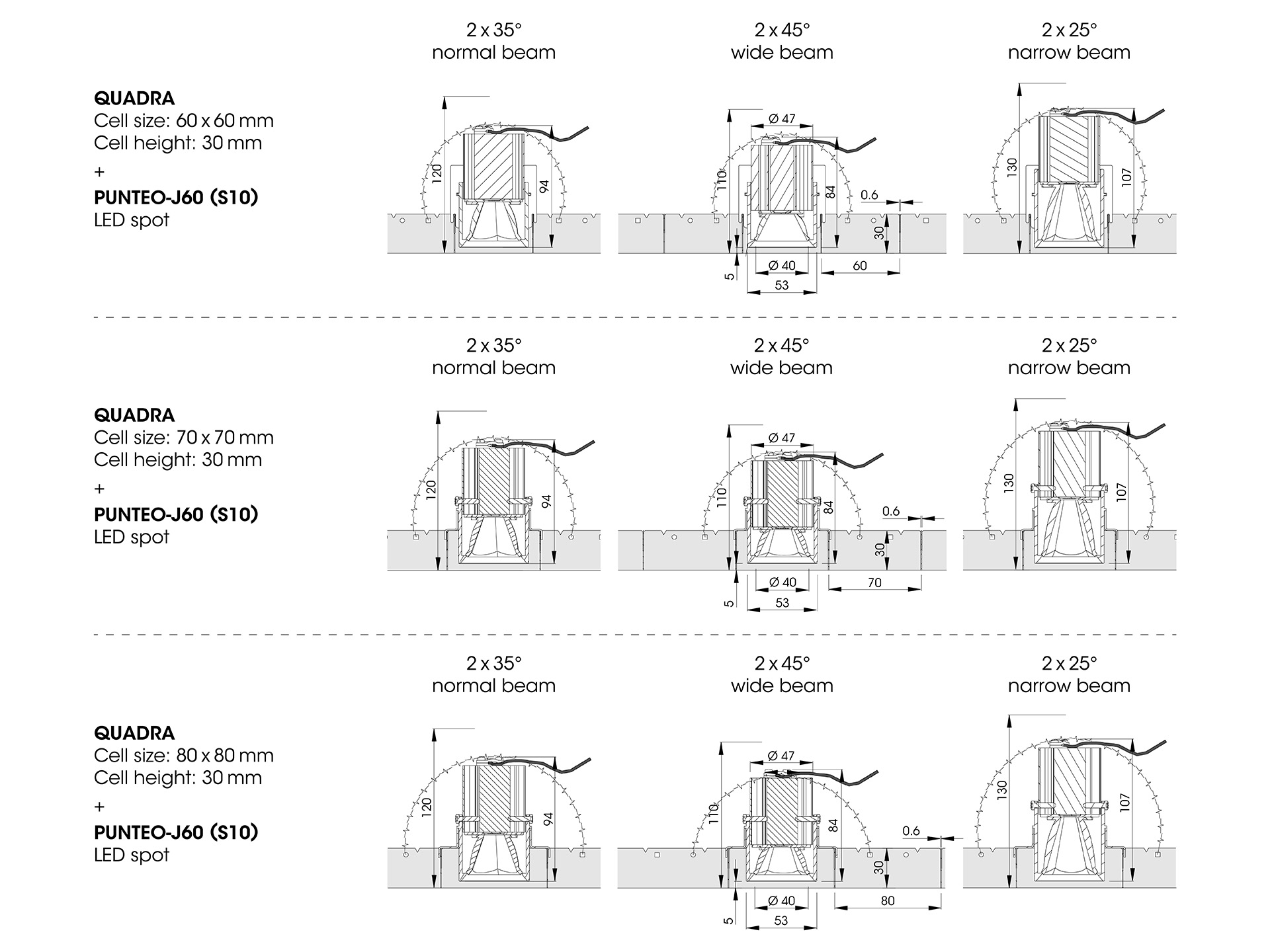

Single blade louvre QUADRA with integrated downlight PUNTEO-J60 (S10) — QUADRA (height: 30mm; 40mm) with integrated downlight PUNTEO-J60 (S10)

QUADRA Details

Panel:
1200x600mm

Louvre configuration (Louvre height | Cell size):
30mm | 30x30mm
30mm | 40x40mm
30mm | 50x50mm

Material and surface:
Material: aluminium 0.6 mm
Louvre colour: white, black, RAL 9006, RAL 7012, natural anodised, other colours on request

PUNTEO-N 1x1 luminaire details

Variant 1:
Dimensions (Ø x H): 46mm x 50mm
Installation height: 60mm
Surface: black anodized (standard) | RAL 9010 | RAL 9016
Light distribution: 2 x 20° (LOR: 70%)
LED: 2700K; 600lm; CRI >90 | 3000K; 640lm; CRI >90 | 3000K; 850lm; CRI >80 | 4000K; 905lm; CRI >80 | 2700K/5000K; 900lm; CRI >80
Protection class: III (without LED driver)
Protection system: IP 20

Variant 2:
Dimensions (Ø x H): 46mm x 50mm
Installation height: 60mm
Surface: black anodized (standard) | RAL 9010 | RAL 9016
Light distribution: 2 x 38° (LOR: 75%)
LED: 2700K; 600lm; CRI >90 | 3000K; 640lm; CRI >90 | 3000K; 850lm; CRI >80 | 4000K; 905lm; CRI >80 | 2700K/5000K; 900lm; CRI >80
Protection class: III (without LED driver)
Protection system: IP 20

QUADRA Details

Panel:
1200x600mm

Louvre configuration (Louvre height | Cell size):
40mm | 30x30mm
40mm | 40x40mm
40mm | 50x50mm

Material and surface:
Material: aluminium 0.6 mm
Louvre colour: white, black, RAL 9006, RAL 7012, natural anodised, other colours on request

PUNTEO-N 1x1 luminaire details

Variant 1:
Dimensions (Ø x H): 46mm x 60mm
Installation height: 75mm
Surface: black anodized (standard) | RAL 9010 | RAL 9016
Light distribution: 2 x 20° (LOR: 70%)
LED: 2700K; 600lm; CRI >90 | 3000K; 640lm; CRI >90 | 3000K; 850lm; CRI >80 | 4000K; 905lm; CRI >80 | 2700K/5000K; 900lm; CRI >80
Protection class: III (without LED driver)
Protection system: IP 20

Variant 2:
Dimensions (Ø x H): 46mm x 60mm
Installation height: 75mm
Surface: black anodized (standard) | RAL 9010 | RAL 9016
Light distribution: 2 x 38° (LOR: 75%)
LED: 2700K; 600lm; CRI >90 | 3000K; 640lm; CRI >90 | 3000K; 850lm; CRI >80 | 4000K; 905lm; CRI >80 | 2700K/5000K; 900lm; CRI >80
Protection class: III (without LED driver)
Protection system: IP 20

QUADRA Details

Panel:
1200x600mm

Louvre configuration (Louvre height | Cell size):
40mm | 30x30mm
40mm | 40x40mm
40mm | 50x50mm

Material and surface:
Material: aluminium 0.6 mm
Louvre colour: white, black, RAL 9006, RAL 7012, natural anodised, other colours on request

PUNTEO-N 1x1 luminaire details

Variant 1:
Dimensions (L x W x H): 46mm x 46mm x 64mm
Installation height: 75mm
Surface: black anodized (standard) | RAL 9010 | RAL 9016
Light distribution: 2 x 20° (LOR: 70%)
LED: 2700K; 600lm; CRI >90 | 3000K; 640lm; CRI >90 | 3000K; 850lm; CRI >80 | 4000K; 905lm; CRI >80 | 2700K/5000K; 900lm; CRI >80
Protection class: III (without LED driver)
Protection system: IP 20

Variant 2:
Dimensions (L x W x H): 46mm x 46mm x 64mm
Installation height: 75mm
Surface: black anodized (standard) | RAL 9010 | RAL 9016
Light distribution: 2 x 38° (LOR: 75%)
LED: 2700K; 600lm; CRI >90 | 3000K; 640lm; CRI >90 | 3000K; 850lm; CRI >80 | 4000K; 905lm; CRI >80 | 2700K/5000K; 900lm; CRI >80
Protection class: III (without LED driver)
Protection system: IP 20

QUADRA Details

Panel:
1200x600mm

Louvre configuration (Louvre height | Cell size):
30mm; 40mm | 60x60mm
30mm; 40mm | 70x70mm
30mm; 40mm | 80x80mm

Material and surface:
Material: aluminium 0.6 mm
Louvre colour: white, black, RAL 9006, RAL 7012, natural anodised, other colours on request

PUNTEO-J60 luminaire details

Variant 1:
Dimensions (L x W x H): 53mm x 53mm x 107mm
Installation height: 130mm
Surface: black anodized (standard) | aluminium anodized | RAL 9010 | RAL 9016
Light distribution: 2 x 25° (LOR: 82%)
LED: 2700K; 1486lm; CRI >90 | 3000K; 1536lm; CRI >90 | 4000K; 1644lm; CRI >90 | 2700K/5000K; 1169/1401lm; CRI >90
Protection class: III (without LED driver)
Protection system: IP 20

Variant 2:
Dimensions (L x W x H): 53mm x 53mm x 94mm
Installation height: 120mm
Surface: black anodized (standard) | aluminium anodized | RAL 9010 | RAL 9016
Light distribution: 2 x 35° (LOR: 91%)
LED: 2700K; 1486lm; CRI >90 | 3000K; 1536lm; CRI >90 | 4000K; 1644lm; CRI >90 | 2700K/5000K; 1169/1401lm; CRI >90
Protection class: III (without LED driver)
Protection system: IP 20

Variant 3:
Dimensions (L x W x H): 53mm x 53mm x 84mm
Installation height: 110mm
Surface: black anodized (standard) | aluminium anodized | RAL 9010 | RAL 9016
Light distribution: 2 x 45° (LOR: 94%)
LED: 2700K; 1486lm; CRI >90 | 3000K; 1536lm; CRI >90 | 4000K; 1644lm; CRI >90 | 2700K/5000K; 1169/1401lm; CRI >90
Protection class: III (without LED driver)
Protection system: IP 20
