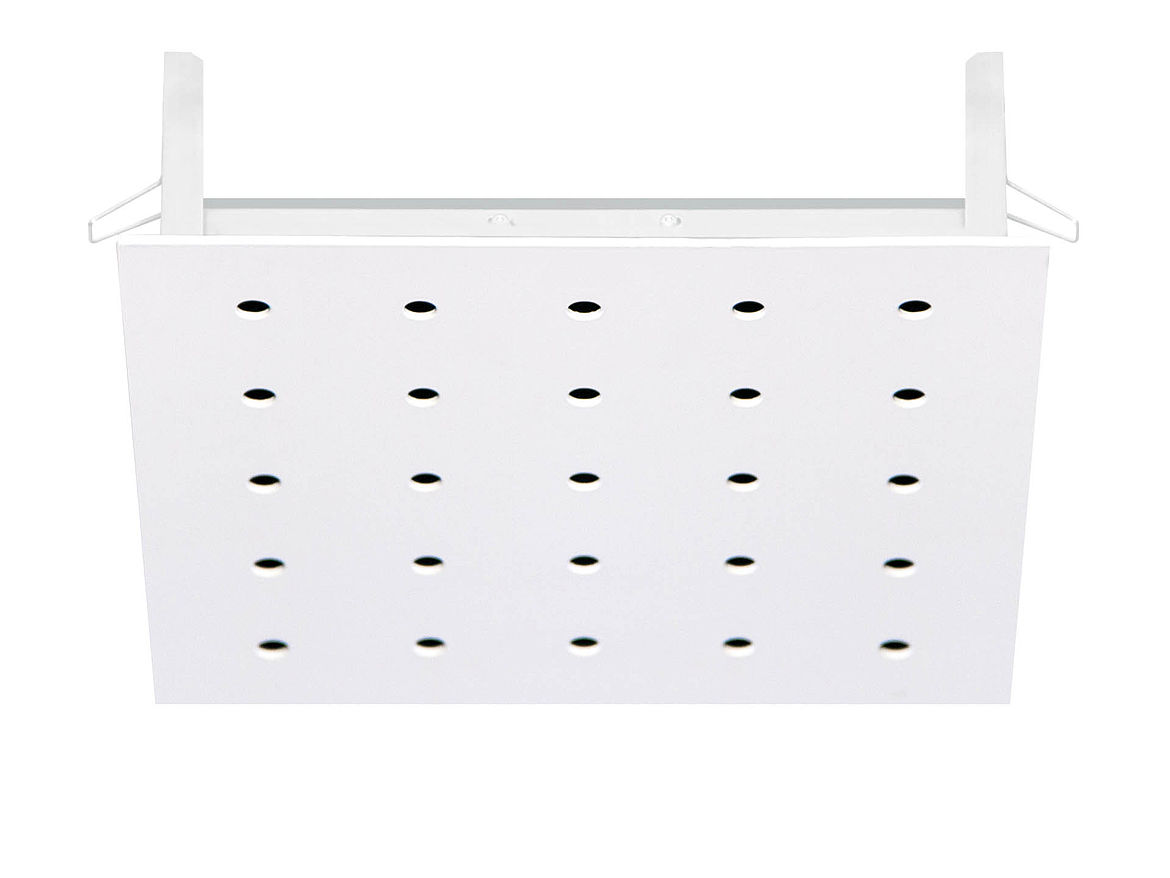

PUNTEO®-N 5x5 minimalist luminaire

Light emerges through crossover

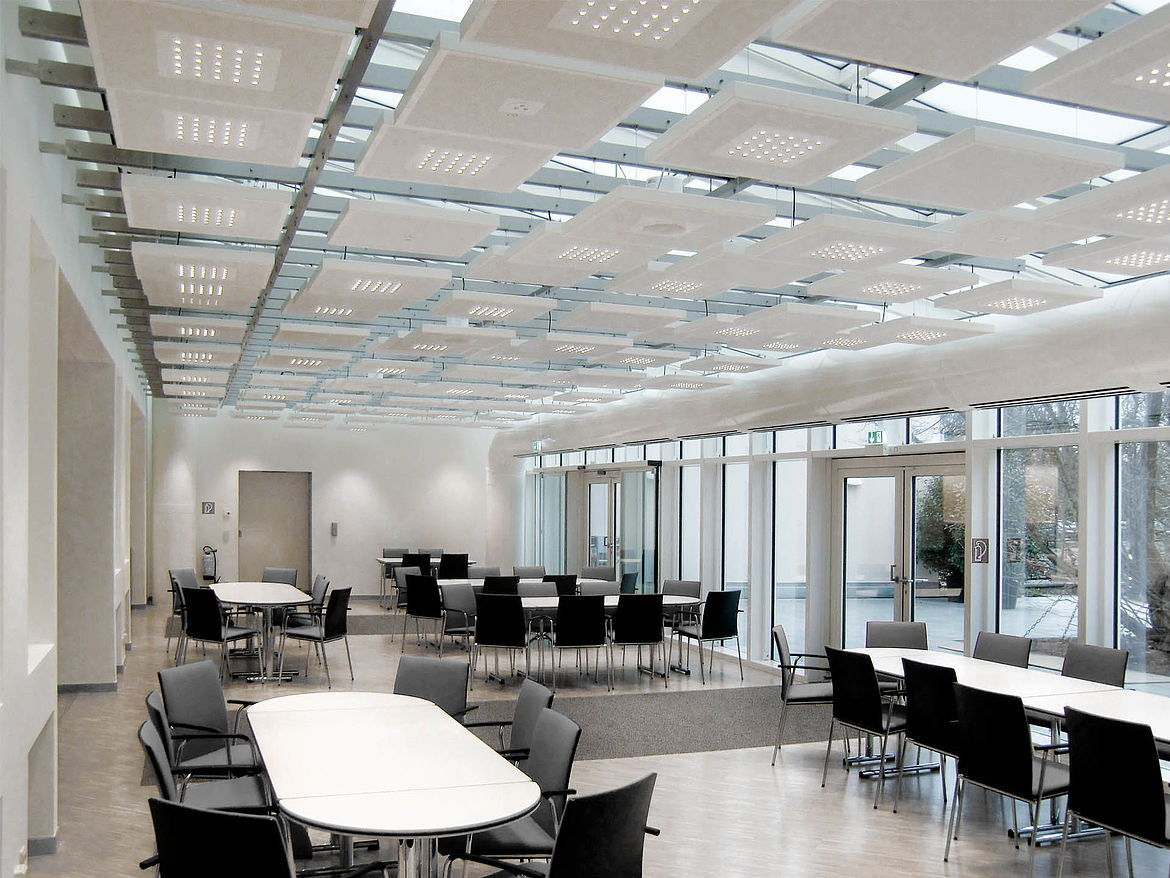

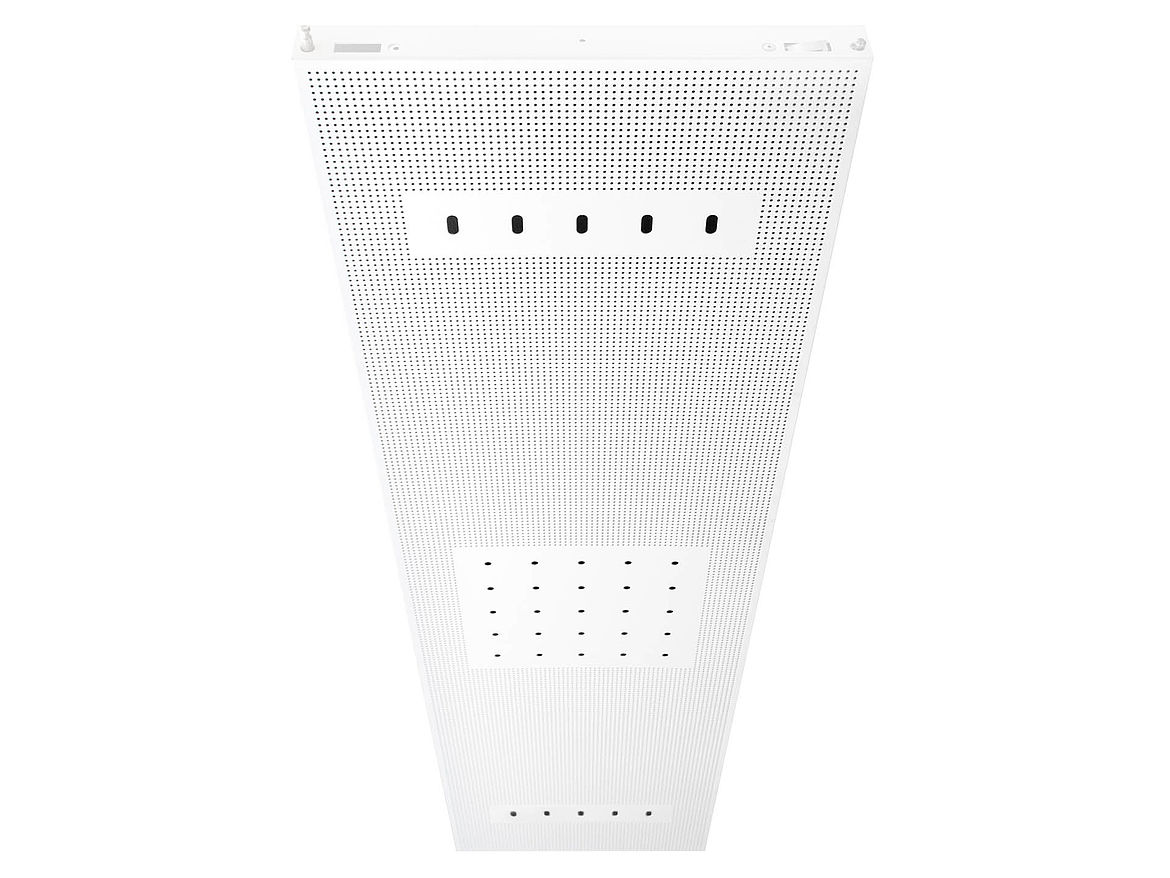

The PUNTEO®-N 5x5 minimalist luminaire with symmetric or asymmetric lighting technology can be integrated perfectly in durlum metal ceiling systems as well as in conventional ceilings. Thanks to the particular PUNTEO®-N lighting technology, no luminaires are visible any more. Instead, only small apertures in a carrier plate through which light emerges through special lenses in a crossover system.

  • Efficiency > 80%
  • Requirements for an efficient lighting system are met.
  • Click here for the fair novelty PUNTEO®-N

Technical Information

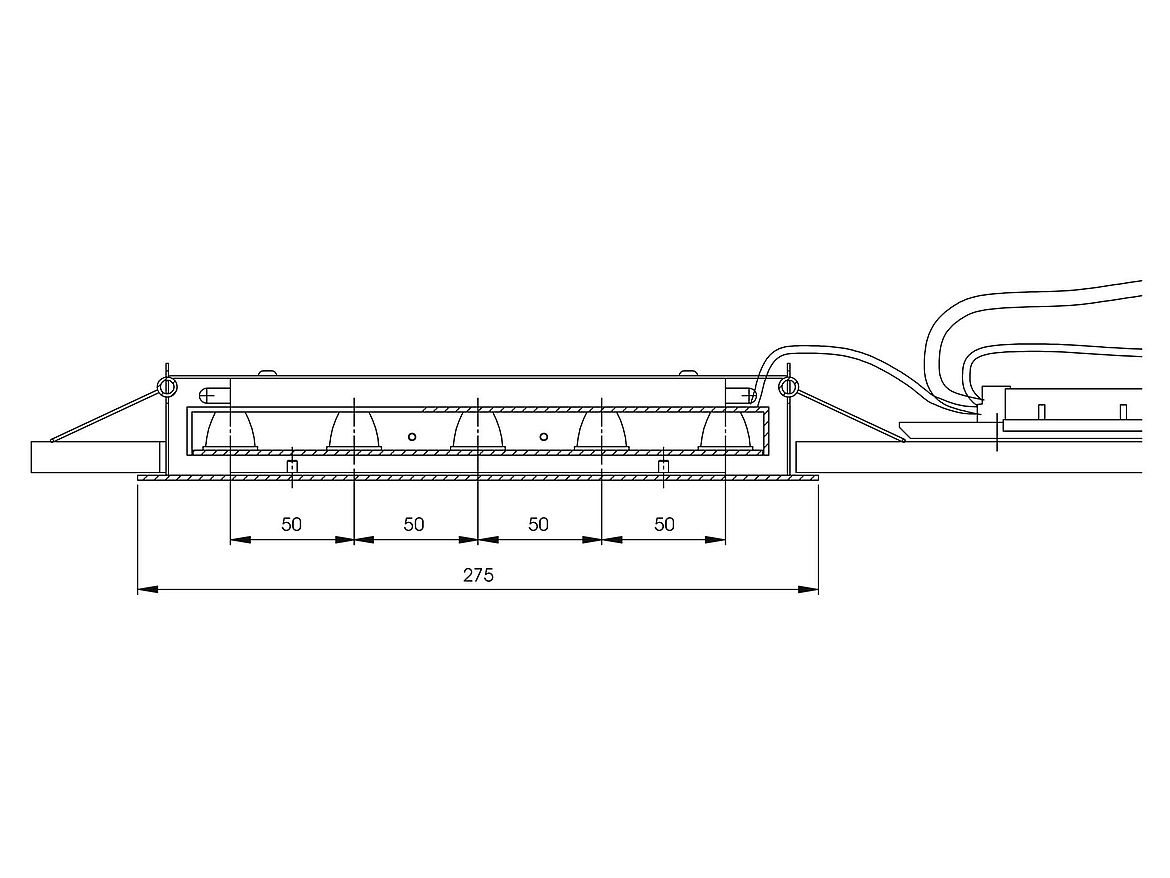

Dimensions

    Total length: 275 mm
    Reflector spacing: 50 mm

Material and surface

Housing: powder-coated aluminium and sheet steel in RAL 9010

Luminaire details

Light colour: 4000 K
Luminaire output: 3625 lm
Optical efficiency: >80%
Light distribution: 2x30°
Dimmability: DALI dimmable
Driver: external in ceiling cavity
Power supply:  500 mA CC
IP 20, IP 65
Protection class I

PUNTEO-N 5x5
