dur-HYTEC S5-C1 clean room ceiling

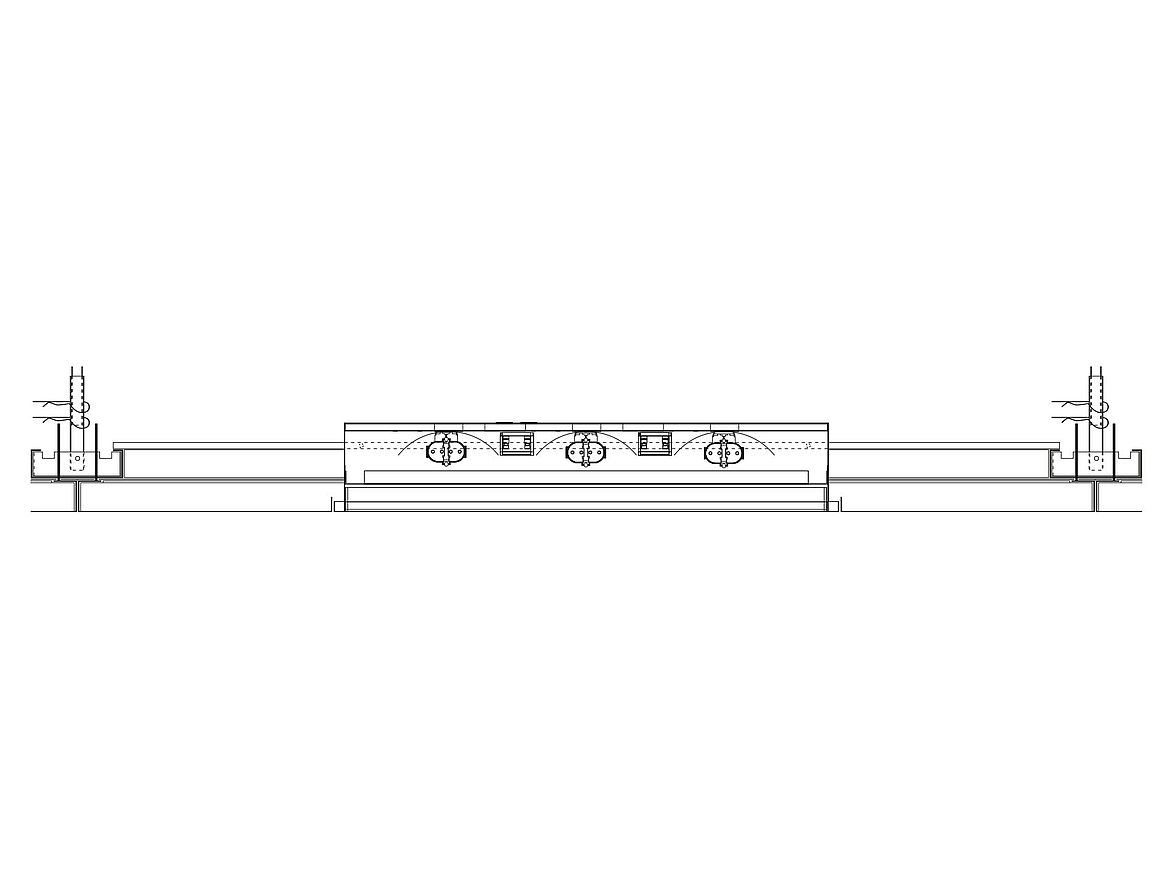

Clean room ceiling with concealed sub-structure

The ceiling system dur-HYTEC S5-C1 can be used up to clean room Class 6 according to DIN EN  ISO 14644. With additional acrylic or silicone pointing, it can be used up to clean room Class 1, without the need for thermal disinfection. S5-C1 has just one seam at the joint end, whereas other clean room ceiling systems have two seams with a T-beam.

  • System can be folded down on all sides.

Technical Information

Dimensions

min. LxW: 600x600 mm
max. LxW: 1200x1200 mm

Material and surface

Galvanized steel, aluminium, stainless steel (brushed)

The galvanised steel and aluminium can be powder-coated with D206-700 white matt (similar to RAL 9016) or according to customer specifications. The coating thickness is approx. 60 microns.

Fire behaviour

durlum supplies the panels non-perforated, non-flammable, as DEFEO with brand protection class A2-s1, d0 as standard.
