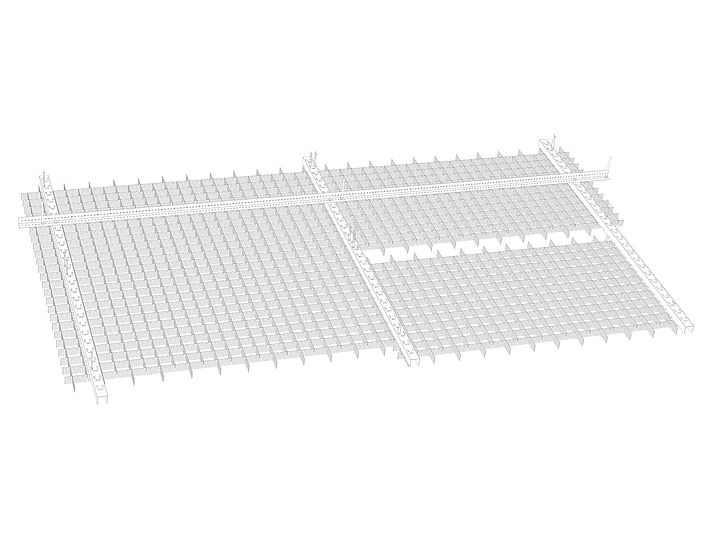

The ETINCELL single-blade louvre is superbly well suited for projects that impose demanding requirements on having a decorative ceiling. The perforation of individual open-cell blades creates reflections that can be used to deflect light.
- Homogeneous ceiling look through the ratio of cell dimension and height
- Aesthetic integration of spot-shaped luminaires is possible
ETINCELL OPEN-CELL CEILING
Dimensions
Panels:
600 x 600mm | 625 x 625mm | 1200 x 600mm | 1250 x 625mm
Height: variable, 30 – 50mm
Traverse:
U94:
Blade height: 30-50mm
Cell dimension: 30-60mm
T15/T24 carrier:
Blade height: 30-50mm
Cell dimension: 25-100mm
U 1000 H:
Blade height:30-50mm
Cell dimension: 25-60mm
Material and surface
Aluminium 0.6mm. Surface strip-painted
Louvers: white, black, RAL 9006, natural anodised.
Acoustics and perforation
Micro-perforation: Ø=1.5mm | Holes in offset rows | Free cross section: 11%
Perfo 2.5: Ø=2.5mm | Holes in straight rows | Free cross section: 19.6%
Noise absorption: in conjunction with broad-band absorber dur-SONIC TUBE (αw= 0,80; NRC= 0,75)
