GEO + PUNTEO-Q50 (IP65)

Double blade louvre with integrated LED downlight

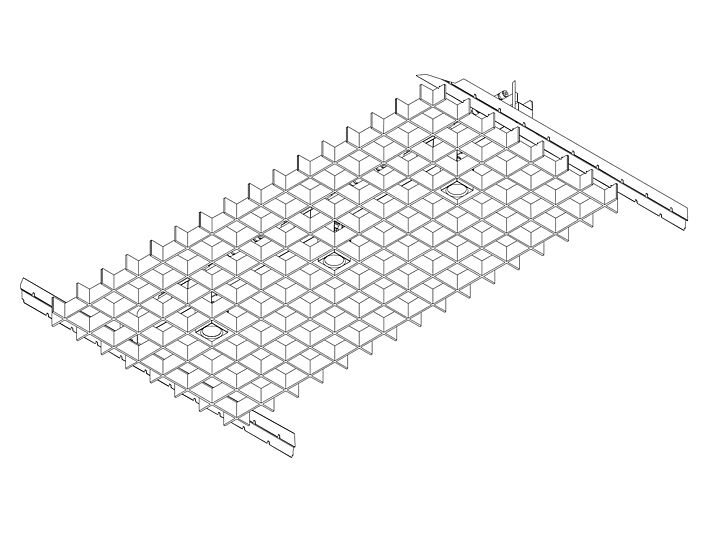

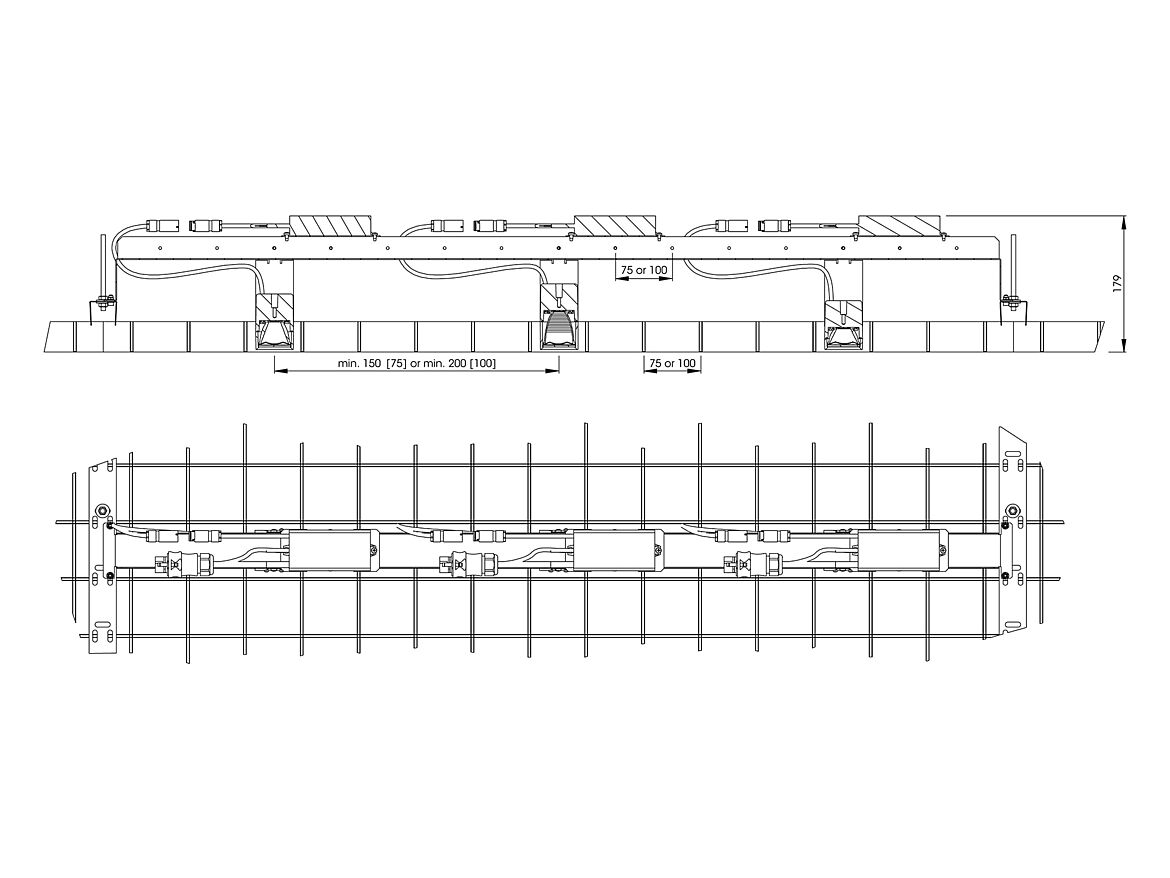

The GEO open-cell ceiling is timeless, decorative and elegant. The versatile double blade louvre is available in several versions, giving you plenty of design freedom. From a cell size of 75 mm, the PUNTEO-Q50 LED downlight can be inconspicuously integrated into the ceiling without the need for a module plate.

  • Each panel of the ceiling-lighting combination can be folded down individually.
  • Homogeneous illumination thanks to luminaire design.
  • Technical installations, such as sprinklers, can be easily integrated.

Technical Information

GEO details

Panels:
1200x600 mm
1250x625 mm

Louvre configuration (Web Width | Louvre height | Cell size):
4 mm | 42 mm | 75/86/100/120/150/200 mm
9 mm | 40 mm | 75/86/100/120/150/200 mm
15 mm | 37 mm | 75/86/100/120/150/200 mm

Material and surface:
Material: aluminium 0.8 mm
Louvre colour: white, black, RAL 9006, natural anodised. Other colours on request

Acoustics:
Noise absorption: in conjunction with broad-band absorber dur-SONIC TUBE  (αw=  0,80; NRC=  0,75)

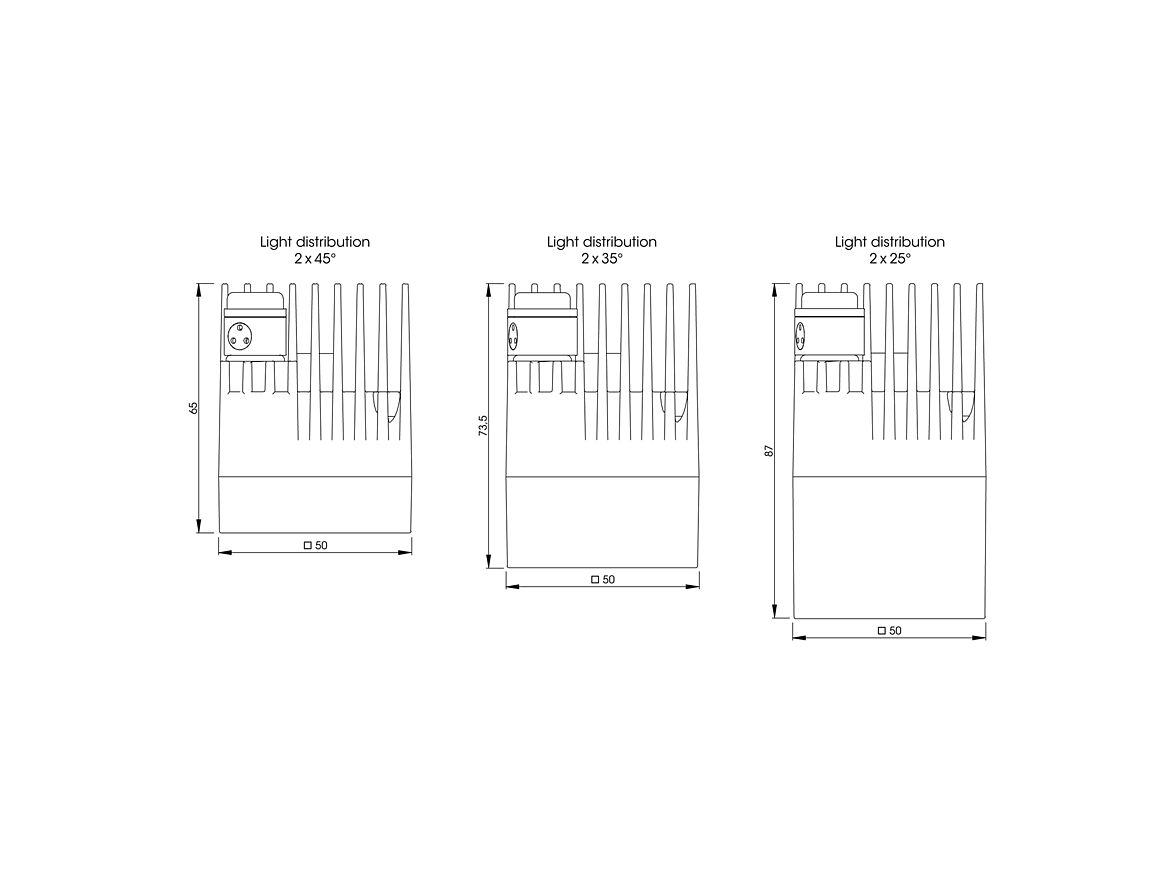

PUNTEO-Q50 luminaire details

Variant 1:
Dimensions (LxWxH): 50x50x65 mm
Light distribution: 2x45°
Light colour: 3000 K | 4000 K (CRI > 80)
LED output: 1779 lm (3000 K) | 1860 lm (4000 K)
Optical efficiency: 90 %

Variant 2:
Dimensions (LxWxH): 50x50x73.5 mm
Light distribution: 2x35°
Light colour: 3000 K | 4000 K (CRI > 80)
LED output: 1779 lm (3000 K) | 1860 lm (4000 K)
Optical efficiency: 85 %

Variant 3:
Dimensions (LxWxH): 50x50x87 mm
Light distribution: 2x25°
Light colour: 3000 K | 4000 K (CRI > 80)
LED output: 1779 lm (3000 K) | 1860 lm (4000 K)
Optical efficiency: 80 %

General technical specifications:
Housing surface: black, white
Dimmability: DALI dimmable
LED driver: external in carrier
Power supply: 500 mA CC
Protection system: IP 65
Protection class: II
