dur-SOLO RHOMBOS Raft ceiling Type 1&2

Expanded metal ceilings that appear to float

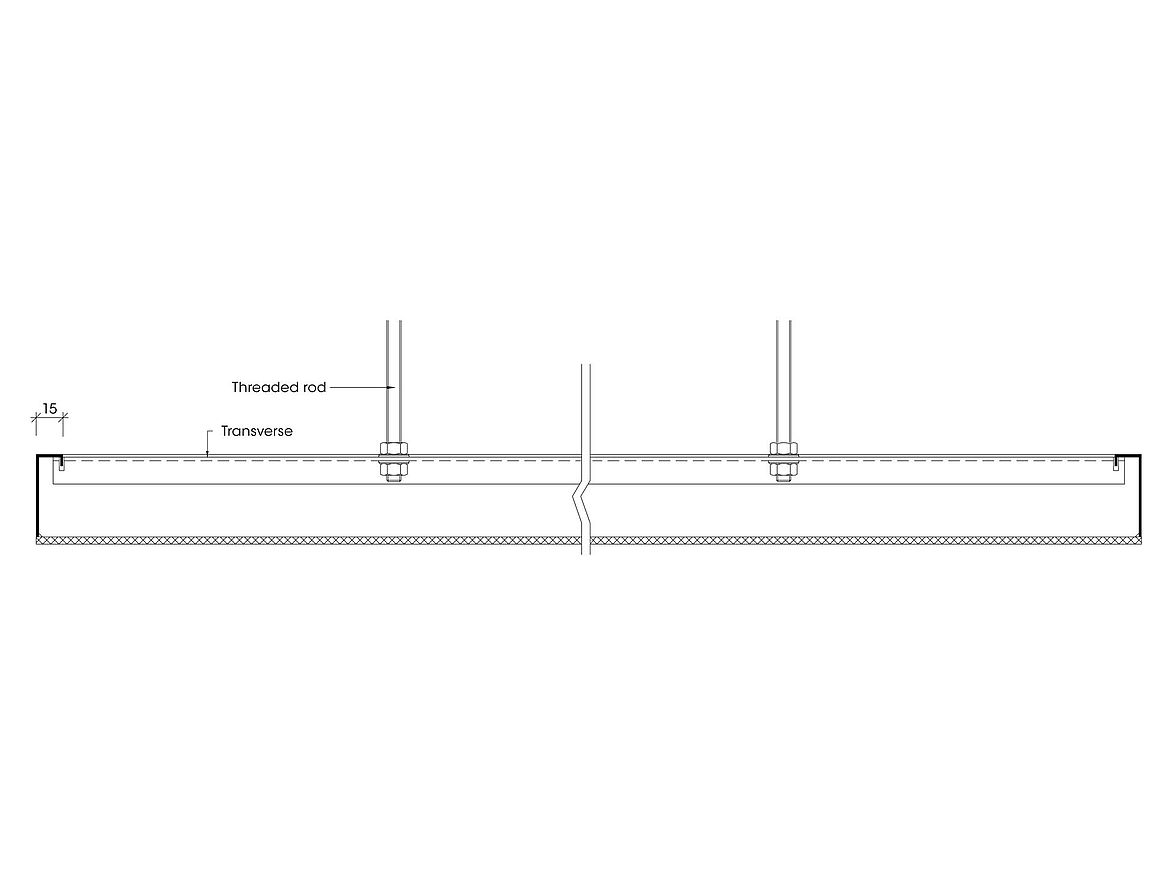

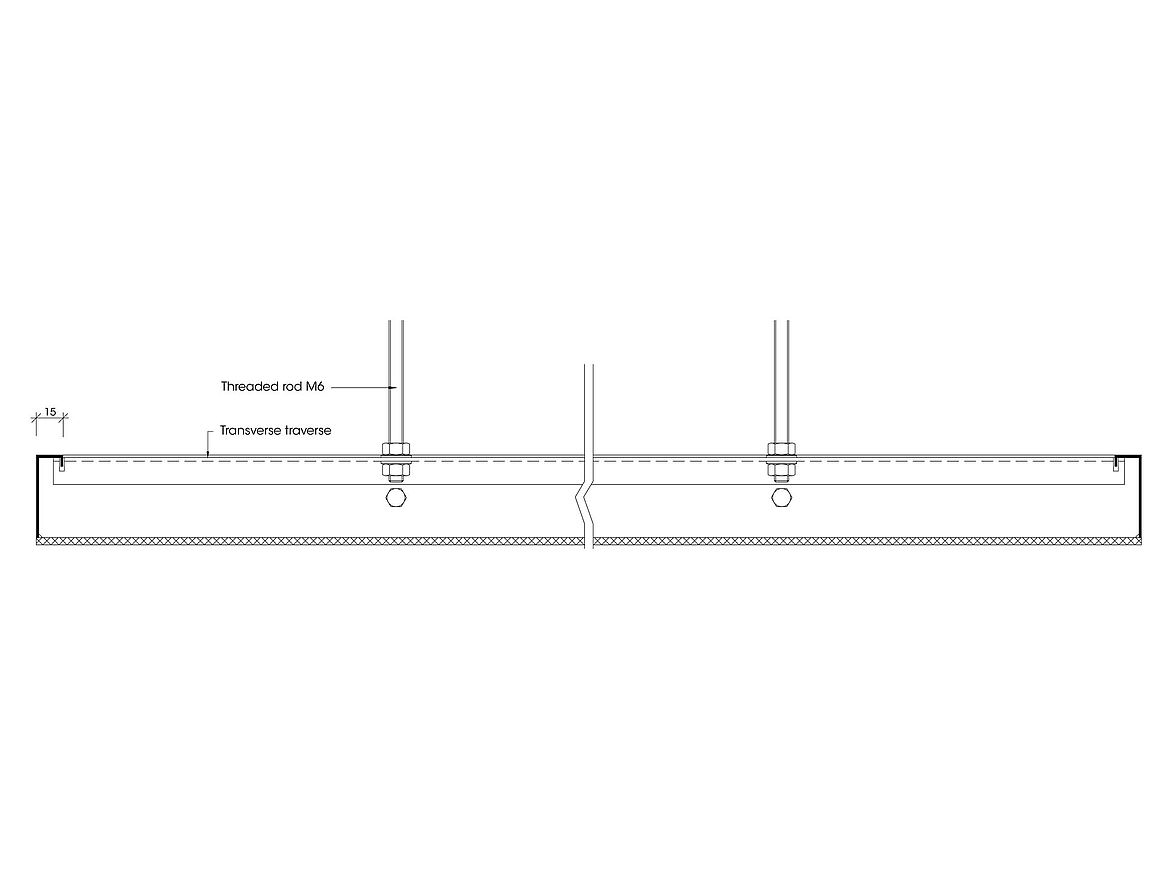

The elegant dur-SOLO RHOMBOS raft ceilings appear to be weightless and make a striking visual impression. These expanded metal ceilings are versatile, flexible and easy to mount. dur-SOLO RHOMBOS is either available as a raft comprising a single panel (Type 1) or several panels joined together (Type 2).

  • ideal for improving room acoustics
  • optionally combinable with core-activated concrete ceilings
  • concealed sub-structure

Technical Information

Dimensions

Length: ≤ 3000 mm
Width: ≤ 1100 mm
Recommended surface area: ≤ 3.0 m²
Surface-welded frame as standard, with other version variants available.

Material and surface

Galvanised steel, aluminium on request: silver metallic (similar to RAL 9006), white (RAL 9016 matt DUROPLAN Type 1), brilliant chrome with clear lacquer. Other powder coatings are possible.

Acoustics and meshes

As standard, sound absorption with black acoustic fleece (αw= 0,60; NRC=0,60) Standard mesh sizes: M110, M260, M400. Other mesh sizes are possible.

Fire behaviour

Standard: A2-s1.dO to EN13501-01 (non-combustible)

Dimensions

Length: ≤ 3000 mm
Width: ≤ 1100 mm
Recommended surface area: ≤ 3.0 m²
Surface-welded frame as standard, with other version variants available.

Material and surface

Galvanised steel, aluminium on request: silver metallic (similar to RAL 9006), white (RAL 9016 matt DUROPLAN Type 1), brilliant chrome with clear lacquer. Other powder coatings are possible.

Acoustics and meshes

As standard, sound absorption with black acoustic fleece (αw= 0,60; NRC=0,60) Standard mesh sizes: M110, M260, M400. Other mesh sizes are possible.

Fire behaviour

Standard: A2-s1.dO to EN13501-01 (non-combustible)
