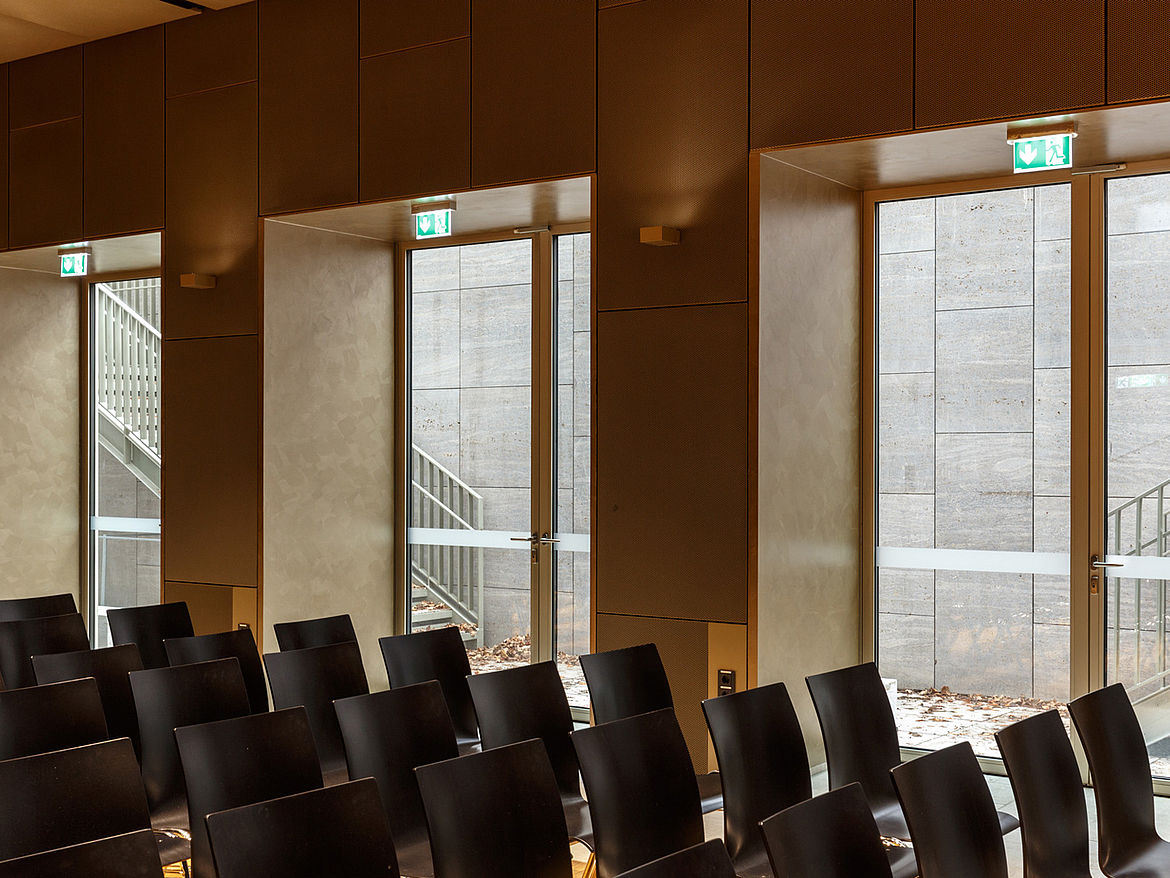

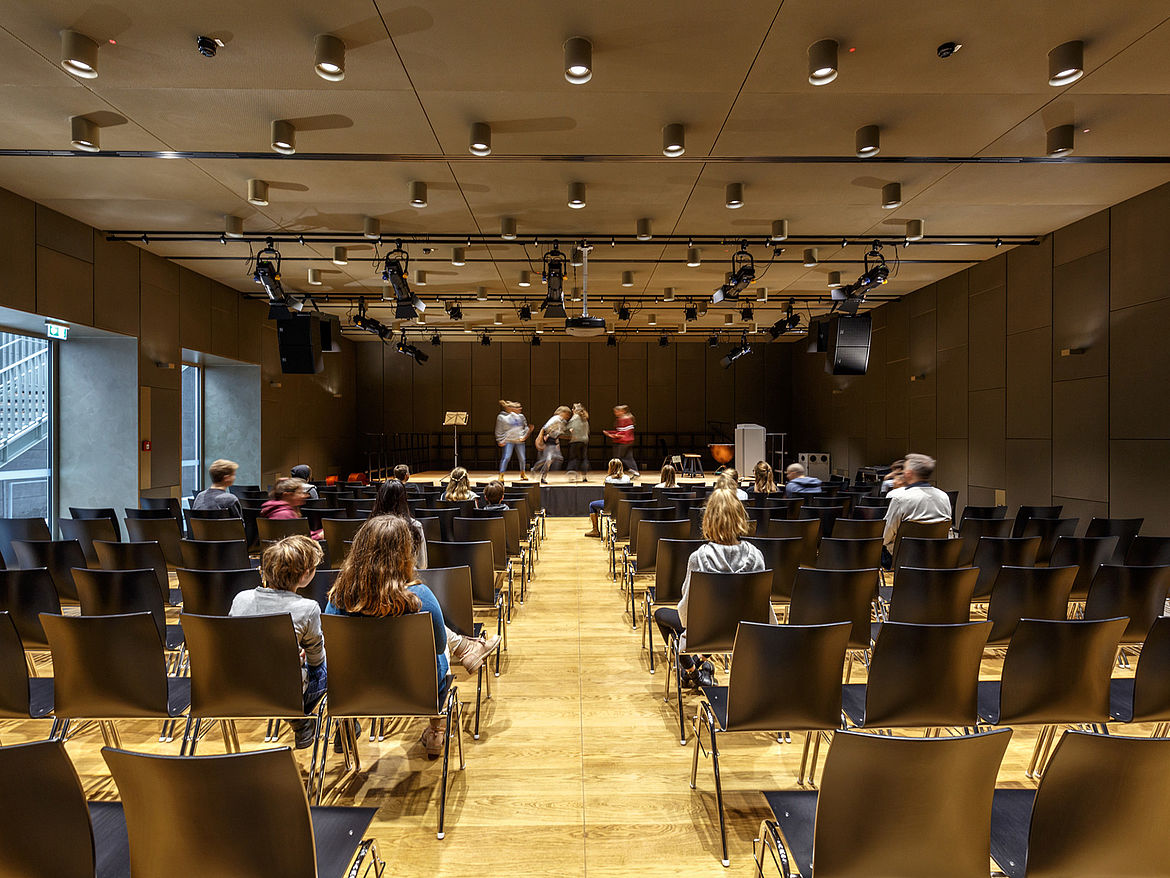

A multi-purpose area in which ceiling and walls are in harmony: Wilhelmsgymnasium Munich [DE] | Photo: © Peter Schinzler
A multi-purpose area in which ceiling and walls are in harmony: Wilhelmsgymnasium Munich [DE] | Photo: © Peter Schinzler

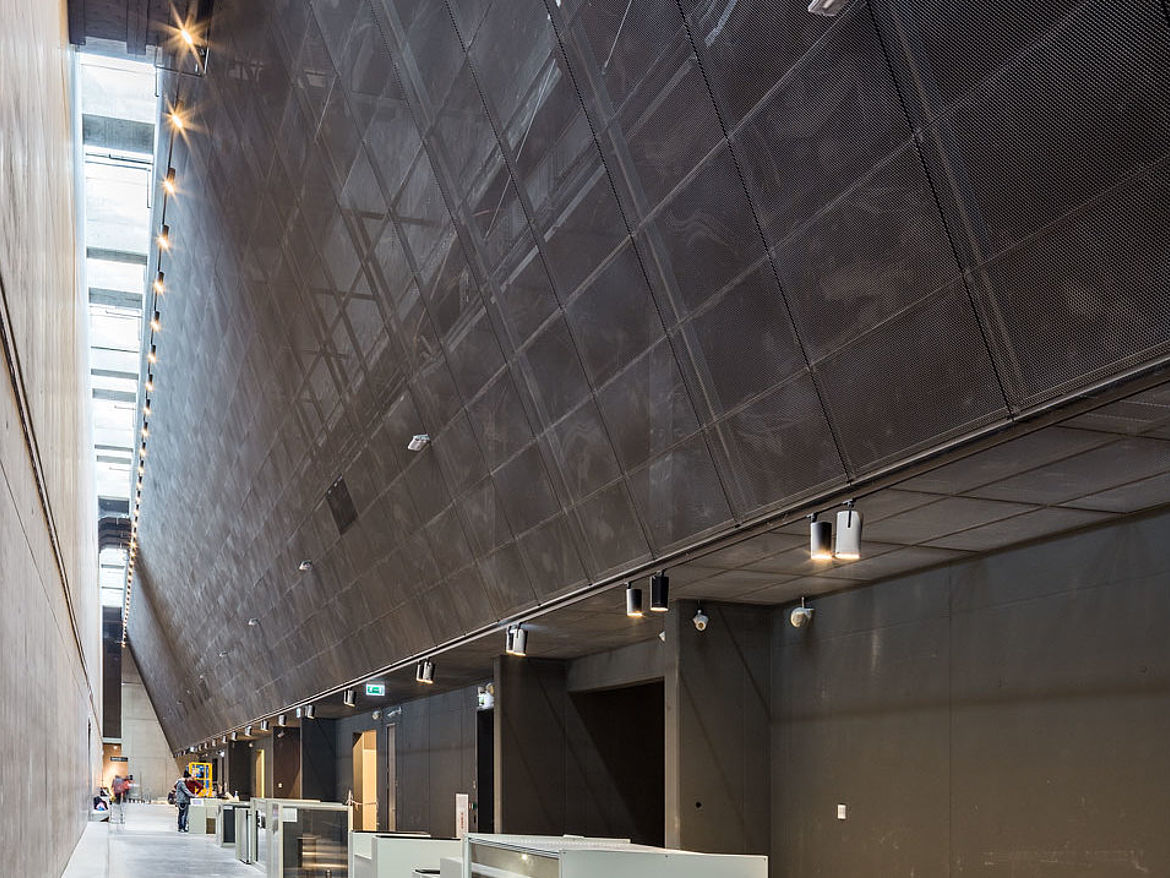

WS2 hook-on system in the Museum of the Second World War, Gdansk [PL] | Photo: © Marcin Czechowicz, MCM Production [PL]
Versatile and flexible: The metal wall cladding WS4 is a hook-on system that is characterised by a great deal of design freedom. The variety of panel sizes, perforations, surfaces and joint patterns allows project-specific solutions. The classic wall cladding can be extended with optional functional properties such as acoustic effectiveness, dur-GRAPHICS printings at specific points or over a large area or it can be used as a magnetic board in the everyday work life.
- Concealed substructure
- Can be dismantled easily and without the need for tools
- Interlocking connection between wall carrier and wall panel
Metal wall cladding WS4
Dimensions
Height: ≤ 3000 mm
Width: ≤ 1250 mm
Recommended surface area: max. 2.25 m²
Material and surface
Standard material: galvanised sheet steel 1.00 mm. Other materials like aluminium (e.g. coil anodised or mirror polished) or stainless steel (e.g. brushed or mirror polished) are available on request.
Galvanised steel sheet, aluminium: Standard powder coating: white (RAL 9016 matt DUROPLAN type 1). Coat thickness: 60 µm. Other powder coatings are available on request.
Aluminium: coil anodised or mirror polished
Stainless steel: brushed or mirror polished
Acoustics and perforation
Standard perforation: RG-L15. Other perforations on request
As standard, sound absorption with black acoustic fleece
Printing
Powder-coated wall panels, also printable with motifs and textures
Fire behaviour
Standard, smooth or perforated: A2-s1.dO according to EN13501-01 (non inflammable)
