OMEGA 100/100E lighting channel

OMEGA 100 lighting channels integrated in a special version of raft ceiling

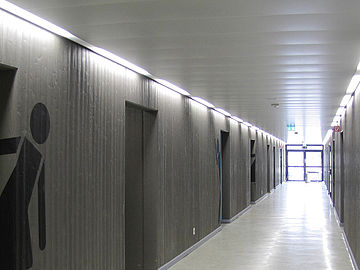

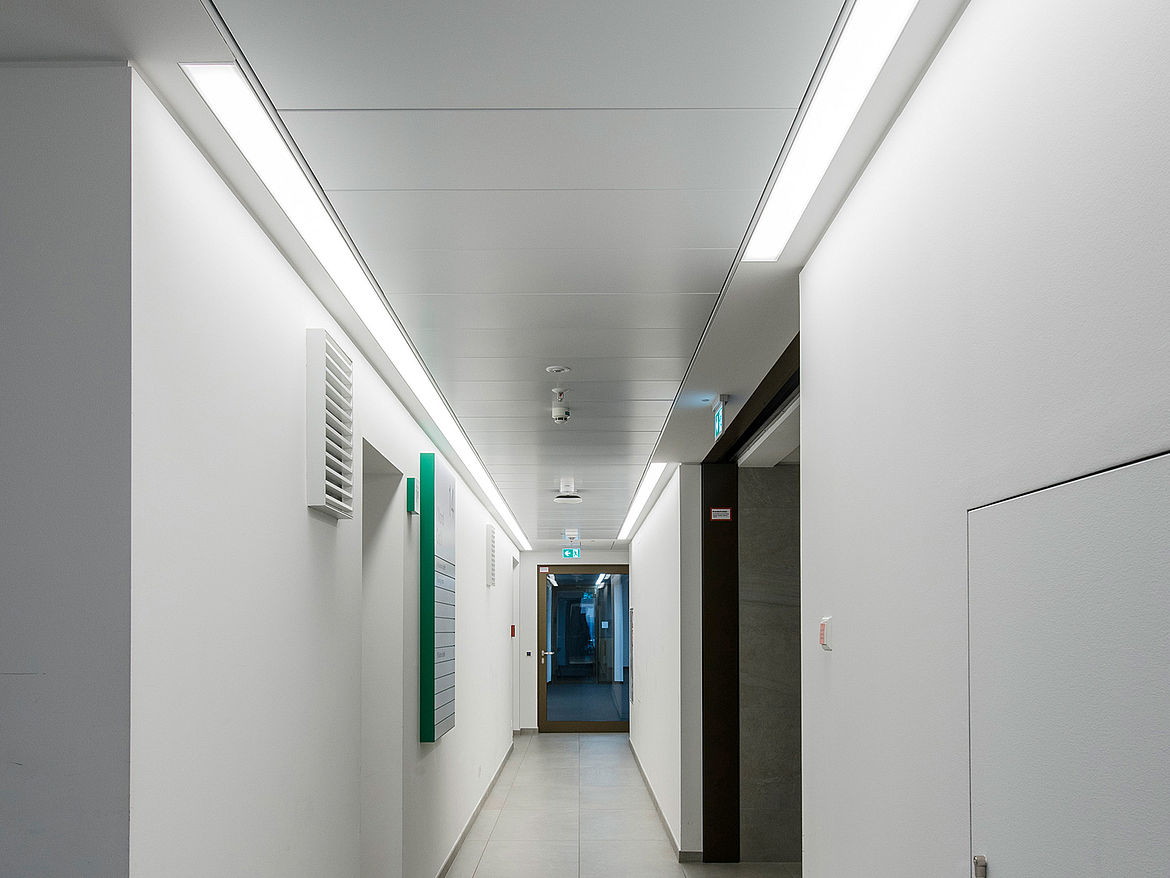

OMEGA 100 lighting channel system integrated in fire protection ceilings in reception areas and corridors, with opal cover,

Designed for integration in suspended ceilings, this symmetrically radiant lighting channel system made of aluminium has a compellingly elegant design. The luminaire is available with various covers and, thanks to its wind protection, can if so desired be adapted for outdoor use. With the addition of SHELLY lighting technology, the lighting channel system can be used as for downlighting and as a wallwasher system.

Endless traverse is possible
Integration of technical building elements is possible.
Can act as a sub-structure for metal ceilings.

Lighting channel

Width: 100 mm
Height: 73 mm
Surface: anodised aluminium, powder-coated on request

Covers

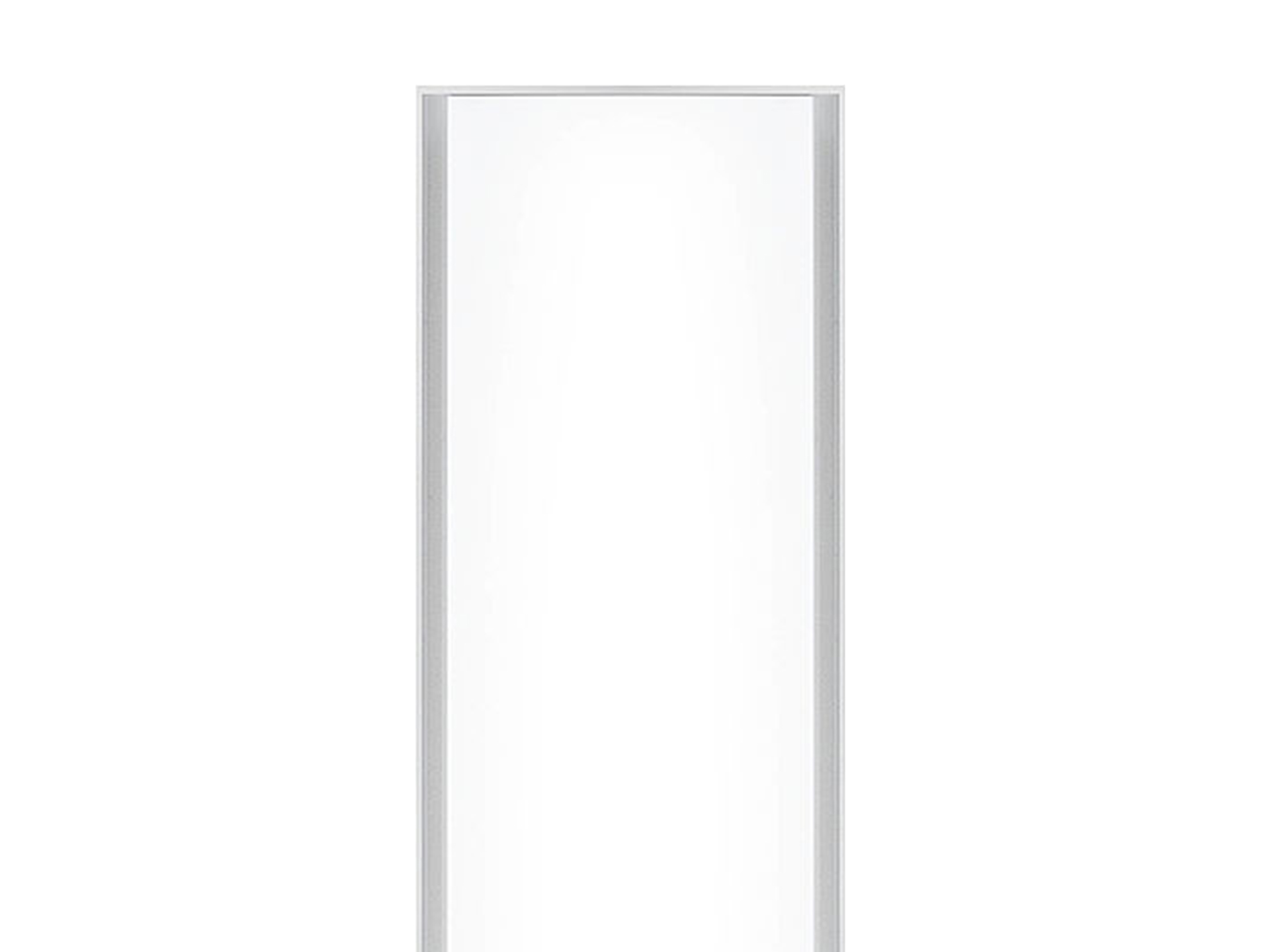

PMMA opal or microprismatic for UGR< 19 applications

Luminaire details

Light colour: 3000 K, 4000 K, CRI > 80
Luminaire output: 4626 lm/m (3000 K), 4832 lm/m (4000 K)
Dimmability: DALI dimmable
Driver: integrated
Power supply: 230 V/50 Hz
Protection degree: IP 20
Protection class: I

Lighting channel

Width: 100 mm
Height: 73 mm
Surface: anodised aluminium, powder-coated on request

Covers

PMMA opal or microprismatic for UGR< 19 applications

Luminaire details

Lighting colour: 2700 K to 5000 K (activatable or individual colour), CRI > 80
Luminaire output: up to 5375 lm/m
Dimmability: DALI dimmable
Driver: integrated
Power supply: 230 V/50 Hz
Protection degree: IP 20
Protection class: I

Lighting channel

Width: 100 mm
Height: 73 mm
Surface: anodised aluminium, powder-coated on request

Covers

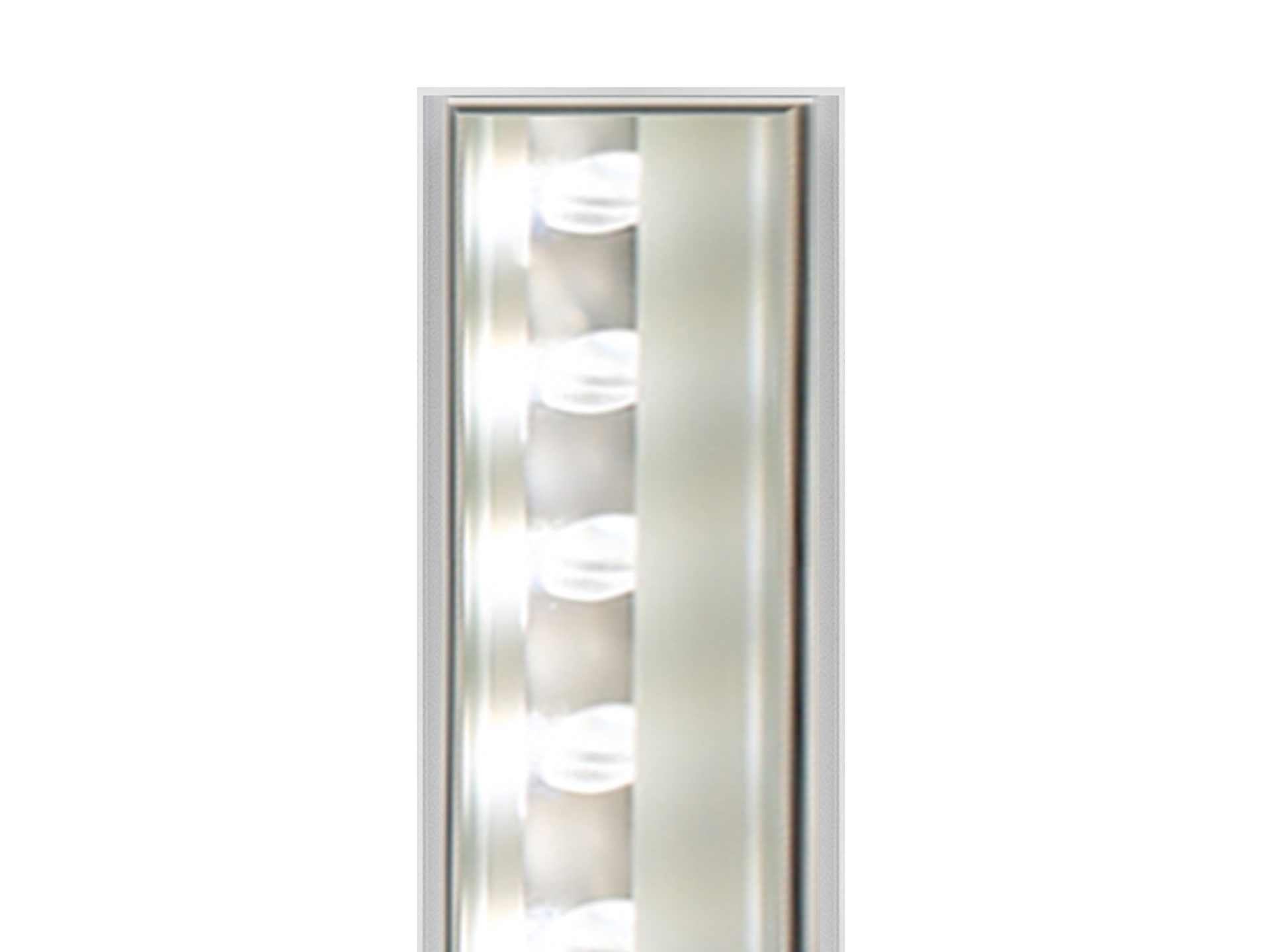

Special reflectors for wallwasher applications

Luminaire details
