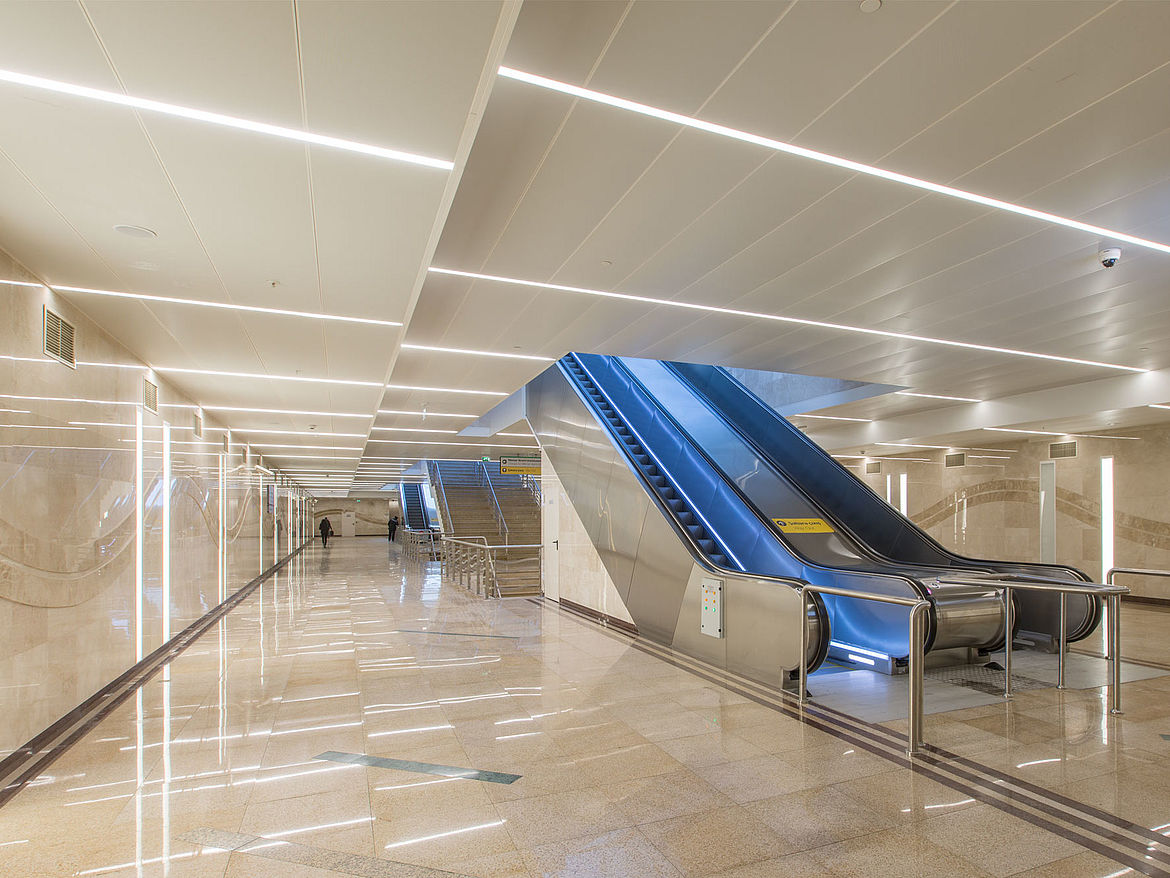

Ceiling-lighting system S-OMEGA with integrated OMEGA 63 lighting channels | Subway station Memar Ajami, Baku [AZ]

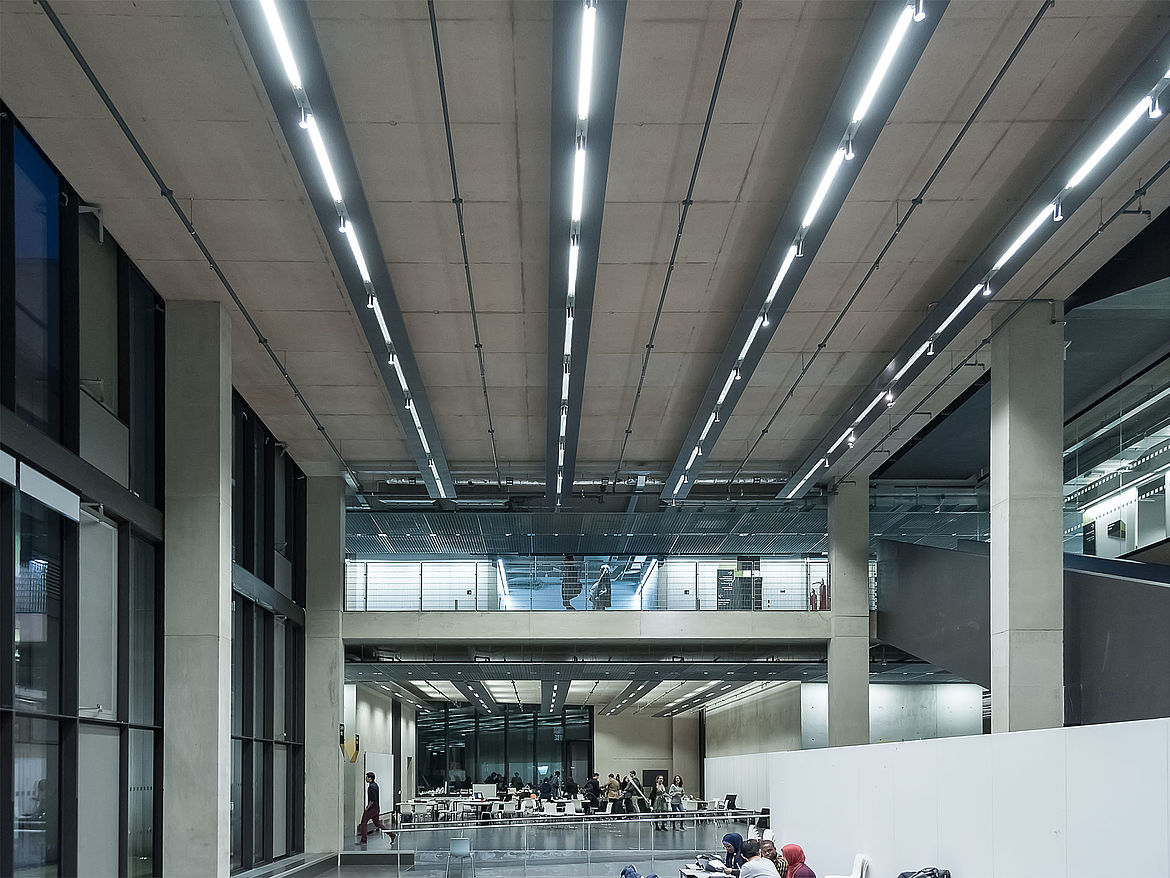

A total of 2.4 km of S- OMEGA ceiling panels can be found in all areas of the new Faculty of Architecture and in the campus library | University of Greenwich in the UK

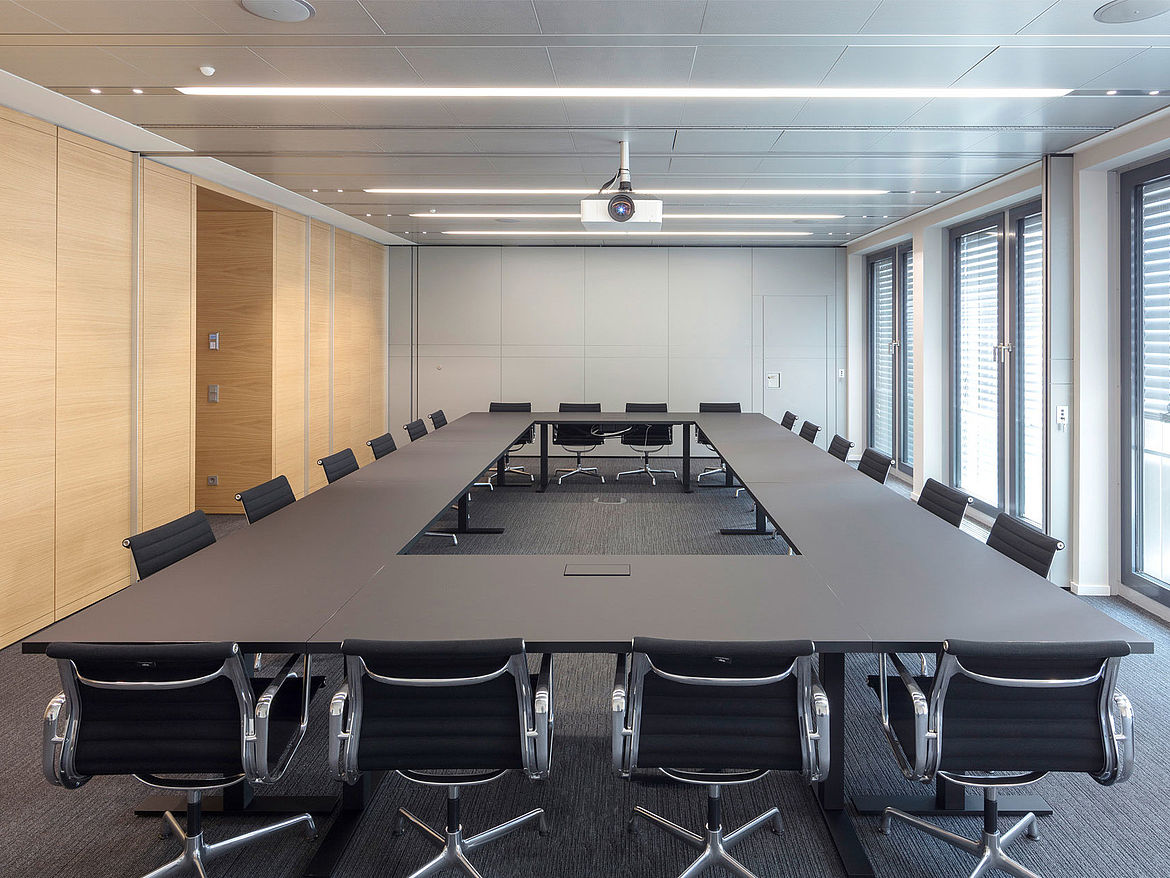

S-OMEGA ceiling-lighting combination comprising rectangular metal panels with integrated OMEGA 100 lighting channels | Rheinbahn AG in Düsseldorf

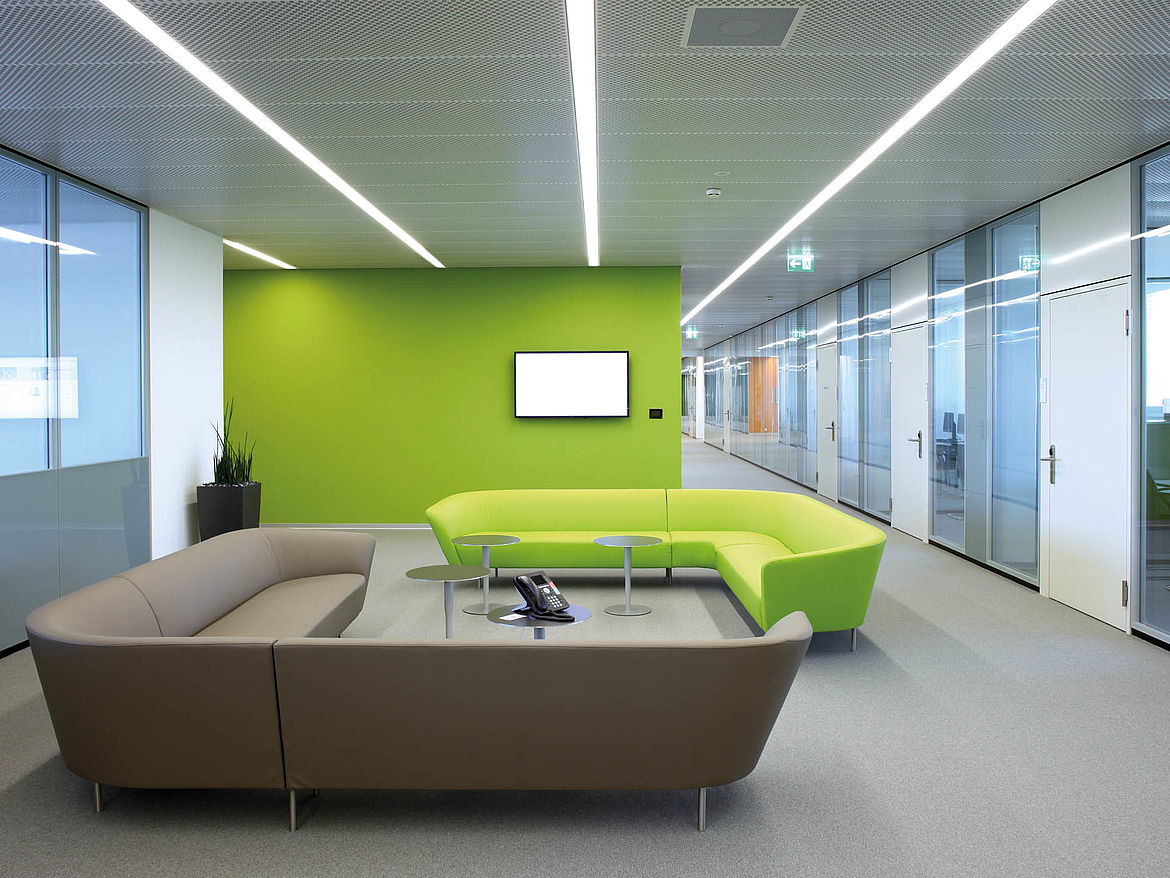

S-OMEGA lighting channel system at Roche Diagnostics in Switzerland

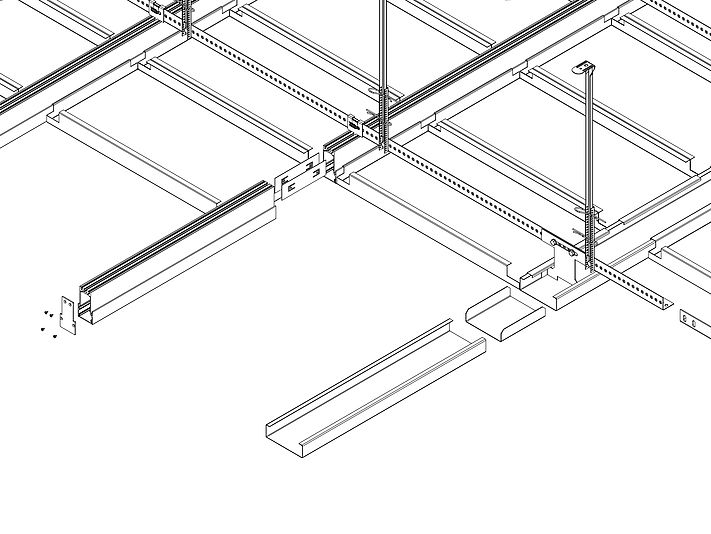

The innovative S-OMEGA linear ceiling and lighting system from durlum is supported by the OMEGA lighting channels integrated in the ceiling. This ceiling and lighting combination can be used in a versatile range of ways and is particularly well suited to use in office buildings and in representative areas.
- Lighting channel as a load-bearing element
- Simply suspend ceiling panels from it
- Clear joint pattern
- Simple Plug & Play

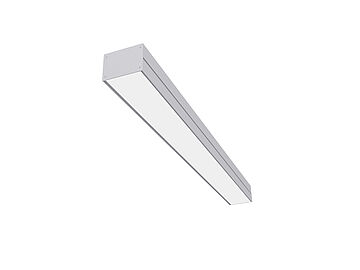

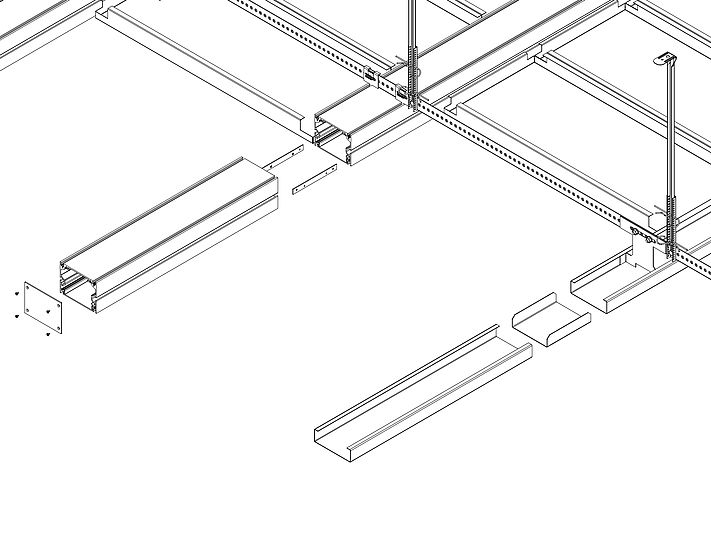

S-OMEGA 100 ceiling and lighting system

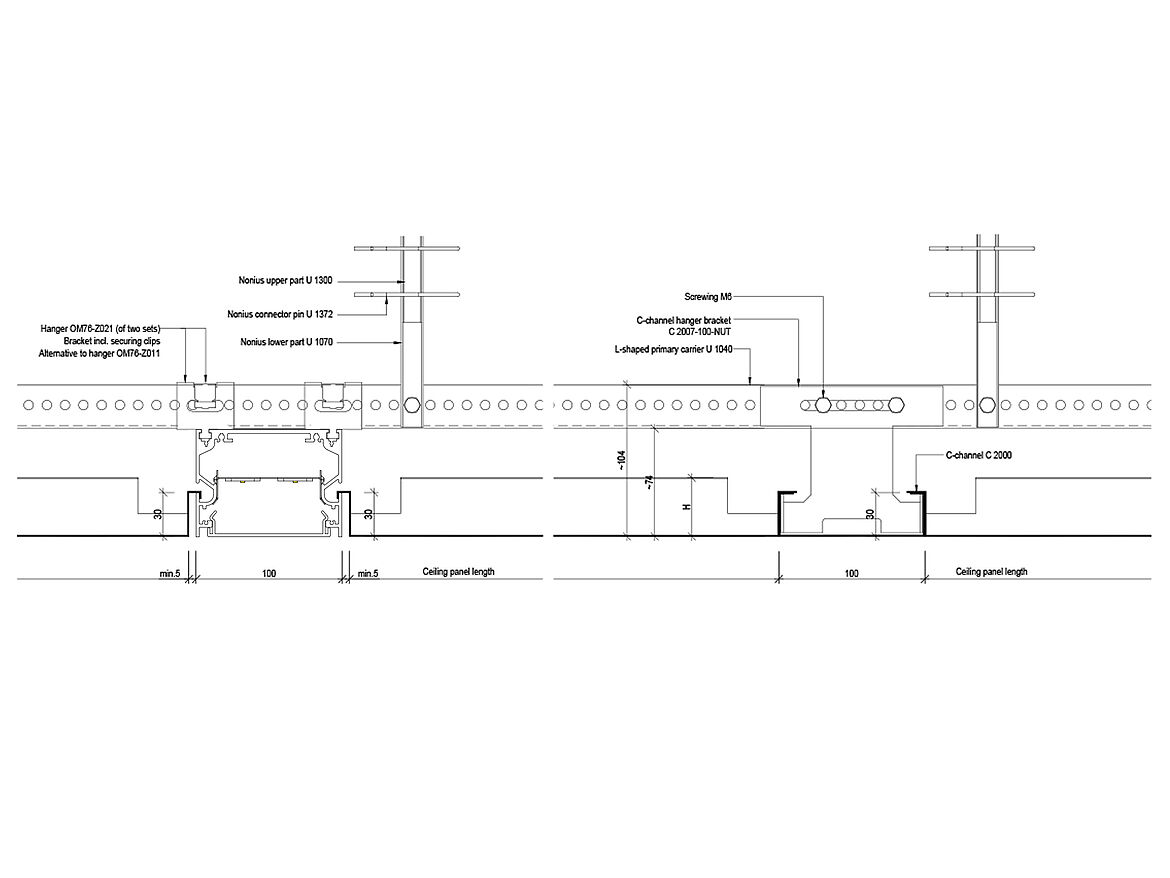

Dimensions and luminaire details
Panel length: ≤3500mm
Panel width: ≤1300mm
Recommended panel area: ≤3m²
Lighting channel: W=100mm, H=73mm, L=max. 6000mm endlessly installable
Luminaire insert: L=1120mm or 2240mm. Other lengths available upon request
Light colour: 3000K, 4000K, CRI>90
Power: 30W/m
Luminaire output: 3807lm/m (3000K), 4084lm/m (4000K)
Dimmability: DALI dimmable
Driver: integrated
Power supply: 230V/50Hz
Protection system: IP 20
Protection class: I
Wind-proof and ball impact-proof protection can be provided as cost options.
Material and surface
Rectangular metal panel: Galvanized steel sheet with powder coating. Aluminium with powder coating, coil anodised or mirror polished. Stainless steel brushed or mirror polished.
Standard powder coating: White (RAL 9016 matt DUROPLAN Type 1). Coat thickness: 60 microns Other powder coatings are possible.
Printing
Powder-coated cut sections, also printable with motifs and textures
Lighting channel: Anodised aluminium profile, opal acrylic glass cover. Other lighting technologies are available.
Acoustics and perforation
Standard perforation on rectangular metal panel: RG-L15. As standard, sound absorption with black durlum acoustic fleece [αw=approx. 0.73]. Other perforations and absorption materials are possible.
Fire behaviour
Rectangular metal panel: Smooth or perforated as standard: Non-combustible DEFEO with fire protection classification A2-s1.dO
Made of steel plate: Optional DEFEO PLUS [A1]

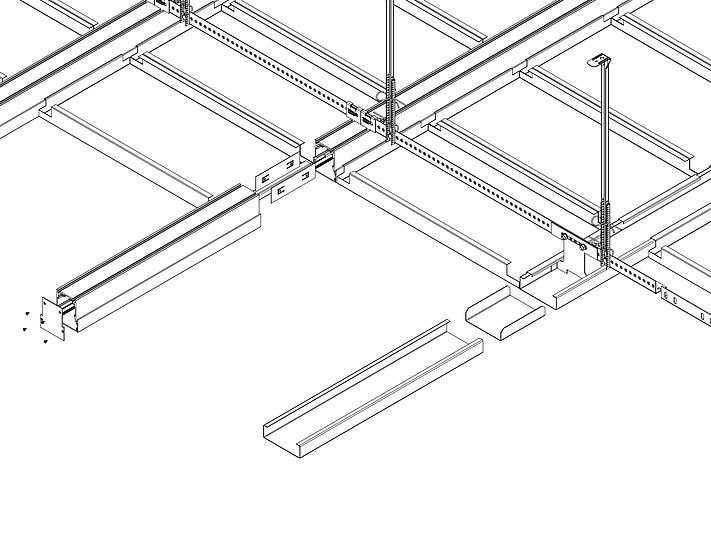

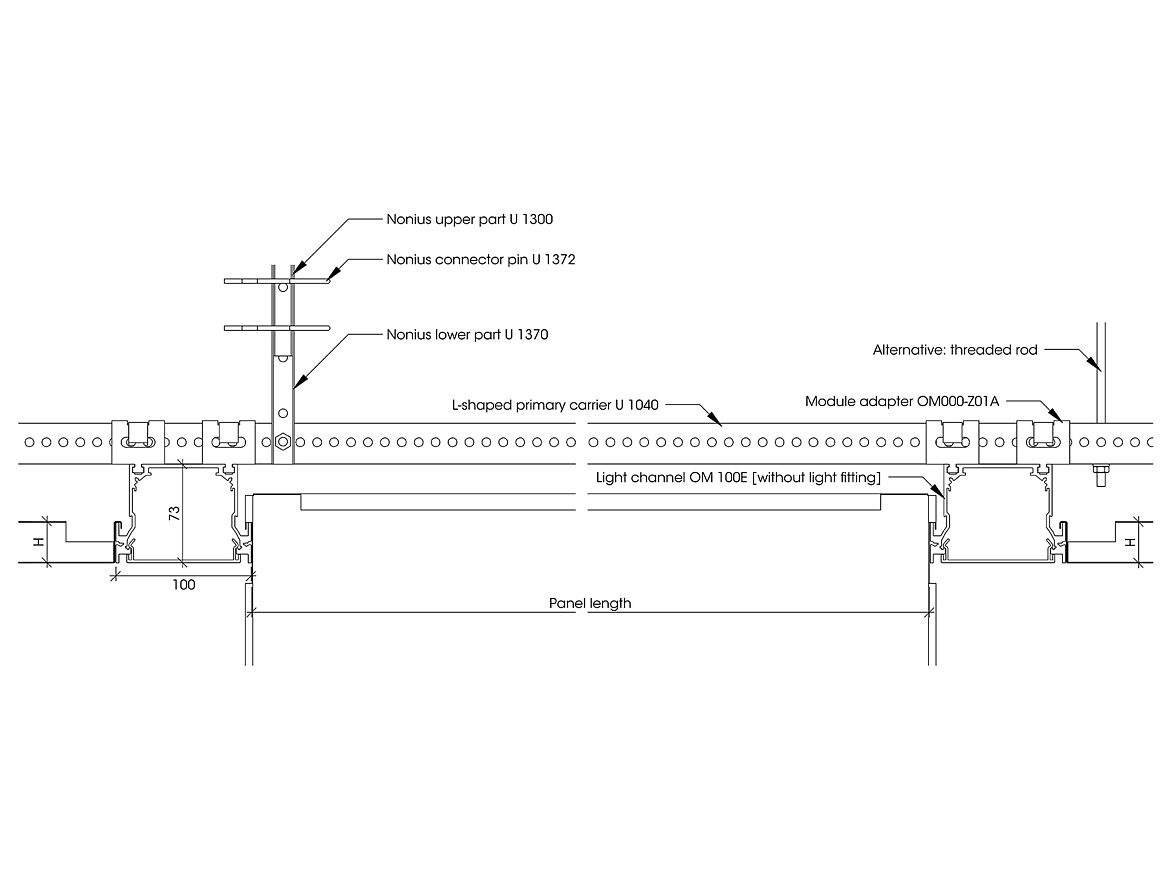

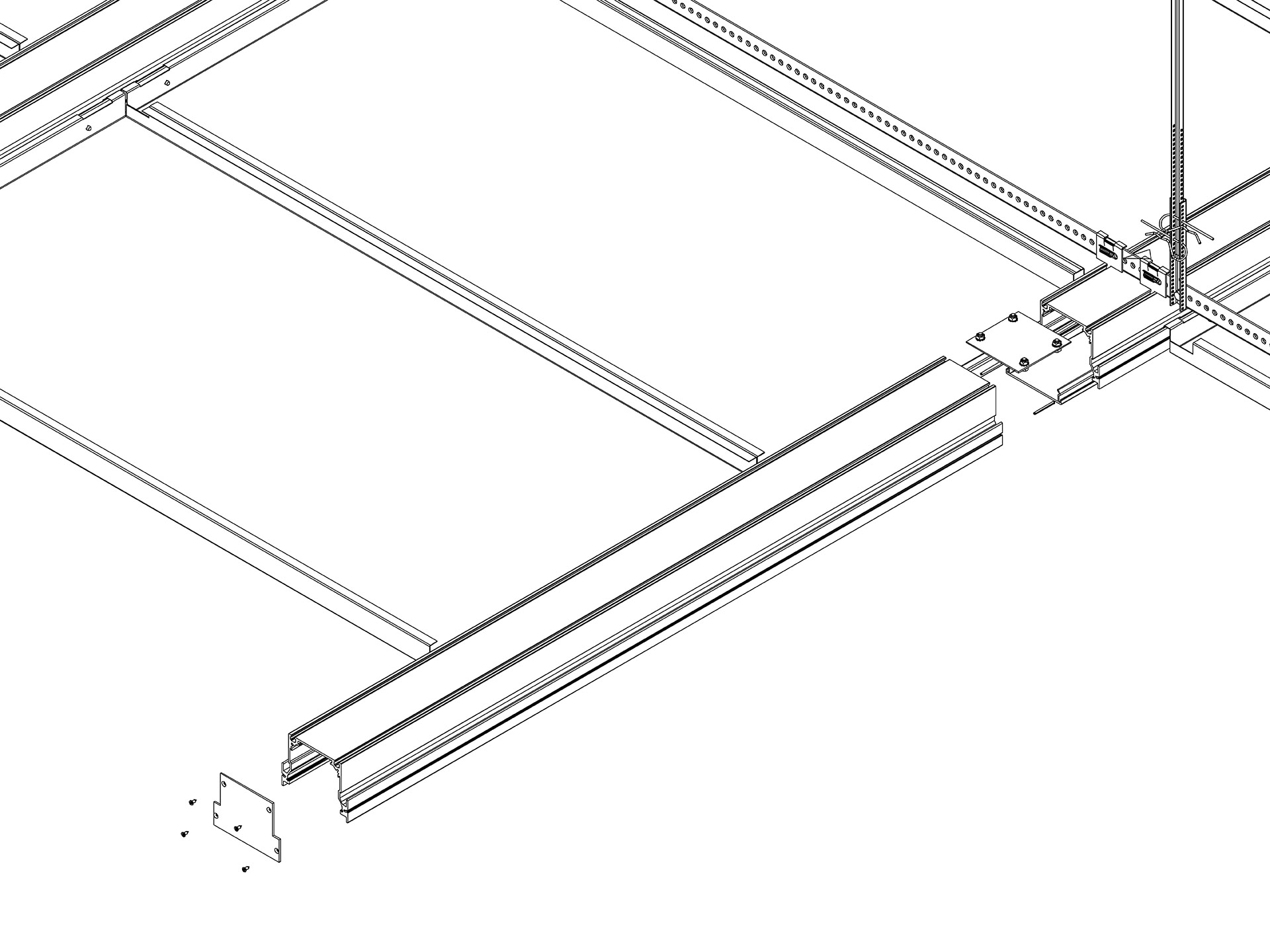

S-OMEGA 100E ceiling and lighting system
Dimensions and luminaire details
Panel length: ≤3500mm
Panel width: ≤1300mm
Recommended panel area: ≤3m²
Lighting channel: W=100mm, H=73mm, L=max. 6000mm endlessly installable
Luminaire insert: L=1120mm or 2240 mm. Other lengths available upon request
Light colour: 3000K, 4000K, CRI>90
Power: 30W/m
Luminaire output: 3807lm/m (3000K), 4084lm/m (4000K)
Dimmability: DALI dimmable
Driver: integrated
Power supply: 230V/50Hz
Protection system: IP 20
Protection class: I
Wind-proof and ball impact-proof protection can be provided as cost options.
Material and surface
Rectangular metal panel: Galvanized steel sheet with powder coating. Aluminium with powder coating, coil anodised or mirror polished. Stainless steel brushed or mirror polished.
Standard powder coating: White (RAL 9016 matt DUROPLAN Type 1). Coat thickness: 60 microns Other powder coatings are possible.
Printing
Powder-coated cut sections, also printable with motifs and textures
Lighting channel: Anodised aluminium profile, opal acrylic glass cover. Other lighting technologies are available.
Acoustics and perforation
Standard perforation on rectangular metal panel: RG-L15. As standard, sound absorption with black durlum acoustic fleece [αw=approx. 0.73]. Other perforations and absorption materials are possible.
Fire behaviour
Rectangular metal panel: Smooth or perforated as standard: Non-combustible DEFEO with fire protection classification A2-s1.dO
Made of steel plate: Optional DEFEO PLUS [A1]

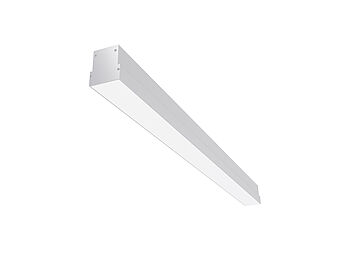

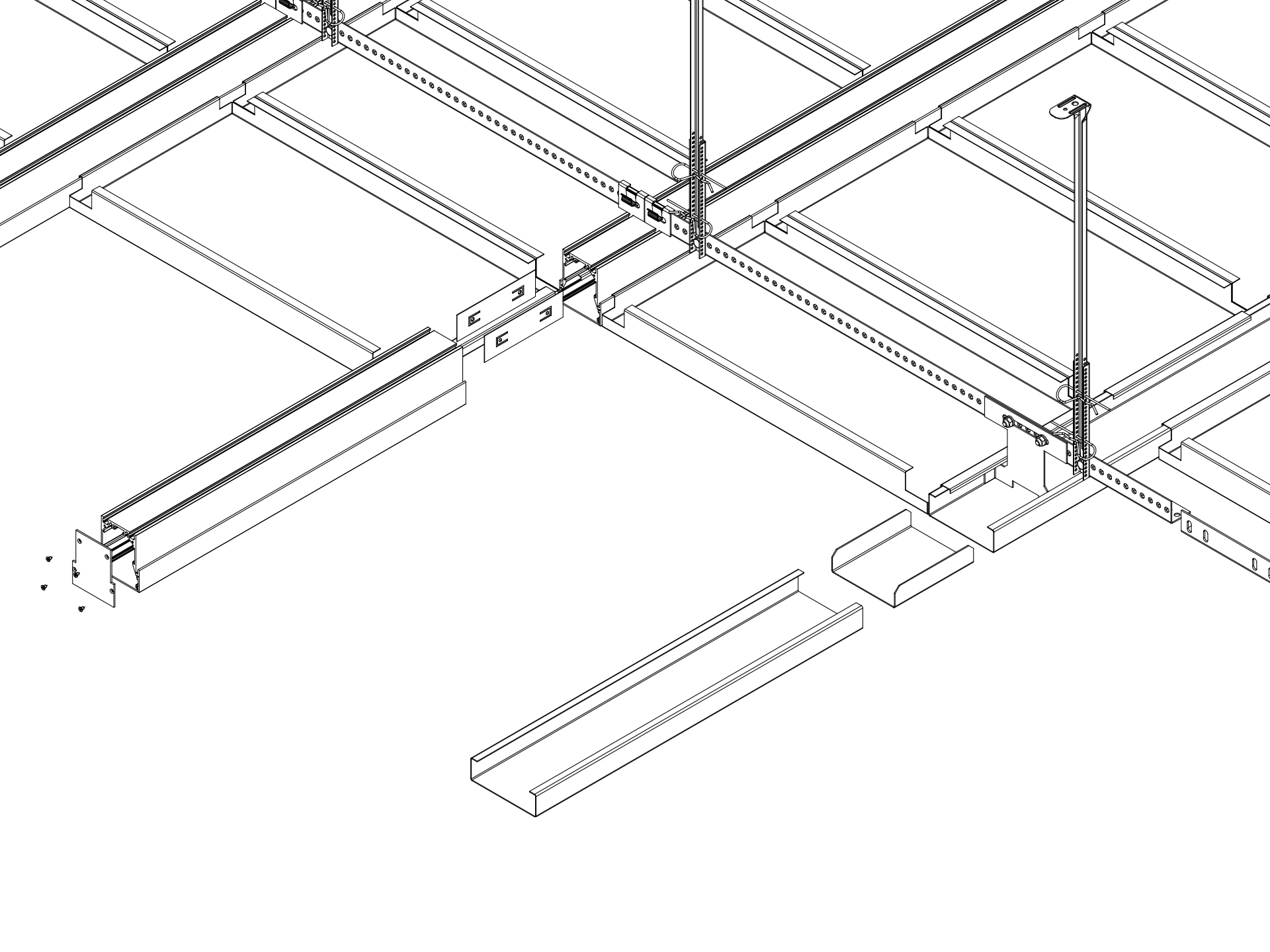

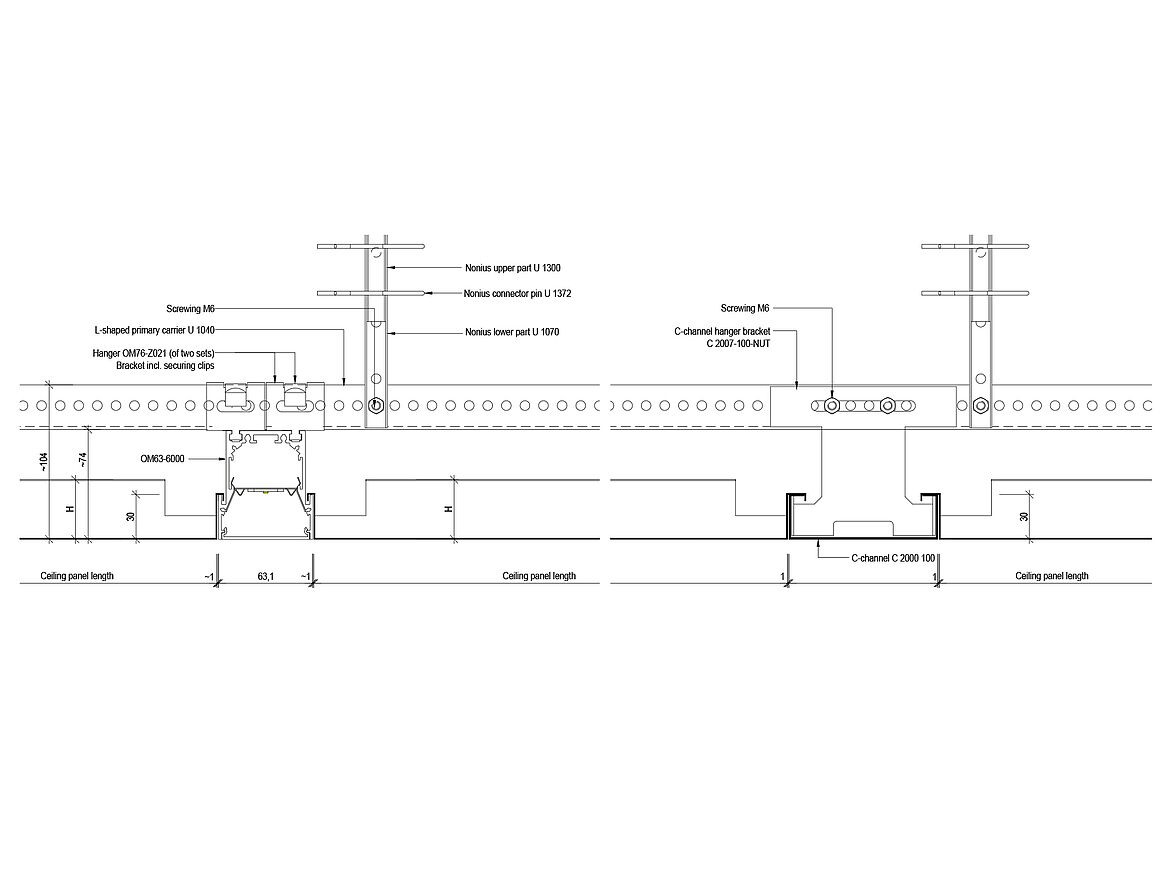

S-OMEGA 63 ceiling and lighting system
Dimensions and luminaire details
Panel length: ≤3500mm
Panel width: ≤1300mm
Recommended panel area: ≤3m²
Light colour: 3000K, 4000K, CRI>90
Lighting channel: W=63mm, H=73mm, L=max. 6000mm endlessly installable
Luminaire insert: L=1120mm or 2240 mm. Other lengths available upon request
Power: 30W/m
Luminaire output: 3807lm/m (3000K) | 4084lm/m (4000K)
Dimmability: DALI dimmable
Driver: integrated
Power supply: 230V/50Hz
Protection system: IP 20
Protection class: I
Material and surface
Rectangular metal panel: Galvanised steel plate with powder coating. Aluminium with powder coating, coil anodised or mirror polished. Stainless steel brushed or mirror polished.
Standard powder coating: White (RAL 9016 matt DUROPLAN Type 1). Coat thickness: 60 microns Other powder coatings are possible.
Printing
Powder-coated cut sections, also printable with motifs and textures
Lighting channel: Anodised aluminium profile, opal acrylic glass cover.
Acoustics and perforation
Standard perforation on rectangular metal panel: RG-L15. As standard, sound absorption with black durlum acoustic fleece [αw=approx. 0.73]. Other perforations and absorption materials are possible.
Fire behaviour
Rectangular metal panel: Smooth or perforated as standard: Non-combustible DEFEO with fire protection classification A2-s1.dO
Made of steel plate: Optional DEFEO PLUS [A1]

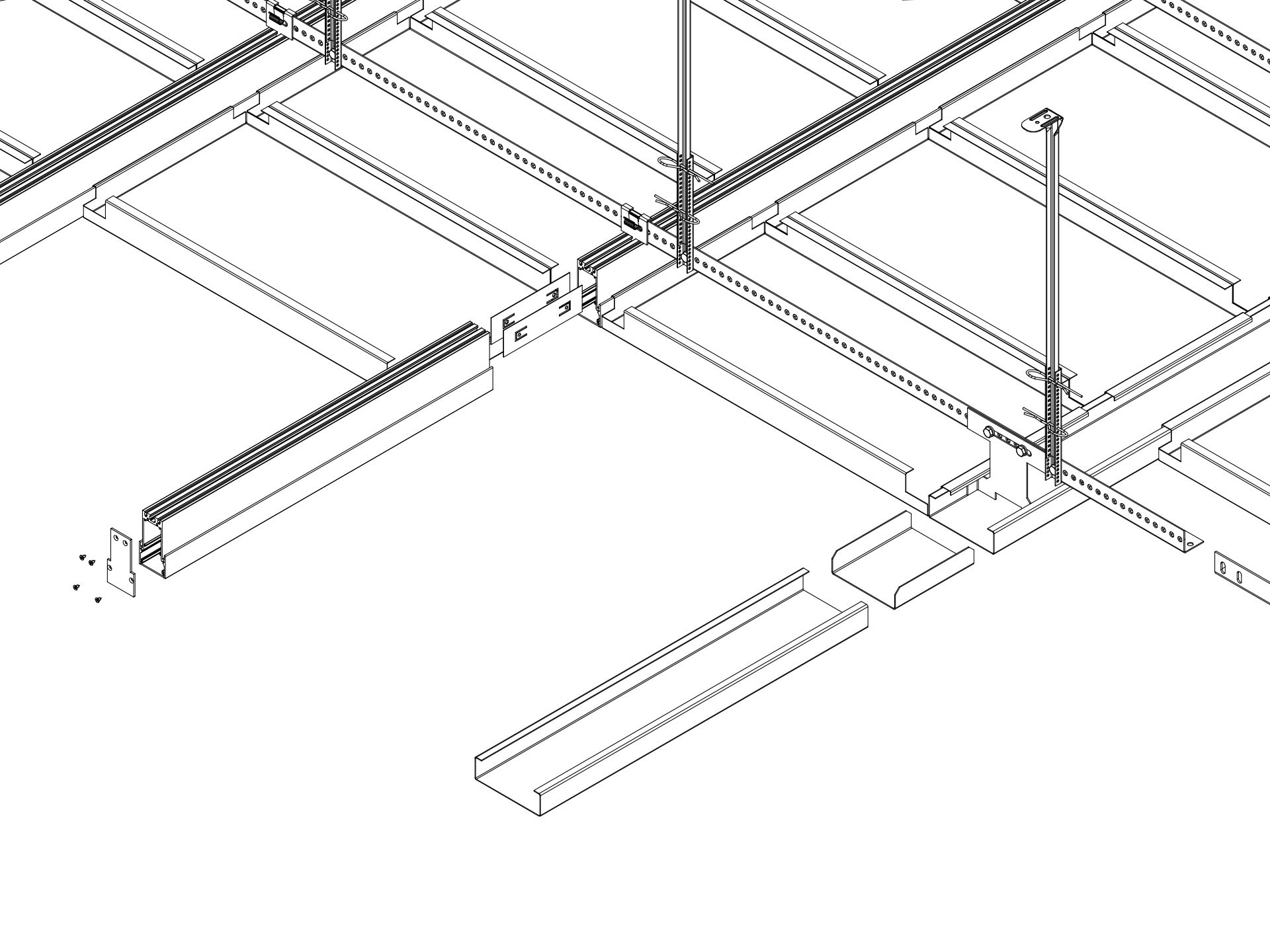

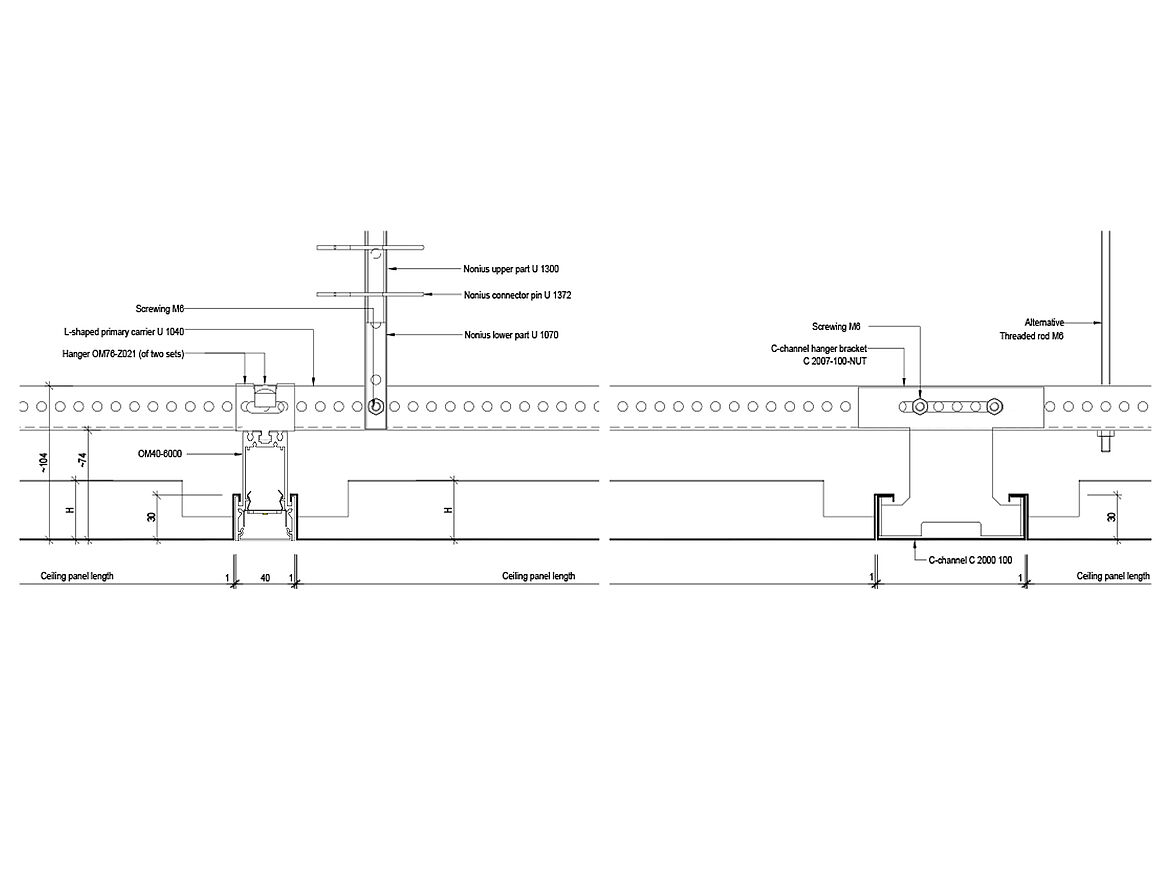

S-OMEGA 40 ceiling and lighting system
Dimensions and luminaire details
Panel length: ≤3500mm
Panel width: ≤1300mm
Recommended panel area: ≤3m²
Light colour: 3000K, 4000K, CRI>90
Lighting channel: W=40mm, H=73mm, L=max. 6000mm endlessly installable
Luminaire insert: L=1120mm or 2240mm. Other lengths available upon request
Power: 26W/m
Luminaire output: 3195lm/m (3000K) | 3428lm/m (4000K)
Dimmability: DALI dimmable
Driver: integrated
Power supply: 230V/50Hz
Protection system: IP 20
Protection class: I
Material and surface
Rectangular metal panel: Galvanised steel plate with powder coating. Aluminium with powder coating, coil anodised or mirror polished. Stainless steel brushed or mirror polished.
Standard powder coating: White (RAL 9016 matt DUROPLAN Type 1). Coat thickness: 60 microns Other powder coatings are possible.
Option of bespoke printing of ceiling panels with motifs and textures.
Lighting channel: Anodised aluminium profile cover PMMA opal. Other lighting technologies are available.
Acoustics and perforation
Standard perforation on rectangular metal panel: RG-L15. As standard, sound absorption with black durlum acoustic fleece (αw = approx. 0.73). Other perforations and absorption materials are possible.
Fire behaviour
Rectangular metal panel: Smooth or perforated as standard: Non-combustible DEFEO with fire protection classification A2-s1.dO
Made of steel plate: Optional DEFEO PLUS [A1]
