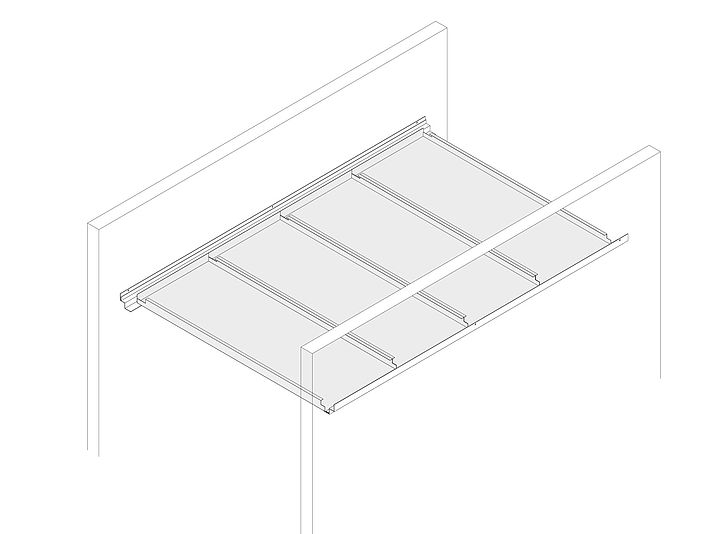

FF025 and FF2025 lay-in systems

Metal ceiling system with and without shadow gap

The two metalceiling systems FF025 and FF2025 are specifically suited to vestibules. They are distinguished visually by a slight height offset between panel and visible, F-shaped perimeter trims. Optionally, the vestibule system can be provided with a visible shadow gap (FF2025). The substructure is visible on the insert systems.

  • Optionally available with cooling meanders as a cooling ceiling
  • Can be dismantled easily

Technical Information


Length: ≤ 3500 mm
Width: ≤ 1300 mm
Recommended surface area: ≤ 2.5 m²

Material and surface

Galvanised steel plate, aluminium: standard powder coating, white (RAL 9016 matt DUROPLAN Type 1). Coat thickness: 60 microns Other powder coatings are possible.
Aluminium: coil anodised or mirror polished.
Stainless steel: brushed or mirror polished.

Acoustics and perforation

Standard perforation: RG-L15. Other perforations are possible.
As standard, sound absorption with black acoustic fleece (αw=0,70; NRC=0,70)


Powder-coated cut sections, also printable with motifs and textures

Fire behaviour

Standard, smooth or perforated: A2-s1.dO to EN13501-01 (non-combustible)
